Product Details:
|
| Type: | Impregnated Diamond Core Bit | Size: | BTW |
|---|---|---|---|
| Color: | Green | Matrix Hardness: | F1~F18 |
| Brand: | Sinocoredrill | HS Code: | 820719 |
| Use: | Core Drilling | Material: | Diamond,High Carbon Steel |
| Application: | Concrete Etc.,stone,Reinforced Concrete,limestone,marble Granite Title | Product Name: | Diamond Core Drill,diamond Tools Cutting Bit |
| High Light: | btw impregnated diamond bit,btw diamond core bit,sinocoredrill diamond core bit |
||

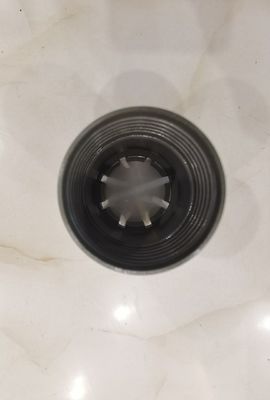

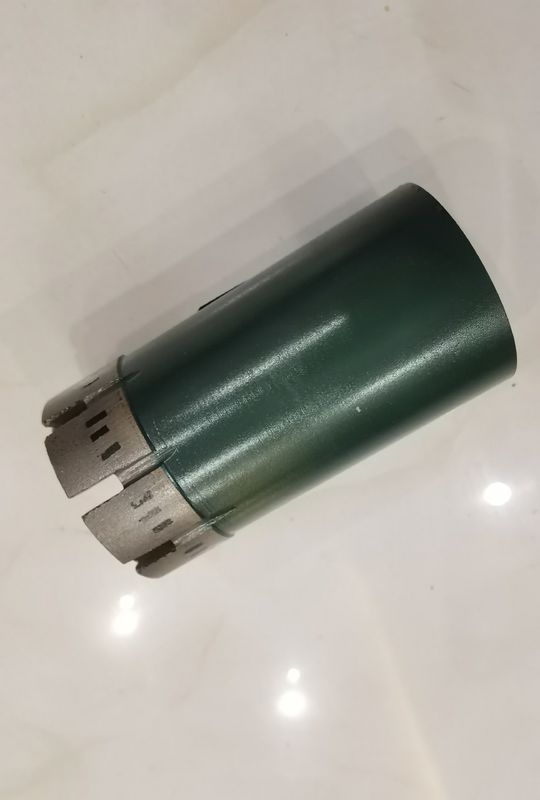

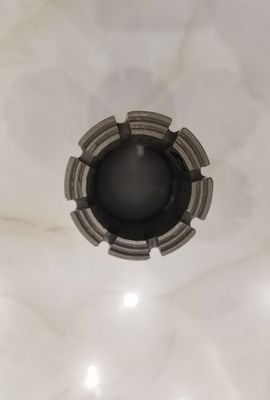

BTW Thin wall thickness Impregnated diamond core bit Better Transparency
Product Advantages:
Description:
Impregnated Diamond Core Bit is made with high quality synthetic diamonds, mixed evenly through a metal alloy matrix. It can drill various formations from the softest to hardest rocks.
Thin kerf bits provide a larger core size for the same diameter hole and ensure higher penetration rate. TW series of bits are especially suitable for portable and underground rig drilling, which could increase the penetration rate , drill depth ability and reduce the weight of ITH systems.
Specifications
| Diamond core drill bits and diamond non-core drill bits Specifications | |
| A-Gauge Core Bits: | A, A-RSG, AWG(AX), AWM, AWT, LTK48 |
| B-Gauge Core Bits: | B, B-RSG, B-2.400, B3, BWG(BX), BWM, BWT, LTK60, TBW |
| N-Gauge Core Bits: | N, NMLC, NWG(NX), NWM, NWT, TNW |
| H-Gauge Core Bits: | N, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT |
| P- Gauge Core Bits: | P, P3, PWF-Long, PWF-Short |
| T, TT, T2 &TB Series Metric Core Bits: | T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76,T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline |
| T6 Series Metric Core Bits: | T6-76, T6-86, T6-101, T6-116, T6-131, T6-146 |
| T6S Series Metric Core Bits: | T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146 |
| Q Series: | AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT |
| T2 Series: | T2 46, T2 56, T2 66, T2 76, T2 86, T2 101 |
| T6 Series: | T6 76, T6 86, T6 101, T6 116, T6 131, T6 146, T6S 101 |
| T Series: | T36, T46, T56, T66, T76, T86 |
| Z Series: | Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146 |
| B Series: | B36, B46, B56, B66, B76, B86, B101, B116, B131, B146 |
| WF Series: | HWF, PWF, SWF, UWF, ZWF |
| WT Series: | RWT, EWT, AWT, BWT, NWT, HWT |
| WM Series: | EWM, AWM, BWM, NWM |
| WG Series: | EWG, AWG, BWG, NWG, HWG |
| Others: | NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TB56, TS116, CHD101. |
| Customized standard | CDDA, DCAMA, Crealius, and ISO sizes . |
