Product Details:
|
| Material: | Natural Diamond | Size: | HQ |
|---|---|---|---|
| Crown: | Multiple | Waterways: | Standard /Face Discharge /Turbo /Spiral |
| Thread: | DCDMA Standard | Color: | Green |
| Applicaion: | All Conventional And Wireline Core Barrel | Use: | Mining Exploration Diamond Drilling |
| Height: | 12mm 16mm 25mm | ||
| High Light: | hq pcd core bit,dcdma pcd core bit,hq diamond core bit |
||

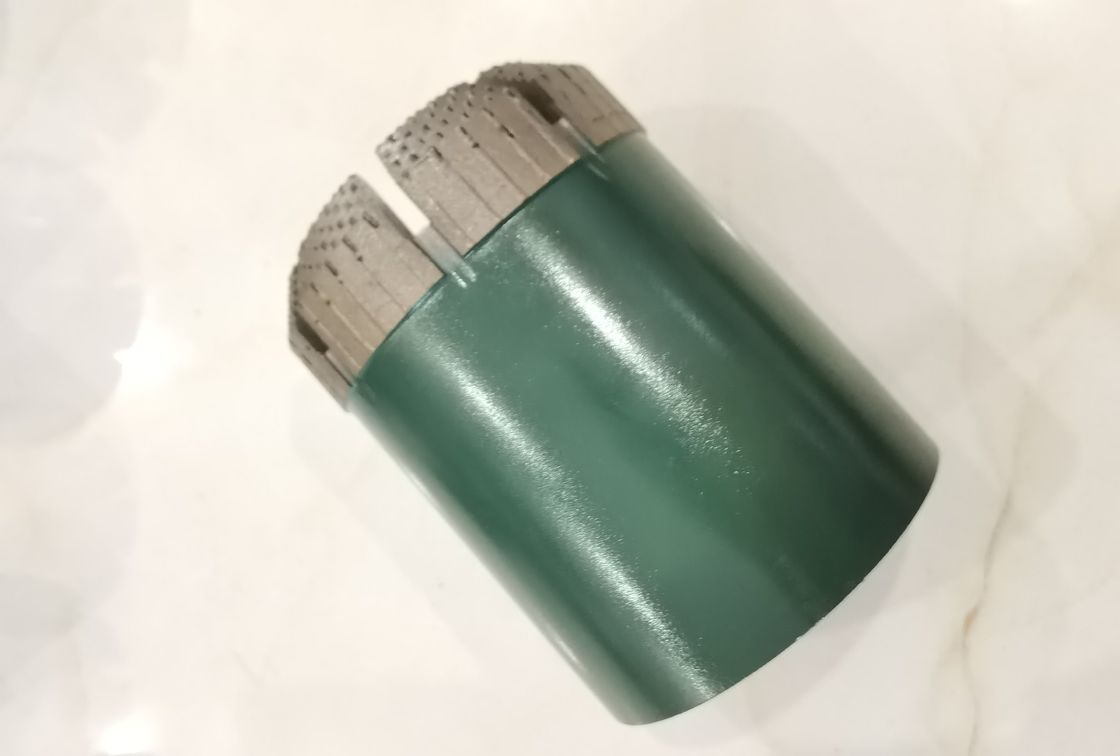

Surface set multi-step PCD diamond core bit High Grade Diamond
Product Advantages:
Descriptions:
Surface set bits are still a favoured alternative for softer formations, or in highly abrasive ground where the balance in an impregnated bit between matrix erosion and diamond wear would be upset by the aggressive rock conditions.

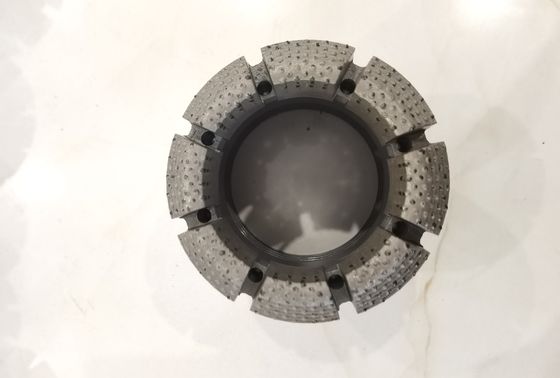

The core drill bit with natural-surface set is mainly used to drill relatively complete medium to high -hard formulations. There are 15 to 100 diamonds set on the matrix surface.
It's mainly made up of particles of diamonds, steel body and carbide powder. And the diamonds are utilized for making complex shapes of drill bits.
Specifications
| ITEM | DIAMOND BIT | REAMING SHELL | |||||
| "Q" Series Wireline |
Size | Bit-set OD | Bit-set ID | ||||
| mm | inch | mm | inch | mm | inch | ||
| AQ | 47.60 | 1.88 | 26.97 | 1.06 | 48.00 | 1.89 | |
| BQ | 59.50 | 2.35 | 36.40 | 1.43 | 59.90 | 2.36 | |
| NQ | 75.30 | 2.97 | 47.60 | 1.88 | 75.70 | 2.98 | |
| HQ | 95.58 | 3.77 | 63.50 | 2.50 | 96.00 | 3.78 | |
| PQ | 122.00 | 4.80 | 84.96 | 3.35 | 122.60 | 4.83 | |
| Swedish Metric T2 Series |
36 | 36.0 | 1.417 | 22.0 | 0.866 | 36.3 | 1.429 |
| 46 | 46.0 | 1.811 | 32.0 | 1.260 | 46.3 | 1.823 | |
| 56 | 56.0 | 2.205 | 42.0 | 1.654 | 56.3 | 2.217 | |
| 66 | 66.0 | 2.598 | 52.0 | 2.047 | 66.3 | 2.610 | |
| 76 | 76.0 | 2.992 | 62.0 | 2.441 | 76.3 | 3.004 | |
| 86 | 86.0 | 3.386 | 72.0 | 2.835 | 86.3 | 3.398 | |
| 101 | 101.0 | 3.976 | 84.0 | 3.307 | 101.3 | 3.988 | |
| Swedish T Series |
TAW | 47.6 | 1.875 | 23.2 | 1.31 | 48.0 | 1.89 |
| TBW | 59.5 | 2.345 | 44.9 | 1.77 | 59.9 | 2.36 | |
| TNW | 75.3 | 2.965 | 60.5 | 2.38 | 75.7 | 2.98 | |
Wireline core drilling products:
Geological Core Bits:
Impregnated Bit(T2-76/86/101,etc; BQ,HQ,NQ,PQ,etc)
Surface Bit(T2-76/86/101,etc; BQ,HQ,NQ,PQ,etc)
Reaming Shell(T2-76/86/101,etc; BQ,HQ,NQ,PQ,etc)
Core Barrels & spare parts:
core lifters, core lifter cases, stop rings, landing rings, landing shoulders, inner tube stabilizers, locking couplings, adaptor couplings,
inner tube and outer tubes wrenches, head assembly, Core Barells,
