AX Surface Set Natural Diamond Reaming Shells Waterproof

AX Surface Set Natural Diamond Reaming Shells Waterproof
AX Surface Set Natural Diamond Reaming Shells Waterproof AX Surface Set Natural Diamond Reaming Shells Waterproof

Large Image :  AX Surface Set Natural Diamond Reaming Shells Waterproof

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE ISO9001
Model Number: AX
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: 3~5 Days
Payment Terms: T/T, L/C
Supply Ability: Based on Detailed Order

AX Surface Set Natural Diamond Reaming Shells Waterproof

Description
Type: Surface Set Size: AX
Color: Black Brand: SINOCOREDRILL
Application: For Drill Bit HS Code: 8207191
Material: Diamond Carbon Steel
High Light:

ax reaming shells

,

sinocoredrill reaming shells

AX Surface Set Natural Diamond Reaming Shells Waterproof




Description:

Reamer is set with natural or synthetic diamond,and it is used to couple the dril bit with the core barrel. Its main function is to ream the hole to the correct comstant specific diameter which ensures adequate clearance for the core barrel and sufficient clearance for the new bit which replaces an old one.It also acts as a stabilizer for drill bit.

Surface set reaming shells are set natural diamonds outside of the shells, generally, with the stone size 20/30. The rock cutters are flushed smoothly as the well design of the waterways.
Usually, we can make two types of Surface Set Reaming Shell, one is Spiral Rib Type, another is Spiral Segments Type.


Reaming Shells are used together with Core Bits, maintaining the hole size and improving drilling stability.


 Specifications:

Core bits Reaming Shell
Size O.D (mm) I.D(mm) Size Set Diameter(mm)
AQ 47.75/47.50 27.10/26.85 AQ 48.13/47.88
AWG(AX) 47.75/47.50 30.23/29.97 AWG(AX) 48.13/47.88
AWM 47.75/47.50 30.23/29.97 AWM 48.13/47.88
BQ 59.69/59.44 36.52/36.27 BQ 60.07/59.82
BQ3 59.69/59.44 33.65/33.40 BQ3 60.07/59.82
BWG(BX) 59.69/59.44 42.16/41.91 BWG(BX) 60.07/59.82
BWM 59.69/59.44 42.16/41.91 BWM 60.07/59.82
NQ 75.44/75.19 47.75/47.50 NQ 75.82/75.57
NQ2 75.44/75.19 50.80/50.55 NQ2 75.82/75.57
NQ3/NQTT 75.44/75.19 45.21/44.96 NQ3/NQTT 75.82/75.57
NWG(NX) 75.44/75.19 54.86/54.61 NWG(NX) 75.82/75.57
NWM 75.44/75.19 54.86/84.61 NWM 75.82/75.57
NMLC 75.44/75.19 52.12/51.87 NMLC 75.82/75.57
HQ 95.76/95.38 63.63/63.38 HQ 96.27/95.89
HQ3/HQTT 95.76/95.38 61.24/60.99 HQ3/HQTT ---
HWG(HX) 98.98/98.60 76.33/76.08 HWG(HX) 99.36/99.11
HMLC 98.98/98.96 63.63/63.38 HMLC 98.20/97.80
PQ 122.30/121.80 85.09/84.84 PQ 122.81/122.43
PQ3 122.30/121.80 83.18/82.93 PQ3 122.81/122.43
T2-76 76.12/75.87 61.82/61.57 T2-76 76.50/76.20
T2-101 101.12/100.80 83.82/83.57 T2-101 101.50/101.20

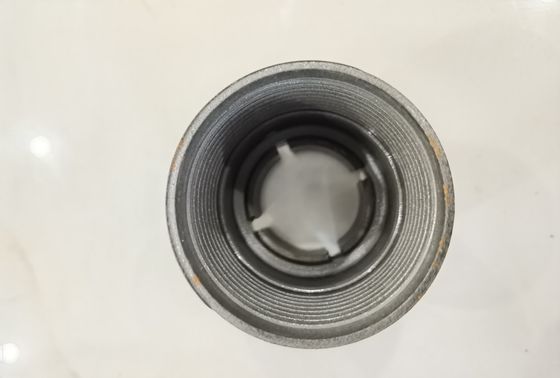

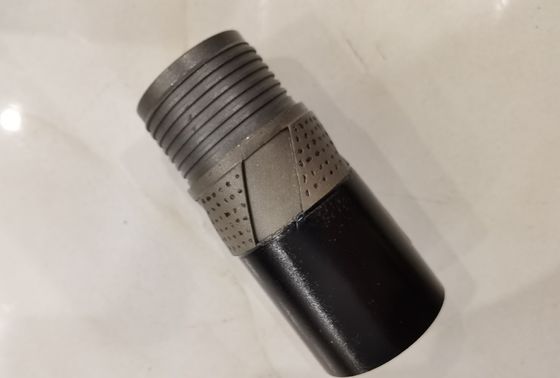

AX Surface Set Natural Diamond Reaming Shells Waterproof 0AX Surface Set Natural Diamond Reaming Shells Waterproof 1
