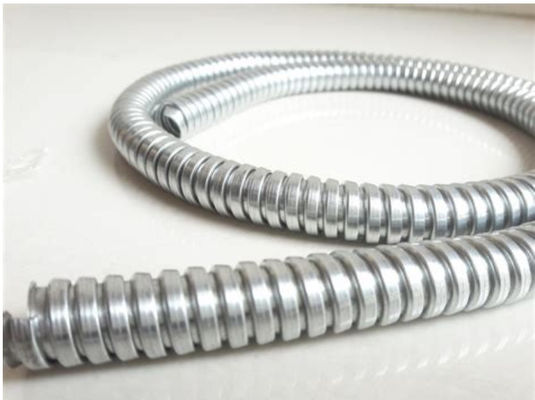

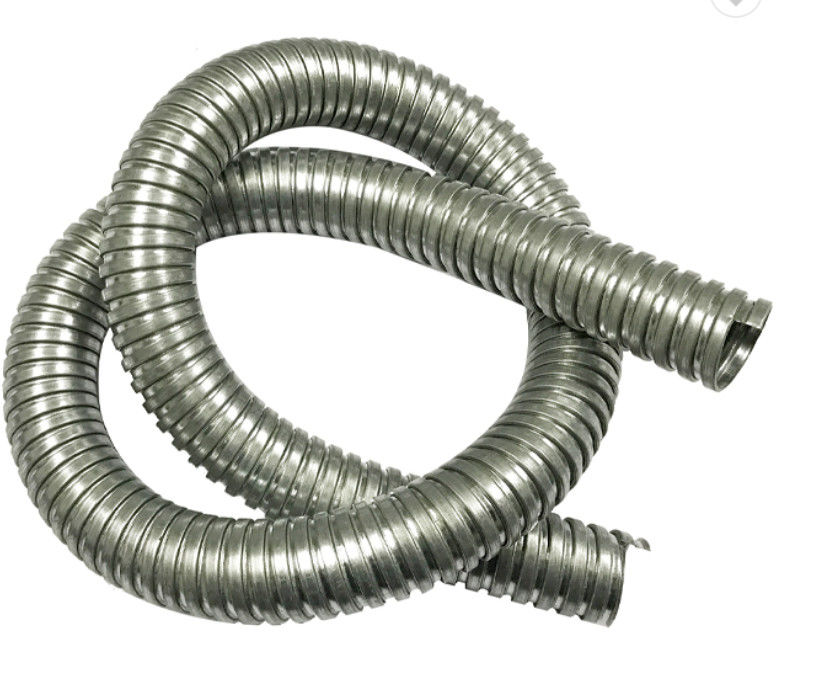

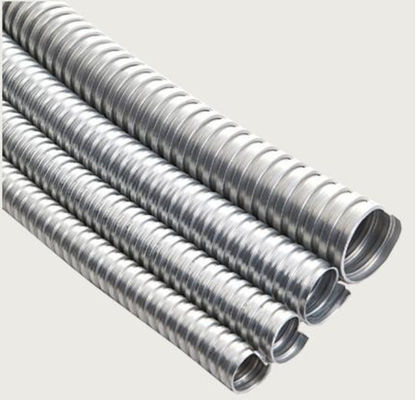

Ul Listed 1/2-4" Reduced Wall Aluminum Flexible Conduit

Ul Listed 1/2-4" Reduced Wall Aluminum Flexible Conduit
Ul Listed 1/2-4" Reduced Wall Aluminum Flexible Conduit Ul Listed 1/2-4" Reduced Wall Aluminum Flexible Conduit Ul Listed 1/2-4" Reduced Wall Aluminum Flexible Conduit Ul Listed 1/2-4" Reduced Wall Aluminum Flexible Conduit

Large Image :  Ul Listed 1/2-4" Reduced Wall Aluminum Flexible Conduit

Product Details:
Place of Origin: CHINA

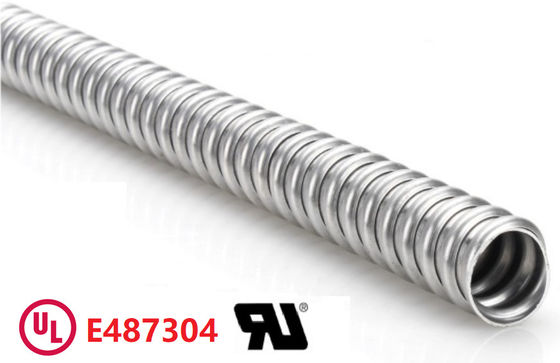

Certification: UL listed : 1/2”~ 4”/ UL E487304
Model Number: 9502 / 9503 / 9504 /9505 /9506 /9507 /9509 /9511
Payment & Shipping Terms:
Minimum Order Quantity: N/M
Price: Negotiable
Packaging Details: Standard Export Pacakge
Delivery Time: Negotiable
Payment Terms: L/C, T/T
Supply Ability: Negotiable

Ul Listed 1/2-4" Reduced Wall Aluminum Flexible Conduit

Description
Material: High Strength Aluminum Alloy ,66% Lighter Than Steel Type: Reduced Wall Aluminum Flexible Conduit
Structure: Square-lock Provides Mechanical Protection For Conductors And Cable Temperature Range: -50℃~+200℃
IP Class: IP 40 Certificate: UL Listed : 1/2”~ 4”
Flexibility: High RoHS: YES
High Light:

ul listed aluminum flex conduit

,

1/2" aluminum flexible conduit

,

4" aluminum flexible conduit

High Strength Aluminum Alloy Reduced Wall Aluminum Flexible Conduit





Introduction :



We have been engaged in flexible conduit since 1999.Our company credit level is AAA. All of our products have UL license.We hope to co-operate with more customers around the world.We hope and believe our co-operation will develop bright future for both. We are manufacturers of Aluminum/Steel Flexible Conduit for cable or wire. We also support customer made products.

UL listed in sizes 1/2” to 4”. It is manufactured with a lightweight , high strength aluminum alloy. Metal strip is helically formed into continuously interlocked flexible metal conduit that can withstand impact and crushing forces.



Ul Listed 1/2-4" Reduced Wall Aluminum Flexible Conduit 0

Product features:

  • Structure: Square-lock Provides mechanical protection for conductors and cable
  • For use with listed connectors intended for NEC Type FMC (flexible metal conduit)
  • Material:high strength aluminum alloy, 66% lighter than Steel
  • Cut 80% faster than steel
  • Smooth interior for easy wire pulling
  • Superior corrosion resistance
  • Built in flexibility for simplified positioning
  • Temperature range: -50℃~+200℃
  • IP Class: IP 40
  • Flexibility: High
  • RoHS: YES
  • Certificate: UL listed : 1/2”~ 4”



Applications:

  • Environmental air-handling spaces per NEC 300.22(c)
  • Power and lighting branch circuit conductors and cables for connecting receptacles, luminaires, equipment, office partitions etc.
  • Metal raceway for wires and cables per NEC (ANSI/NFPA-70) Article 348
  • Motor feeder, branch, and control circuit conductors and cables
  • Class 1, Class 2, Class 3 Remote control ,signaling, and power-limited circuit conductors and cables
  • Listed wired fixtures per NEC410.77(c)
  • Voice, data, communications and video cables including CATV and optical fiber cables



 Standards & References:



     Our Reduced Wall Aluminum Flexible Conduit meets or exceeds the following requirements

  • UL listed per UL 1, Standard for safety for flexible metal conduit, ANSI/UL-1
  • Meets federal specification WWW-C-566c
  • NEC Type Designation- Article 348, Type FMC (flexible metal conduit)
  • UL Product Category –DXUZ
  • Reach/RoHS-2 (Chemical Limit) Compliant



Specifications (Reduced Wall Aluminum Flexible Conduit)



Model Size Inch (”) Inner diameter Outer Diameter



Packing/Roll

(Feet/M)

Min. Max. Min. Max.
Inch mm Inch mm Inch mm Inch mm
9502 1/2” 0.625 15.87 0.645 16.38 0.860 21.84 0.920 23.36 100ft/30.5M
9503 3/4” 0.812 20.62 0.835 21.20 1.045 26.54 1.105 28.06 100ft/30.5M
9504 1” 1.000 25.4 1.040 26.40 1.300 33.02 1.380 35.05 50ft/15.3M
9505 1-1/4” 1.250 31.75 1.300 33.02 1.550 39.37 1.630 41.40 50ft/15.3M
9506 1-1/2” 1.500 38.10 1.575 40.01 1.850 46.99 1.950 49.53 50ft/15.3M
9507 2” 2.000 50.80 2.080 52.83 2.350 59.69 2.450 62.23 25ft/7.6m
  2-1/2” 2.500 63.50 - - 2.860 72.64 3.060 77.72 25ft/7.6m
9509 3” 3.000 76.20 - - 3.360 85.34 3.560 90.42 25ft/7.6m
  3-1/2” 3.500 88.90 - - 3.860 98.04 4.060 103.12 25ft/7.6m
9511 4” 4.000 101.60 - - 4.360 110.74 4.560 115.82 25ft/7.6m





Production Processing



Ul Listed 1/2-4" Reduced Wall Aluminum Flexible Conduit 1Ul Listed 1/2-4" Reduced Wall Aluminum Flexible Conduit 2Ul Listed 1/2-4" Reduced Wall Aluminum Flexible Conduit 3



Certificate





Ul Listed 1/2-4" Reduced Wall Aluminum Flexible Conduit 4
