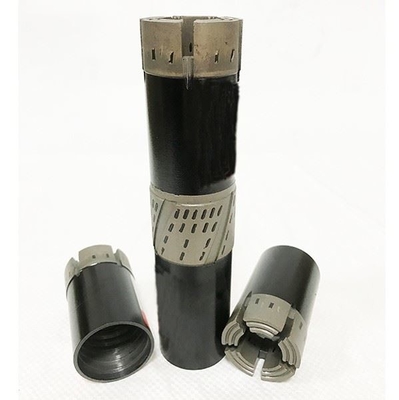

Synthetic Diamond Wireline AQ AWL PCD Reaming Shell DCDMA Standard

Synthetic Diamond Wireline AQ  AWL PCD Reaming Shell DCDMA Standard
Synthetic Diamond Wireline AQ  AWL PCD Reaming Shell DCDMA Standard

Large Image :  Synthetic Diamond Wireline AQ AWL PCD Reaming Shell DCDMA Standard

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: ISO9001
Model Number: AQ AWL
Payment & Shipping Terms:
Minimum Order Quantity: N/M
Price: BASED ON DETAILED ORDER
Packaging Details: Stadnard Export
Delivery Time: 1 WEEK
Payment Terms: L/C, T/T
Supply Ability: 1000/ MONTH

Synthetic Diamond Wireline AQ AWL PCD Reaming Shell DCDMA Standard

Description
TYPE: AQ Impregnated Diamond Reaming Shell / AWL Reamer SIZE: AQ AWL
MATERIAL: Synthetic Diamond PCD Outside Diameter:: 1.89" / 48.01mm
Standard: DCDMA, Equivalent To Boart Longyear And Atlas, Epiroc Color: Black
HS Code: 820719 Application: Core Drilling Exploration
High Light:

Synthetic Diamond Reaming shell

,

AWL Reaming shell

,

DCDMA Reaming shell

China Synthetic Diamond Wireline Reamer AQ /AWL PCD Reaming shell DCDMA Standard



Description: AQ impregnated diamond reaming shell / AWL reamer
Outside Diameter: 1.89" / 48.01mm
Standard: DCDMA, equivalent to Boart Longyear and Atlas, Epiroc
Types: impregnated diamond, surface set diamond
MOQ: 1PC
Certification: ISO 9001




Diamond reaming shell are important tools to be used together with bits.

Main functions :

  1. Maintaining borehole gage.

  2. Improving drill string stability and protecting lower drill string from excessive wear.

  3. Helical type reaming shell provides a good passage for drilling fluids.

  4. The matrix is wear proof and its service life is long.

We provide both impregnated and surface set reaming shells with competitive price.







Size Outer Diameter
(in.) (mm)
AQ 1.895 48.1
BQ 2.365 60.1
NQ 2.985 75.8
HQ 3.782 96.1
PQ 4.835 122.8
NQ3 2.985 75.8
HQ3 3.782 96.1
PQ3 4.835 122.8





Sizes Available
Wireline series
Geobor S, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76
T2 / T series
T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86
TT series
TT 46, TT 56
T6 series
T6 76, T6 86, T6 101, T6 116, T6 131, T6 146
T6S series
T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146
B series
B46, B56, B66, B76, B86, B101, B116, B131, B146
MLC series
NMLC, HMLC, 3C, 4C, 6C, 8C
LTK series
LTK48, LTK60
WF series
HWF, PWF, SWF, UWF, ZWF
WT series
RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube)
WG series
EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube)
WM series
EWM, AWM, BWM, NWM, HWM
Other sizes
AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW, T6H, SK6L
Chinese standard
56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm
Russian standard
59, 76, 93, 112, 132, 152 mm
Special sizes can also be made as per request.





Drilling Steps:

1. To mount drill rods, bits, and core barrel etc drilling tools with a diamond drill rig.

2. To utilize a diamond drill bit attached to the end of drill rods to cut a cylindrical core of solid rock.

3. To retrieve the core samples to the surface by retracting the winch cable which located on the top end of the core barrel, lowered inside the rod string.

4. To remove the core sample from the core barrel, break it into small pieces to make it fit into the sample trays and catalogue.
