Exploration Geological Single Link Diamond Core Bit Tanged Locking Couplings BQ NQ HQ PQ

Brand Name:	SINOCOREDRILL
Model Number:	BQ NQ HQ PQ
MOQ:	N/M
Price:	Negotiable
Packaging Details:	Sea Worthy Package
Payment Terms:	T/T, L/C, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001-2000

Material:

Synthetic Diamond, Natural Diamond

Available Size:

Q Series,

Type:

Tanged Locking Couplings

Waterways:

Standard /Face Discharge /Turbo /Spiral

Thread:

DCDMA Standard

Color:

Black

Applicaion:

All Conventional And Wireline Core Barrel

Mining Exploration Diamond Drilling

820719

Highlight:

tanged Locking Couplings Diamond Core Bit

Exploration Geological Diamond Core Bit

BQ single link core bit

Product Description

Exploration Geological Coring Single Link Natural Diamond Tanged Locking Couplings BQ NQ HQ PQ

Diamond Locking coupling is the part of the core barrel that is found on the upper part of the outer tube. The locking coupling adapts the core barrel outer tube to the drill rods and locks the head assembly to the outer tube so that the head assembly turns with the outer tube when drilling. It also stabilizes the upper section of the core barrel, minimizing hole deviation and some types can protect the hole diameter if the reaming shell loses its gauge.

The primary function of the locking coupling is to lock the inner tube into position for core retrieval, it also acts as a backup for stabilization. The supporting pads provide maximum stability to the core barrel while the waterway design optimizes flushing to the bit.

Wireline core barrels eliminate the major time consuming operation of using standard double tube core barrels – pulling, stacking and lowering drill rods each time the core barrel is full.

Using a wireline system, core is recovered quickly by retrieving the core-laden inner tube directly through the drill string. The rods remain in the hole until the bit needs to be replaced. This has major cost advantages when drilling deep holes for mineral exploration.

These core barrels are available in industry standard hole sizes A, B, N, H and P. All parts are fully interchangeable with most other manufacturers’ wireline core barrels. Special requirements can also be met on request.

Item	Description	Length
1	NWL Head Assembly
2	NWL Inner Tube	5 ft.
2	NWL Inner Tube	10 ft.
3	Stop Ring
4	Core Lifter Hardened
5	Core Lifter Case
6	Locking Coupling NWL
7	Adapter Coupling
8	Landing Ring
9	Outer Tube	5 ft.
9	Outer Tube	10 ft.
10	Inner Tube Stabilizer

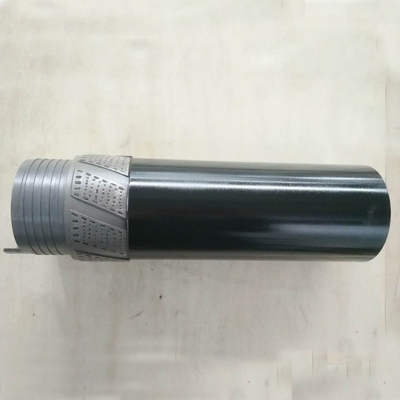

Exploration Geological Single Link Diamond Core Bit Tanged Locking Couplings BQ NQ HQ PQ 0

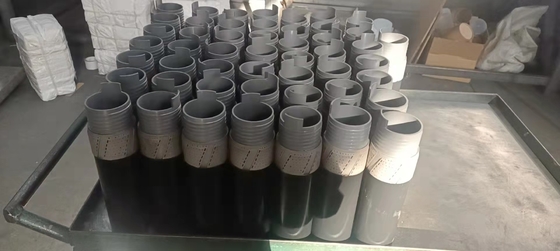

Exploration Geological Single Link Diamond Core Bit Tanged Locking Couplings BQ NQ HQ PQ 1

Exploration Geological Single Link Diamond Core Bit Tanged Locking Couplings BQ NQ HQ PQ 2
