Product Details:
|
TYPE: | LINK LATCH HEAD ASSEMBLY | MODEL: | BWL NWL HWL PWL |
---|---|---|---|
Material: | Alloy Steel | HOLE DIAMETER: | 76MM |
CORE DIAMETER: | 47.6MM | HS CODE: | 820719 |
Highlight: | HTW diamond core barrel,NTW diamond core barrel,Backend Efficient drilling core barrel |

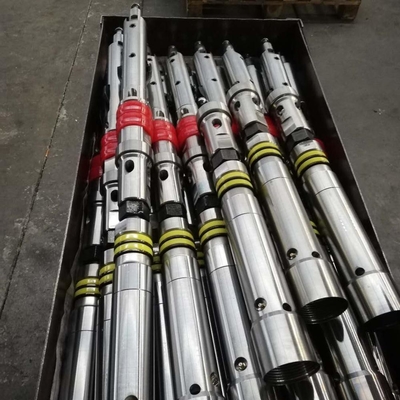

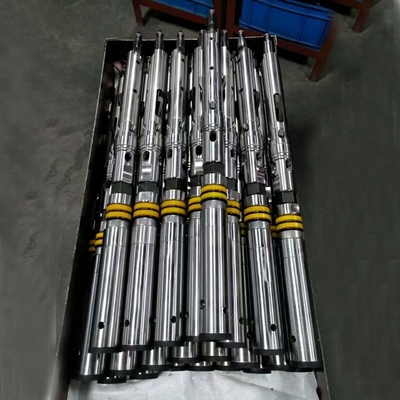

BTW NTW HTW Wireline Core Baarrel, Backend Efficient Wireline Surface Head Assembly
Wireline drilling is the special method of removing the core. When the driller wants to remove core from a conventional core drill, the entire core barrel has to be removed from the hole. This is time-consuming, as each rod has to be removed one at a time. With wireline drilling, a barrel of core can be removed from the bottom of the hole without removing the rod string. When the driller wants to remove the core, an overshot is lowered on the end of a wireline. The overshot attaches to the back of the core barrel inner tube and the wireline is pulled back and the inner tube disengages itself from the barrel.
Core sizes:
Double tube surface | ||||
Size(surface exploration drill) | Metric system(mm) | Imperial system(in) | ||
Hole diameter | Core diameter | Hole diameter | Core diameter | |
BQ | 60 | 36.4 | 2.36 | 1.43 |
NQ | 75.7 | 47.6 | 2.98 | 1.88 |
HQ | 96.1 | 63.5 | 3.78 | 2.5 |
PQ | 122.7 | 85 | 4.83 | 3.34 |
Triple tube surface | ||||
NQ3 | 75.7 | 45 | 2.98 | 1.78 |
HQ3 | 96.1 | 61.1 | 3.78 | 2.41 |
PQ3 | 122.7 | 83 | 4.83 | 3.27 |
Series | Model | Drill bit (mm) | Reamer | Outer tube | Inner tube | Unit weight | |||
Inner diameter | Outer diameter | Outer diameter | Outer diameter | Inner diameter | Outer diameter | Inner diameter | Kg/set | ||
C-Q series core barrel | BQ | 59.5 | 36.5 | 60 | 57.2 | 46 | 42.9 | 38.1 | 45 |
NQ | 74.6 | 47.6 | 75.8 | 73 | 60.3 | 55.6 | 50 | 65 | |
HQ | 95.6 | 63.5 | 96 | 92.1 | 77.8 | 73 | 66.7 | 105 | |
PQ | 122 | 85 | 122.6 | 118 | 103 | 95.3 | 88.9 | 150 |
Advantages:
1. Faster coring at greater depths
2. Good stability due to constant diameter of the drill string
3. Excellent hydraulics
4. Good core recovery
Wireline double core barrel consists of:
1. Head Assembly
2. Inner Tube: 1.5m or 3.0m
3. Stop Ring
4. Core Lifter
5. Core Lifter Case
6. Locking Coupling
7. Adapter Coupling
8. Landing Ring
9. Outer Tube: 1.5m or 3.0m
10. Inner Tube Stabilizer
11. Thread Protector
SIZE:
Wireline series: Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3, WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76
T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
TT series: TT 46, TT 56
T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146
T6S series: T6S 76, T6S 86, T6S 116, T6S 131, T6S 146
B series: B46, B56, B66, B76, B86, B101, B116, B131, B146
MLC series: NMLC, HMLC
LTK series: LTK48, LTK60
WF series: HWF, PWF, SWF, UWF, ZWF
WT series: RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube)
WG series: EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube)
WM series: EWM, AWM, BWM, NWM, HWM
Other sizes: AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW
Chinese standard: 56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm
Our Services:
Ø Provide the technical design and solutions;
Ø Designing and manufacturing of non-standard equipment;
Ø Professional technical training and guidance on site according to the contract;
Ø Supply accessories at any time;
Ø Tele-technical consulting and services;
Ø Other special technical service according to client's requirements.
We specialized in producing of varies diamond drilling tools, such as impregnated/surface-set diamond core bits, diamond casing shoes, diamond rod shoes, reaming shells, TC core bits/casing shoes/TC rod shoes, PDC bits, Thin Wall Bits, core lifters, core lifter cases, core barrels, and kinds of drilling rigs etc.
With ISO certificate & quality control.
We are a leading company of C-Q series core barrel in China. Besides C-Q series core barrel, we still supply clients worldwide with China overshot assembly, hoisting plug, foot clamp, circle wrench, and so on. Both ISO9001: 2000 and CE certificates are available for our products, and our products have been quite popular among clients from Mongolia, Kazakhstan, Russia, Iran, Afghanistan, Oman, Turkey, Thailand, Vietnam, Myanmar, Malaysia, Indonesia, Singapore, Taiwan, Colombia, Mexico, Brazil, Canada, Australia, etc. Besides, OEM service is also available. If you need, please contact us freely.
