Product Details:
|
| Features: | High Penetration Rate, High Speed,High Performance | Material: | Diamond |
|---|---|---|---|
| Type: | Impregnated Diamond Core Bits | Use: | Mineral Exploration,Mineral Exploration |
| Product Name: | Core Drill Bits | Crown Height: | 9mm, 12mm, And 16mm |
| Matrix Hardness: | 0-18 | Color: | Golden |
| High Light: | HWL Impregnated Diamond Core Bit,12mm Hard Rock Diamond Core Bit,HWL Impregnated 12mm diamond drill bit |
||

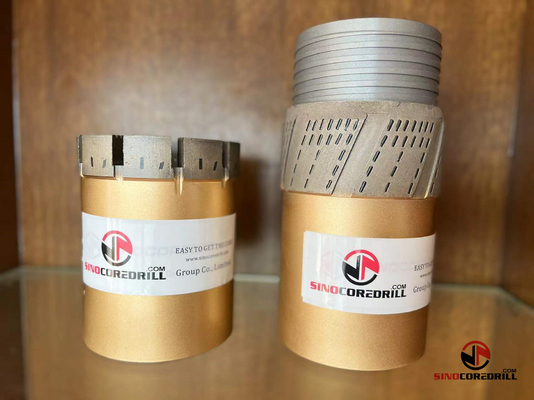

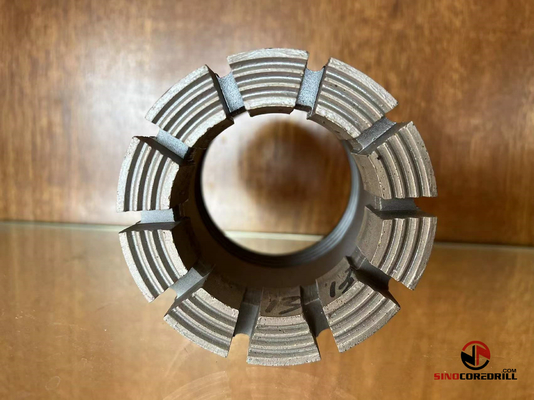

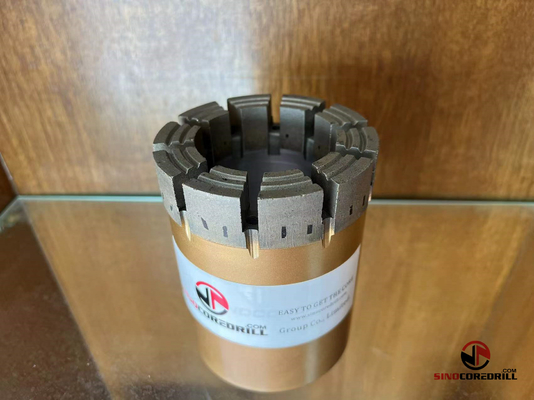

High Quality Hard Rock Mining Diamond Core Drill HWL Impregnated Diamond Core Bits
Specifications:
HQ Diamond impregnated Core Bit & HQ Reaming Shell
1. good quality and long working life
2. over 20 years experiences
3. fast speed
4. reasonable price
Features:
1. Significantly outperforms the successful Series range in drilling speed and bit life.
2. Protects the diamond from oxidation and surface degradation.
3. Inhibits the premature "pull-out" of the diamond.
4. Available in multiple standard configurations and selected on the basis of relative rock hardness and ground conditions.
Size Available:
|
ITEM |
DIAMOND BIT |
REAMING SHELL |
|||||
|
"Q" |
Size |
Bit-set OD |
Bit-set ID |
||||
|
mm |
inch |
mm |
inch |
mm |
inch |
||
|
AQ |
47.60 |
1.88 |
26.97 |
1.06 |
48.00 |
1.89 |
|
|
BQ |
59.50 |
2.35 |
36.40 |
1.43 |
59.90 |
2.36 |
|
|
NQ |
75.30 |
2.97 |
47.60 |
1.88 |
75.70 |
2.98 |
|
|
HQ |
95.58 |
3.77 |
63.50 |
2.50 |
96.00 |
3.78 |
|
|
PQ |
122.00 |
4.80 |
84.96 |
3.35 |
122.60 |
4.83 |
|
|
Swedish |
36 |
36.0 |
1.417 |
22.0 |
0.866 |
36.3 |
1.429 |
|
46 |
46.0 |
1.811 |
32.0 |
1.260 |
46.3 |
1.823 |
|
|
56 |
56.0 |
2.205 |
42.0 |
1.654 |
56.3 |
2.217 |
|
|
66 |
66.0 |
2.598 |
52.0 |
2.047 |
66.3 |
2.610 |
|
|
76 |
76.0 |
2.992 |
62.0 |
2.441 |
76.3 |
3.004 |
|
|
86 |
86.0 |
3.386 |
72.0 |
2.835 |
86.3 |
3.398 |
|
|
101 |
101.0 |
3.976 |
84.0 |
3.307 |
101.3 |
3.988 |
|
|
Swedish |
TAW |
47.6 |
1.875 |
23.2 |
1.31 |
48.0 |
1.89 |
|
TBW |
59.5 |
2.345 |
44.9 |
1.77 |
59.9 |
2.36 |
|
|
TNW |
75.3 |
2.965 |
60.5 |
2.38 |
75.7 |
2.98 |
|
Sizes: Specialisted in producing varies kinds of diamond core bits in different international standard sizes(46~325mm) for soft, medium to hard rock formations.
We can manufacture according to the specific requirements of clients as drawing and samples.
| Size Available | |
| Q Series | AQ, BQ, NQ. NQ2, NQ3, NQTT, HQ, HQ3, HQTT, PQ, PQ3, PQTT, AQTK, BQTK |
| T2 Series | T2 46, T2 56, T2 66, T2 76, T2 86, T2 101 |
| T6 Series | T6 76, T6 86, T6 101, T6 116, T6 131, T6 146, |
| T6S Series | T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146 |
| T Series | T36, T46, T56, T66, T76, T86 |
| Z Series | Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146 |
| B Series | B36, B46, B56, B66, B76, B86, B101, B116, B131, B146 |
| WF Series | HWF, PWF, SWF, UWF, ZWF |
| WT Series | RWT, EWT, AWT, BWT, NWT, HWT (Single Tube, Double Tube) |
| WG Series | EWG, AWG, BWG, NWG, HWG ( Single Tule , Double Tube ) |
| WM Series | EWM, AWM, BWM, NWM, HWM |
| Others | NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, HTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TT56, TB56, TS16, CHD101 |
| Chinese Standard | 56mm , 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm |
| Non-standard also can be made as your demand. | |
