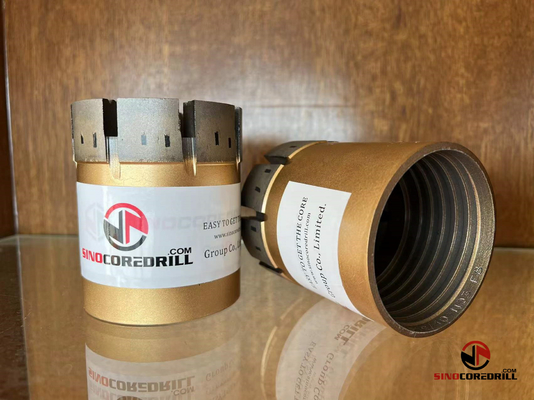

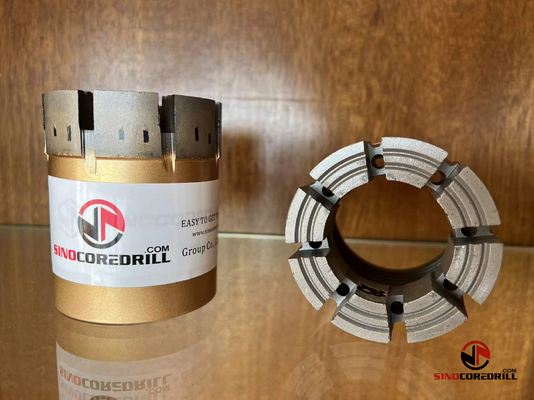

Wireline Triple Tube NQ3 HQ3 Imp Diamond Core Bits With Face Discharge

Wireline Triple Tube NQ3 HQ3 Imp Diamond Core Bits With Face Discharge
Wireline Triple Tube NQ3 HQ3 Imp Diamond Core Bits With Face Discharge Wireline Triple Tube NQ3 HQ3 Imp Diamond Core Bits With Face Discharge

Large Image :  Wireline Triple Tube NQ3 HQ3 Imp Diamond Core Bits With Face Discharge

Product Details:
Place of Origin: China
Brand Name: SINOCOREDRILL
Certification: CE, ISO9001-2000
Model Number: BQ3 NQ3 HQ3 PQ3
Payment & Shipping Terms:
Minimum Order Quantity: N/M
Packaging Details: Sea Worthy Package
Delivery Time: 5-7 Working Days
Payment Terms: T/T, L/C, Western Union

Wireline Triple Tube NQ3 HQ3 Imp Diamond Core Bits With Face Discharge

Description
Material: Synthetic Diamond, Natural Diamond Available Size: Q Series, T2 Series, T6 Series
Crown Profile: Standard Waterways: Standard /Face Discharge /Turbo /Spiral
Thread: DCDMA Standard Boart Longyear , Atals Copco Color: Golden
Applicaion: All Conventional And Wireline Core Barrel Use: Mining Exploration Diamond Drilling
High Light:

nq3 core bits

,

HQ3 Core Bits

,

Wireline Triple Tube imp bits

Wireline Triple Tube NQ3 HQ3 Imp Diamond Core Bits With Face Discharge Diamond Drill Bits





Impregnated bits can penetrate a broad range of formations from the softest to the hardest rocks. They are manufactured with very small, high quality synthetic diamonds mixed evenly through a tungsten carbide matrix. During drilling the matrix wears away evenly resulting in continuous exposure of new, sharp diamond points throughout the life of the bit.



All impregnated bits have T.C. and diamond gauge protection. The optimum diamond size, concentration and matrix composition varies according to the hardness and abrasiveness of the rock formations to be drilled.



SINOCOREDRILL impregnated diamond bits are manufactured using high quality raw materials for optimum drilling performance. As a result of our personnel's more than 20 years of experience in the drilling Industry,We can recommend the optimum design for optimum performance in a variety of applications and conditions. Various face profiles, bonds and diamond qualities are available for superior coring performance and longer bit life resulting in fewer trips in and out of the hole, reducing costs and improving production.




The matrix of our impregnated bits is designed to expose new diamonds to the bits cutting face as wear occurs. Fast penetration rate is maintained as a result of this action.

Our impregnated bits are manufactured to give optimum penetration rates and bit life, which is required to keep the cost of diamond drilling to a minimum.



Q series core bits
Size O.D I.D Availability
mm mm Imp. S.S T.C. PDC TSP E.P.
AQ 47.75/47.50 27.10/26.85
BQ 59.69/59.44 36.52/36.27
BQ3 59.69/59.44 33.65/33.40
NQ 75.44/75.19 47.75/47.50
NQ3 75.44/75.19 45.21/44.96
HQ 95.76/95.38 63.63/63.38
HQ3 95.76/95.38 61.24/60.99
PQ 122.30/121.80 85.09/84.84
PQ3 122.30/121.80 83.18/82.93
Core bits for N-series double core barrels
NMLC 75.44/75.19 52.12/51.87
HMLC 98.98/98.60 63.63/63.38
Core bits for T2 series double core barrels
T2-46 46.18/45.92 31.82/31.57
T2-56 56.13/55.88 41.83/41.58
T2-76 76.12/75.87 61.82/61.57
T2-86 86.13/85.88 71.83/71.58
T2-101 101.12/100.87 83.82/83.57
Core bits for T6 series double core barrels
T6-76 76.12/75.87 57.12/56.87
T6-86 86.13/85.88 67.13/66.88
T6-101 101.12/100.87 79.12/78.87
T6-116 116.20/115.82 93.14/92.89
T6-131 131.19/130.81 108.13/107.88
T6-146 146.18/145.80 123.11/122.86
Core bits for Chinese standard single tube core barrels
59 59.5 41.5
75 75.2 54.5
91 91.2 68
110 111.2 93
130 131.2 113
150 151.2 133
170 171.2 149
219 225.2 197
Core bits for Chinese standard double tube core barrels
75 75.2 54.5
91 91.2 68
110 111.2 93







Warranty and Service



We always concerned about our clients and provides them with warranty and service support.



The factory ensures equipment warranty for the major assemblies and units efficient for 12 months. The clients are supplied with all needed spare parts, tooling and auxiliary facilities.



The authorized dealers possess service centers to execute product warranty liabilities, after-sales service and equipment repair. The clients’ staff is also provided with theoretical and practical company instructions and consultations on all matters concerning execution of work and equipment operation.
