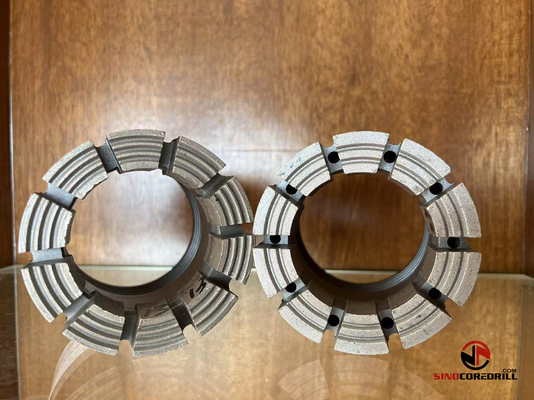

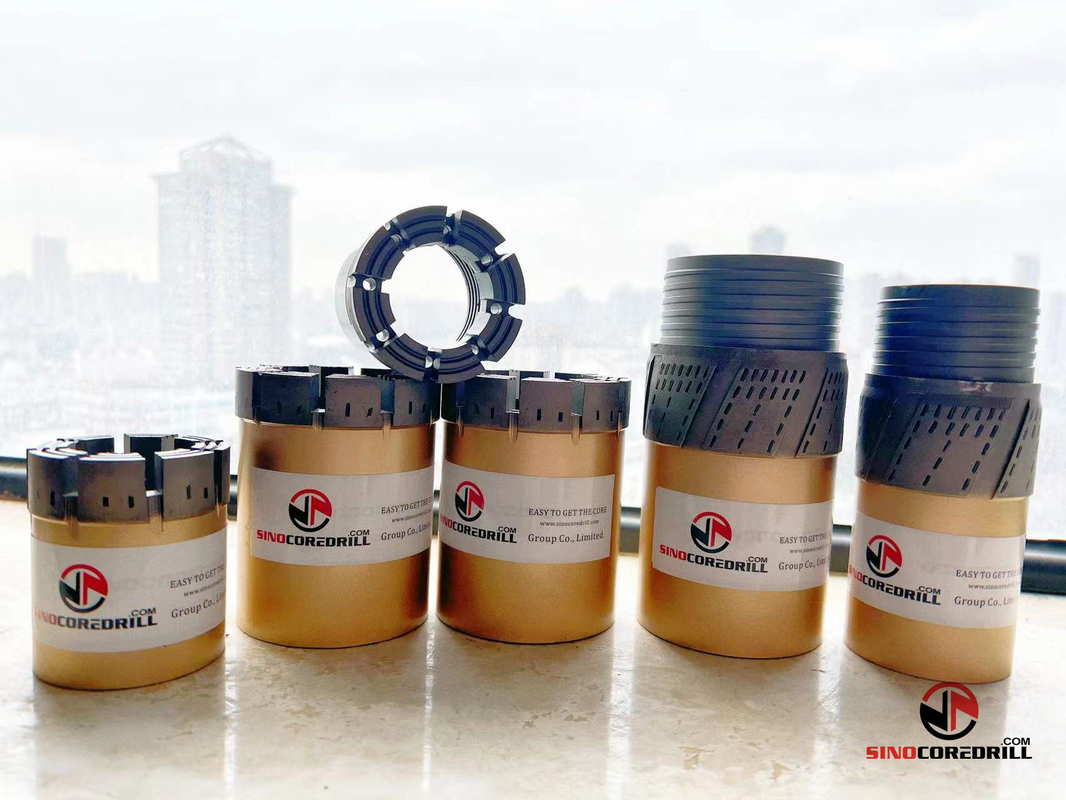

HQWL OD 96MM ID 63.5MM Impregnated Diamond Core Bit For Geological Exploration

HQWL OD 96MM ID 63.5MM Impregnated Diamond Core Bit For Geological Exploration
HQWL OD 96MM ID 63.5MM Impregnated Diamond Core Bit For Geological Exploration HQWL OD 96MM ID 63.5MM Impregnated Diamond Core Bit For Geological Exploration

Large Image :  HQWL OD 96MM ID 63.5MM Impregnated Diamond Core Bit For Geological Exploration

Product Details:
Place of Origin: China
Brand Name: SINOCOREDRILL
Certification: CE, ISO9001-2000
Model Number: BWL NWL HWL PWL
Payment & Shipping Terms:
Minimum Order Quantity: N/M
Packaging Details: Sea Worthy Package
Delivery Time: 5 Working Days
Payment Terms: T/T, L/C, Western Union

HQWL OD 96MM ID 63.5MM Impregnated Diamond Core Bit For Geological Exploration

Description
Material: Synthetic Diamond, Natural Diamond Available Size: Q Series, T2 Series, T6 Series
Crown Profile: Standard Waterways: Standard /Face Discharge /Turbo /Spiral
Thread: DCDMA Standard Color: Black
Applicaion: All Conventional And Wireline Core Barrel Use: Mining Exploration Diamond Drilling
High Light:

HQWL Impregnated Core Drill Bit

,

DCDMA Impregnated Core Drill Bit

,

DCDMA Diamond Core Bit

China Qaulity HQWL OD 96MM ID 63.5MM Mining Bit Impregnated Diamond Core Drill Bit For Geological Exploration





The synthetic diamond poly crystalline is manufactured by sintering the fine grains of synthetic mono crystals and at high temperature and high-pressure.Because of their advantages of high wear ability,hot hardness high compressive and impact strength,It is widely used in geological exploration,petroleum drilling,mechanical processes,and so on.

Diamond core bits are widely used in the drilling for geological exploration,water conservancy and power engineering,hydro geological exploration and building construction,etc.



Overall Drilling System includes core bits, reaming shells, core barrels, drill rods and drilling rig.



Size Available:


Wireline series:  WLA, WLB, WLN, WLH, WLP, WLB3, WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76
T2 / T series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86
TT series: TT 46, TT 56
T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146
T6S series: T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146
B series: B46, B56, B66, B76, B86, B101, B116, B131, B146
MLC series: NMLC, HMLC
LTK series: LTK48, LTK60
WF series: HWF, PWF, SWF, UWF, ZWF
WT series: RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube)
WG series: EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube)
WM series: EWM, AWM, BWM, NWM, HWM
Other sizes: AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW, T6H
Chinese standard: 56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm
Russian standard: 59, 76, 93, 112, 132, 152 mm





Features of Impregnated Diamond Bits


1. This diamond tool features with fast penetration rate, because the matrix of our impregnated diamond bits is specially designed (it is designed to expose new diamonds to the bits' cutting face as wear occurs).


2. Can help reduce the cost for diamond drilling: our impregnated diamond bits are manufactured to give optimum penetration rates and service life.


3. The hardness and abrasiveness of the formation to be drilled largely determined the optimum diamond size, concentration and matrix type, etc.





Bit Selection



When selecting a bit there are 3 main factors that contribute to decision making



○ Rock Hardness

○ Rock Formations

○ Bit Characteristics



• Rock Hardness

Measured using MOHS hardness scale: The Mohs scale of mineral hardness is a qualitative ordinal scale that characterizes the scratch resistance of various minerals through the ability of a harder material to scratch a softer material.



• Rock Formations



Rock types are classified by their different chemistry and structure. Hardness in theory is relative; therefore, soft rocks can prove more difficult to drill than hard rock. Also, the same rock formations, in different locations, can drill differently.

Factors that Determine Drillability

○ Grain Size

○ Rock Hardness

○ Weathering and Fracturing



• Bit Characteristics



Matrix – Each of the matrices has a different rate of wear. The matrix chosen is ideal when there is a balance between the wear of the matrix material and the diamonds exposing ensuring a high rate of penetration and optimum bit life.

Gauge – The outer (hole) and inner (core) dimensions of the bit

Crown Height – Ranging from 4mm to 14mm in height. With higher crowns available upon request. The height of the crown is chosen based of hole depth and wear rate.

Waterways – There are multiple different waterway configurations depending on the drilling conditions





Standard size of impregnated core bit



Double tube surface

Size( surface

exploration drill

Matric system(mm

Imperial system( in )

Hole diameter

Core diameter

Hole diameter

Core diameter

BQ

60

36.4

2.36

1.43

NQ

75.7

47.6

2.98

match1.88

HQ

96.1

63.5

3.match78

2.5

PQ

122.7

85

4.83

3.34

Triple tube surface



NQ3

75.7

45

2.98

1.78

HQ3

96.1

61.1

3.78

2.41

PQ3

122.7

83

4.83

3.27








Parameters Contributing to Drilling

• Fluid Velocity

Fluid flow is another critical variable in optimizing drilling efficiency. The fluid must effectively cool the bit and remove the cuttings from the bit face and then transport these cuttings up the annulus of the hole to the surface as efficiently as possible. Fluid volume should be increased as penetration rates increase. The velocity of the fluid and its carrying ability of the cuttings depend on the fluid viscosity. Generally, cuttings should always have an upward velocity of 4 in/sec. (10 cm/sec).

Too much fluid volume can cause hydraulic lift that seriously affects actual bit weight and consequently drilling performance. If the fluid flow is too low, the bit can wear prematurely due to the abrasive action of the cuttings. In very hard fine-grained formations, fluid velocity can be intentionally reduced to increase matrix erosion to expose new diamonds.



• String Stability

In all recommended operating parameters it is important to select a combination of RPM and Weight that minimizes or preferably eliminates drill string vibration.

Factors contributing to drill string vibration are:

• Misalignment of the drill string with the hole

• Operating within critical ranges of the drill string

• Excessive bit weight or rotation speed

• Bent core barrel or rods

• Oversize annulus



• Rotational Speed Relative to Penetration (RPI)

Optimum rotational speeds depend on the formation types being drilled and inter-relationship between the rig capabilities, peripheral equipment being used, and the individual drilling styles.

RPI (revolutions per inch) is singularly the most important factor to consider when trying optimizing bit life and productivity. It is a ratio of the rotational speed (rpm) to the penetration rate. (If the RPI is too low, premature diamond loss from the matrix is very likely. Conversely, if the RPI is too high, it is very likely that the diamonds will become polished and penetration rates will fall off.)

Maintaining a good RPI ensures that the diamonds stay exposed and that the bit wears at an even and controlled rate. Ideally, the RPI should be between 200 - 250 for all impregnated drill bits. Factors such as drill string vibration or rig constraints might prevent operating within an optimum RPI range, in which case a lower ratio should be used to optimize the bits performance under adverse drilling conditions.



• Bit Weight

The weight applied to the drill bit is the other important variable in optimizing bit life and achieving a desired RPI. The weight has to be sufficient to maintain a rate of advance relative to the rotational speed (to keep the bit penetrating), as indicated by the RPI factor. However, a weight that is too high can cause diamond re-impregnation or rapid wear due to stripping or even a mechanical failure of the matrix. Too low of a weight often leads to the diamonds becoming polished, requiring the matrix to be stripped to expose a new layer of diamonds.

Ideally, the matrix being used performs best when it wears at the same rate as the diamonds. If the matrix requires continues stripping to achieve an acceptable penetration rate, then a softer matrix (higher Hayden number) should be used.

As a guideline, the weight on an impregnated bit should never exceed 2000-2500 psi or (1378 N/cm²-1723 N/cm²).



Sharpening Techniques

If the bit becomes polished, glazed or dull. There are various techniques to sharpen the matrix and expose new diamonds.

• Reduce water flow

• Increase Drilling Pressure

• Increase Drilling Pressure and reduce water flow

• Reduce water flow and RPM



Bit Wear Patterns

The bit wear pattern is a good reference for operator to troubleshoot the problems through the given recommended resolutions. In accordance to drill's operating parameters recommendations and bit matrix / waterways specifications, the operators can simply alter configurations that is best suited to the ground condition





HQWL OD 96MM ID 63.5MM Impregnated Diamond Core Bit For Geological Exploration 0

HQWL OD 96MM ID 63.5MM Impregnated Diamond Core Bit For Geological Exploration 1







HQWL OD 96MM ID 63.5MM Impregnated Diamond Core Bit For Geological Exploration 2
