|Features:||High Penetration Rate, High Speed,High Performance||Product Name:||Diamond Drilling Tools|
|Working Layer:||6mm, 8mm,10mm,12mm||Use:||Mineral Exploration Industry|
|Siz:||BW , NW , HW , PW / NQ , HQ , PQ||Type:||Casing Shoes And Rod Shoes|
diamond core drill bit,
diamond products core bits

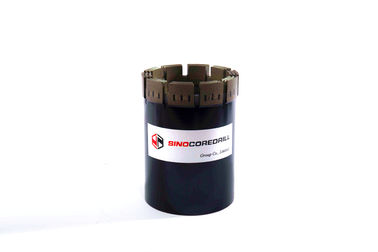

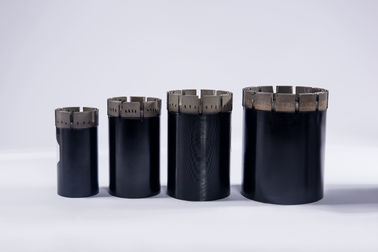

NW HW Diamond Casing Shoe Bit ,Durable Impregnated Diamond Core Drill Bit

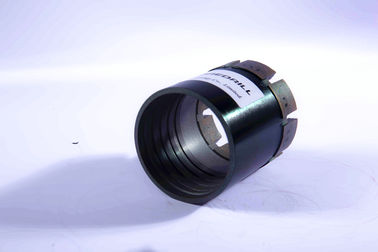

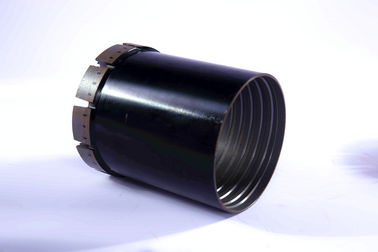

Casing Shoe Bit
The inside diameter of the casing shoe bit is not set with diamonds sometimes(surface set Type) and flush with the inside diameter of the casing. Basically,the corresponding size of Drill Bits and Core Barrels have to get through the inner diameter of the casing shoe bits freely.
The inside diameter of the Casing Bits are set with diamonds and is smaller than the Casing Shoe Bits. It will not permit the passage of the core barrel.
Casing shoes and rod shoes are designed to drill in casings or rods in difficult over burden material to position the rods or casing in the drilling hole.
The interior is smooth and sufficiently large enough to allow free passage of coring equipment such as bits, reaming shells, core barrels and drill rods.
They are manufactured to withstand difficult drilling conditions: for example, unconsolidated overburdened or broken abrasive materials.
Whatever form of casing is, casing shoe must be fitted on top of casing when put into drill hole. The edges of casing shoe exposed to rocks are very few. Casing shoes are connected with casing by means of thread.
Outer diameter of casing shoe is same as bit’s,with its inner diameter equal to or slightly less than casing’s. Such design make it is possible for core tube, drill rod and core barrel to pass through in order to extend geological exploration
Main functions of casing shoe:
1): protect casing ends from distortion.
2): help casing pass through stratum to bed rock.
3): carry mud to earth surface.
4): help down-pass of casing when drill rod is in hole
cashing shoe bits
Manufacture of diamond drilling tools casing shoes Q W X Metric Series in china for many years ,with ISO 9001 certificate and quality control.
|Dimensions of Core Bits|
|Q Series||AQ, BQ, NQ, NQ2,NQ3,HQ, HQ2,HQ3,PQ,PQ2,PQ3|
|T, TT, T2&TB Series||T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 Core line, T2-86, T2-86 Core line, T2-101,T2-101Core line|
|T6 Series||T6-76, T6-86, T6-101, T6-116, T6-131, T6-146|
|B Series (ISO3552-1)||B36, B46, B56, B66, B76, B86, B101, B116, B131, B146|
|WF Series:||HWF, PWF, SWF, UWF, ZWF|
|WT Series:||RWT, EWT, AWT, BWT, NWT, HWT (Single Tube/Double Tube)|
|WG Series:||EWG, AWG, BWG, NWG, HWG (Single Tube/Double Tube)|
|WM Series:||EWM, AWM, BWM, NWM|
|N Guage Core Bits||WLN, WLN2, WLN3, NMLC, NWG NX, NWM, NWT, TNW|
|H Gauge Core Bits||WLH, WLH-3.830, WLH-3.895, WLH3, WLHTT, HMLC, HWF-long, HWM,HWT|
All Chinese Sizes
Casing shoes Size from , BW, NW, HW, PW (include NQ, HQ, PQ drilling rod casing shoe)
1. A hard matrix is durable for use in changing formations with both high and low thrust drilling;
2. A medium-hard matrix for use in moderately abrasive and fractured formation.
