Product Details:
|
| Display: | LED And LCD Display Options | Protection Functions: | Overcharging, Over Load |
|---|---|---|---|
| Charge Mode: | PWM,MPPT | Battery Type: | GEL,SLD,FLD,Usr |
| USB Output: | 5V/1A | ||
| High Light: | LCD Display Solar MPPT Controller,LCD Display Solar PWM Controller,Overcharging Solar Controller |
||
Solar Charge Controller PWM Controller MPPT controller LED And LCD Display Options

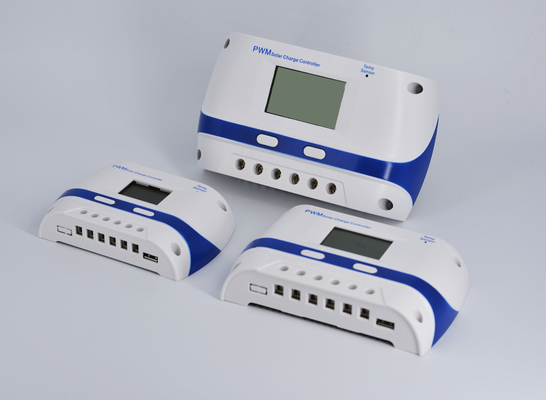

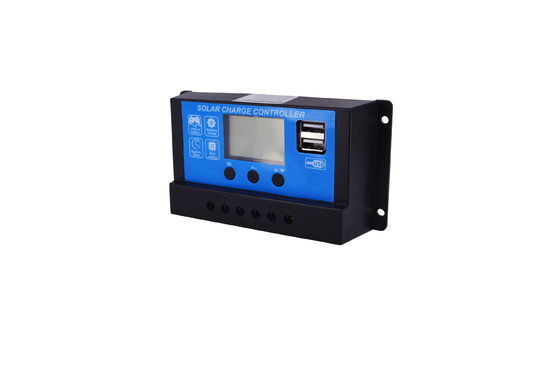

PWM Solar Charge Controller
Description
Solar charge controller works as the brain of PV system to coordinate the work of solar panel, battery and load. It could improve the utilization of solar panel and protect battery.
Key Features
LED and LCD display options
Protection functions such as overcharging, over load, reverse connection
Increase charging efficiency by 3% to 6%, compared with non-PWM charging
| Model | SLC-GP2410F | SLC-GP2420F | SLC-GP2430F | SLC-GP2440F | SLC-GP2450F | SLC-GP2460F |
| PV Voltage | ≤50V | ≤50V | ≤50V | ≤50V | ≤50V | ≤50V |
| Rated Charge Current | 10A | 20A | 30A | 40A | 50A | 60A |
| Rated System Voltage | 12V/24V Auto | 12V/24V Auto | 12V/24V Auto | 12V/24V Auto | 12V/24V Auto | 12V/24V Auto |
| Rated Discharge Current | 10A | 20A | 30A | 40A | 50A | 60A |
| Charge mode | PWM | PWM | PWM | PWM | PWM | PWM |
| Float charge voltage | 13.8V(13V-15V)×1/×2 | |||||
| Avsorption voltage | 14.4V(13V-15V)×1/×2 | |||||
| LVD voltage | 10.7V(10V-14V)×1/×2 | |||||
| LVR voltage | 12.6V(10V-14V)×1/×2 | |||||
| HVD voltage | 16.0V×1/×2 | |||||
| HVR voltage | 15.5V×1/×2 | |||||
| Working mode for load | Light control,time&light control,normal mode | |||||
| Light control voltage | 5V(1V-10V)×1/×2 | – | ||||
| Charge circuit voltage drop | ＜0.3V | ＜0.22V | ||||
| Discharge circuit voltage drop | ＜0.18V | ＜0.12V | ||||
| No load loss | ≤12mA(12V),≤14mA(24V) | |||||
| USB output | 5V/1A | N/A | ||||
| Battery type | GEL,SLD,FLD,Usr | |||||
| Installing cable size | ≤6mm² | ≤10mm² | ≤16mm² | ≤16mm² | ≤25mm² | ≤25mm² |
| Working temperature | ﹣10℃ to 50℃ | ﹣20℃ to 50℃ | ||||
| Dimension(mm) | 130*75*38 | 140*85*42.5 | 160*95*45 | 196*111*54 | 188*125*48.5 | 188*125*56 |
| Weight | 175g | 230g | 327g | 395g | 565g | 715g |

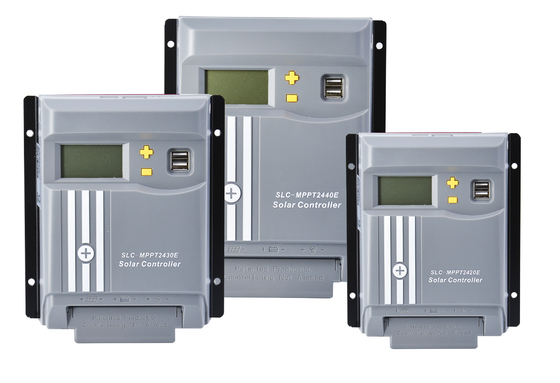

Solar Charge Controller MPPT Series
Description
Solar charge controller works as the brain of PV system to coordinate the work of solar panel, battery and load. It could improve the utilization of solar panel and protect battery.
Key Features
Tracking efficiency not less than 99.5%
Peak exchange efficiency reaches 97%
12Voltage and 24Voltage is self-identified
Compatible with different kinds of batteries: like Seal, GEL, Flooded, LiFePO4 and Lithium battery and so on
Communication mode is provided: like Bluetooth, wifi, RS485 port are all available
Various load control modes: general mode, light control mode, dual time mode, pure charge mode
| Model | SLC-MPPT2410E | SLC-MPPT2420E | SLC-MPPT2430E | SLC-MPPT2440E | |||
| System Voltage | 12V/24V AUTO | ||||||
| Battery Voltage Range | 9~23V | ||||||
| Max Charging Current | 10A | 20A | 30A | 40A | |||
| Max PV Voltage | 100V | ||||||
| Battery Type | USER, FLOOED, AGM, GEL, LIFEPO4, LITHIUM | ||||||
| Equalize Charge | SLD:14.6V, GEL:null, FLD:14.8V | ||||||
| Absorption Charge | SLD:14.4V, GEL:14.2V, FLD:14.6V | ||||||
| Float Charge | GEL, SLD, FLD:13.8V | ||||||
| Low Voltage Disconnection | GEL, SLD, FLD:10.8V | ||||||
| Low Voltage Reconnection | GEL, SLD, FLD:12.6V | ||||||
| No Load Consumption | ≤40mA | ||||||
| High Voltage disconnect | 16V | ||||||
| Equalize Charge Time | 2hours | ||||||
| Absorption Charge Time | 2hours | ||||||
| Light Control Voltage | 5V | ||||||
| Temperature Compensation | -4mV/cell/˚C | ||||||
| Charge Loop Voltage Drop | ≤0.29V | ||||||
| Discharge Loop Voltage Drop | ≤0.16V | ||||||
| LCD Screen Temperature Range | -20oC~+70oC | ||||||
| Working Tmperature | -20oC~+55oC | ||||||
| Storage Temperature | -30oC~+80oC | ||||||
| Humidity | 0-9%, Nocondensation | ||||||
| Grouding | Positive grounding | ||||||
| Communication Mode | RS485,RJ45 POST | ||||||
