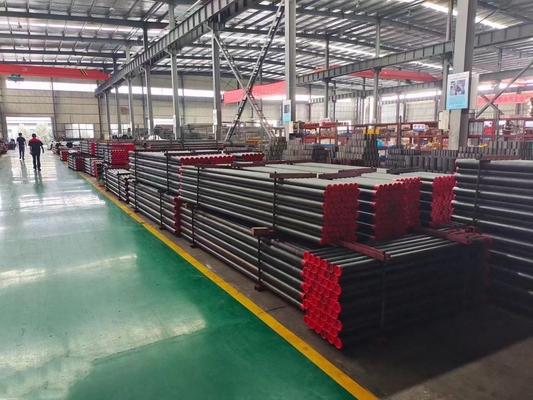

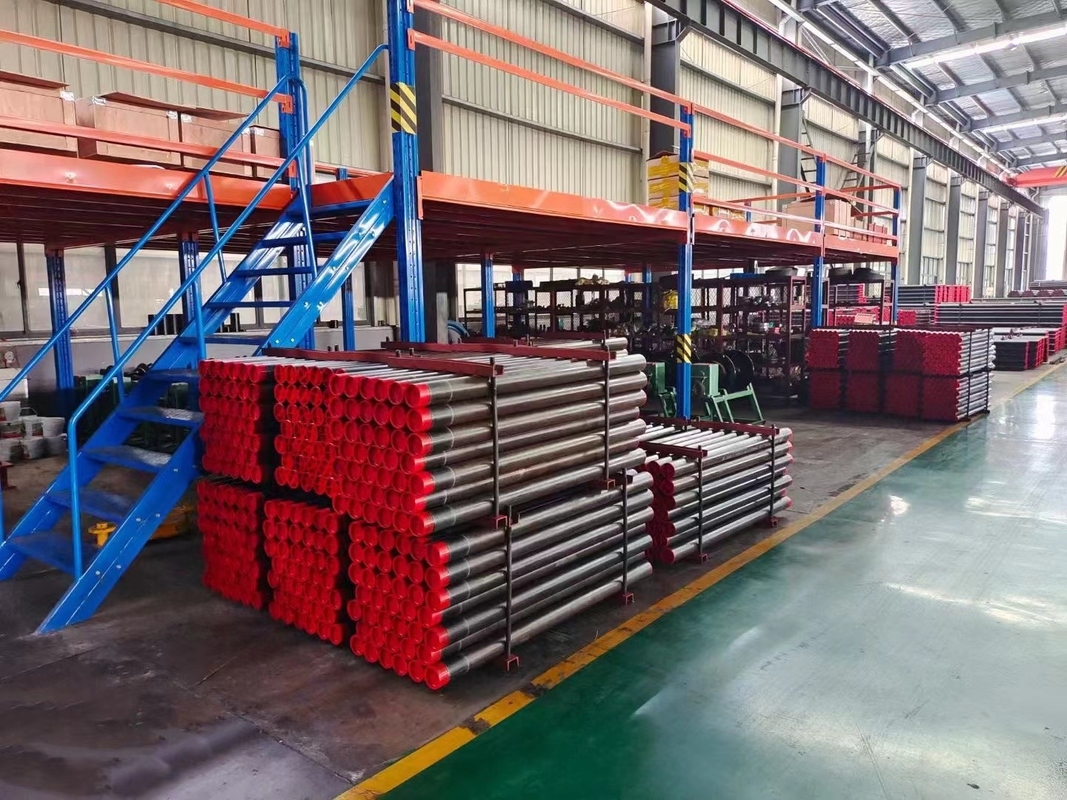

Material DCDMA Standard Wireline Core Drilling Rods BWL NWL HWL PWL

Material DCDMA Standard Wireline Core Drilling Rods BWL NWL HWL PWL
Material DCDMA Standard Wireline Core Drilling Rods BWL NWL HWL PWL Material DCDMA Standard Wireline Core Drilling Rods BWL NWL HWL PWL

Large Image :  Material DCDMA Standard Wireline Core Drilling Rods BWL NWL HWL PWL

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE
Model Number: BWL NWL HWL PWL
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Price: Negotiable
Packaging Details: Sea Delivery Package
Delivery Time: 1 week
Payment Terms: T/T
Supply Ability: 1000/month

Material DCDMA Standard Wireline Core Drilling Rods BWL NWL HWL PWL

Description
Type: DRILLING ROD Material: 30CrMnSia XJY850
SIZE: BWL NWL HWL PWL Length: 3m 1.5m
Standard: DCDMA Country: China
HS Code: 730451
High Light:

DCDMA Standard Wireline Drilling Rods

,

BWL Wireline Drilling Rods

,

HWL Core Drilling Rod

 Superior Grade Material DCDMA Standard Wireline Core Drilling Rods BWL NWL HWL PWL

Sinocoredrill Wireline Drill Rods are made of high quality carbon seamless steel tubes with high mechanical properties. All wireline drill rods are fully heat treated, case hardened at two ends till 50 to 55 HRC hardness to protect thread connection and increases its’ wear resistance and drill rod life.


General characteristic:
Good concentricity
High precision
Well wear resistance
Long drilling life


  • Cold-drawn seamless steel tubing of very high mechanical resistance, a steel of exceptional performance unequaled on the market.
  • This exceptional mechanical resistance is on the full length of the rods.
  • Straightness and Hoop Stress controlled tubing.
  • Surface treatment on pin threads to prevent galling.


Sizes: AQ, BQ, NQ, HQ, PQ, NT, HT, PT, AW, BW, NW, AWJ, BWJ, NWJ
Length: 1.0M, 1.5M, 2.0M, 3.0M etc


Q series wireline drill rods specifications:



Size



O.D



I.D



Weight (kg/3m)



Desc

AQ 44.5mm 34.9mm 14.0 Entire length heat treated, case hardened at two ends
BQ 55.6mm 46.1mm 18.0
NQ 69.9mm 60.3mm 23.5
HQ 88.9mm 77.8mm 34.5
PQ 114.3mm 101.6mm

52.2





Performance Rating:


Name Rated Pullback Rated Torque Threaded connection tightening torque ,Nm Maximum torque Nm Maximum drilling depth m
  Min Max
BWL 130kN 800Nm 405 550 450 1500
NWL 250 kN 2000 Nm 600 750 600 1500
HWL 250 kN 2000 Nm 1010 1350 1080 1200
PWL 450kN 4000Nm 1010 3500 2950 900



Mechanical Properties:


Name Tensile Strength: Yield Strength :

Elongation
(%):

Tooth angle Hardness
BWL 990 Mpa 870 Mpa 17% 29º HRC28-32
NWL 983 Mpa 895 Mpa 19% 29º HRC28-32
HWL 960 Mpa 855 Mpa 18.5% 29º HRC28-32
PWL 1050 Mpa 930 Mpa 14.5% 29º HRC28-32



Wireline core drilling useage steps:

1. To mount drill rods, bits, and core barrel etc drilling tools with a diamond drill rig.
2. To utilize a diamond drill bit attached to the end of drill rods to cut a cylindrical core of solid rock.
3. To retrieve the core samples to the surface by retracting the winch cable which located on the top end of the core barrel, lowered inside the rod string.
4. To remove the core sample from the core barrel, break it into small pieces to make it fit into the sample trays and catalogue.

Material DCDMA Standard Wireline Core Drilling Rods BWL NWL HWL PWL 0Material DCDMA Standard Wireline Core Drilling Rods BWL NWL HWL PWL 1Material DCDMA Standard Wireline Core Drilling Rods BWL NWL HWL PWL 2Material DCDMA Standard Wireline Core Drilling Rods BWL NWL HWL PWL 3
