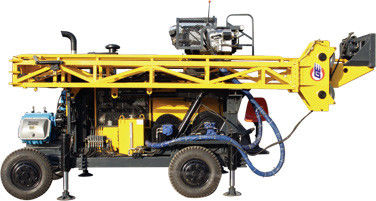

HWL Drilling Depth 1000m Wheel Type Hydraulic Core Drilling Machine
5C new model full hydraulic core drill rig is advanced it is a typical hydraulic drill rig on wheel trailer, with reference technique of same kind equipments at home and abroad. The drill rig has a reasonable design and superior performance. It is easy for operation and maintenance.
The drill rig adopts full hydraulic driving, tire trail-type, so it is a typical hydraulic drill rig on wheel trailer. The drill head is driven by variable motor with function of two-speed mechanical gear shifts, stepless speed change with an advanced and simple structure. The drill head is fed and driven with a system connecting the hollow spindle and oil cylinder with chain. The system has the function, if the piston rods of oil cylinder moving one certain distance, the drill head moving will double the distance. The mast could be adjusted within the range of angle 0 to 90 degree for its drilling hole with a low center of gravity and good stability of the overall unit. The rig provides operator with a nice field of vision and wide and comfortable working condition. The rig looks pretty in overall structure and embodies the design thought of people oriented.
(1) Reliable Performance
Basing on the guideline of purchasing the critical auxiliary equipment internationally, the diesel engine, the hydraulic pump, the main valves, the motors, crawler reducers and the key hydraulic spare parts are all adopted famous brands products at home and abroad.
(2) High Efficiency Hydraulic Drill Rig on Wheel Trailer
With big torque, high power unit allocation and with reasonable structure design and advanced operation method and 6 meters (19.7 feet) length of drill rod, all these guarantee the drill rig's high operation and performance efficiency.
(3) Environmental Protection
With lower polluting emission of diesel engine, professional noise reducing design, the drill rig is fully suitable for urban operation and performance.
(4) Energy Saving Hydraulic Drill Rig on Wheel Trailer
Adopting the advanced load sensitive control technique, the drill rig has reduced the power consumption and heat generation to the lowest level. With an elegant outline, compact structure, reliable performance and operation easily, it is the priority equipment to be selected in the full hydraulic core drill rig of present domestic market.
1. Main hydraulic pump, valve and motor are all adopted from famous international brands.
2. Batholith is divided into tyre-drawing (with turning device) or steel track (optional), which is equipped with hydraulic support device.
3. The mast of full hydraulic drilling rig adopted hydraulic powered lift/down, which can be folded to store and transport, with touchdown function.
4. Hydraulic system adopted load sensitivity control with high-position operation platform and orifice operation platform.
5. Spindle coring rig power head feed adopts double-speed driving device with long-range feeding system.
6. Power head rotation adopts single-motor driving with 2 grades gear-box and hydraulic stepless speed change.
7. Orifice of core drill rig is equipped with hydraulic holder, centralizer.
Diesel Engine | Model | Cummins 6CTA8.3-C195 (turbocharged and charge water cooled) |
Displacement | 8.3L (2.19 US Gallons) | |
Power | 145kW (195HP) | |
Rated RPM(Factory setting) | 2200rpm | |
Drilling Capacity | BQ | 1500 m(4920 feet) |
NQ | 1300 m(4264 feet) | |
HQ | 1000 m(3280 feet) | |
PQ | 680 m(2230 feet) | |
Drill Head | Rotation Motor | Double Hydraulic Motors –variable and Reversible Maker:SAUER-DANFOSS |
RPM | Two Shifts/ Stepless Change 0-1145 RPM | |
Ratios | 1st 8.776:1 2nd 2.716:1 | |
Head Opener | sidewise sliding way with hydraulic drive | |
Hydraulic Chuck(PQ) | Hydraulically opened, Disc Spring Clamping, Normally Closed Type Axial Holding Capacity of 222 400 N | |
Max. Torque | 4650 N·m(3427 lbf·ft) | |
Hold Diameter | 121 mm(4.76 inch) | |
Max. Lifting capacity of Spindle | 150 kN(33720 lbf) | |
Max. Feeding Power | 75 kN(16860 lbf) | |
Primary Pump Package | Axial Piston variable displacement Triplex pump for driving of Drill Head Rotation, Main Hoist, Mud Pump & Line Winch. | Maker: DANFOSS 1st Pump:150LPM at 28.5MPa 2nd Pump:120LPM at 25MPa 3rd Pump: 102 LPM at 25MPa |
Hydraulic Tank | Capacity | 420 L (111 US Gallons) |
Hoisting Speed (single wire) | 38-70m/min(bare drum) | |
Capacity of Main | Hoisting force (single wire) | 77kN(17310 lbf) |
Hoist | Steel Wire Diameter | 18 mm(0.71 inch) |
Steel Wire Length | 50 m(164 feet) | |
Hoisting Speed (single wire) | 164m/min (bare drum) | |
Capacity of Wire line | Hoisting Force (single wire) | 12 kN(2698 lbf) (bare drum) |
Hoist | Steel Wire Diameter | 6 mm(0.24 inch) |
Steel Wire Length | 1500 m(4920 feet) | |
Mast Height | 11 m(36 feet) | |
Mast Adjusting Angle | 0°—90° | |
Drilling Angle | 45°—90° | |
Mast | Feeding Stroke | 3800 mm(150 inch) |
Slippage Stroke | 1500 mm(59 inch) | |
Feed Pull | 15000kg(33075 lb) | |
Feed Thrust | 7500kg(16538 lb) | |
Rod Pull | 3m or 6m(9.84feet or 19.68feet) | |
Mud Pump Foot Clamp | Type | Reciprocating Pump Triplex Plunger |
Model | BW250 | |
Stroke | 100mm(3.9 inch) | |
Output volume | 250,145, 90, 52 L/min (66, 38, 24, 14 US Gallons/min) | |
Discharge pressure | 2.5, 4.5, 6.0, 6.0 Mpa (363, 653, 870, 870 psi) | |
Clamping Scope | 55.5-117.5 mm(2.19-4.63 inch) through hole Ф154mm(6.06 inch) | |
Other | Weight | 10000 Kg(22050 lb) |
Working Dimensions (L × W ×H ) | 5652×2130×10200mm (222.5×83.9×401.6 inch) | |
Transport Dimensions (L × W ×H ) | 5970×2130×2730mm (235×83.9×107.5 inch) | |
Transport Way | Tire type |
