XY-8B Spindle Tpye Core Drilling Rig With Diamond And Carbide-Tipped Bits
XY-8B CORE DRILLING RIG
HXY-8B is used for medium and deep depth hole drilling with diamond and carbide-tipped bits, with drilling
capacity 3200m
I．Brief Introduction
|
Drilling Depth |
1000 m3200 m(328010496 feet) |
|
|
Rotate speed (rpm) |
Clockwise rotation rates |
79;136;121;363;220;379;589;1011 |
|
Anti-clockwise rotation rates |
51;142 |
|
|
Turn table speed (rpm) |
Clockwise rotation rates |
27;46;72;124;75;130;202;347 |
|
Anti-clockwise rotation rates |
17;48 |
|
|
Diameter of drilling rod |
50;60;71;89;114 mm (1.97;2.36;2.80;3.50;4.49 inch) |
|
|
Spindle stroke |
800 mm(31.5 inch) |
|
|
Shift range |
690 mm(27.2 inch) |
|
|
Max. hoisting force |
300 kN(67440 lbf) |
|
|
Max. pressuring force |
141 kN(31697 lbf) |
|
|
Max. single-wire hoisting force |
125 kN(28100 lbf) |
|
|
Max. content of winding drum |
120 m(394 feet) |
|
|
Steel wire size |
21.5 mm(0.85 inch) |
|
|
Hoisting Speed |
0.663;1.09;1.693;2.90;1.761;3.034;4.713;8.803m/s (2.17;3.58;5.55;9.51;5.78;9.95;15.46;28.87 feet/s) |
|
|
Turn table Aperture |
395 mm (15.55 inch) |
|
|
Electromotor model |
Y2-280M-4 |
|
|
Electromotor output |
90 kw(121HP) |
|
|
Electromotor Rotation rate |
1480 r/min |
|
|
Diesel Engine model |
YC6B180D |
|
|
Diesel Engine output |
134 kw(180HP) |
|
|
Diesel Engine rotation rate |
1800 r/min |
|
|
Dimensions |
With electromotor 4413×1692×2653 mm (173.7×66.6×104.5 inch) |
|
|
With diesel engine 4413×1892×2803mm (173.7×74.5×110.4 inch) |
||
|
Weight |
10100 kg(22270 lb) |
|
2. About us
We are one of the leading manufacturers of diamond core drilling rigs in China ,
We produce and supply spindle type diamond core drilling rigs and all hydraulic core drilling rigs with the drilling capacity from 100 meters to 4200meters, mud pumps and other related drilling tools can be supplied as well.
We warmly welcome clients from all over the world to contact us for any inquiry, and we will try our best to
provide professional service to satisfy you.
3. Service
Shipping time depends on the destination.
After we ship the goods, we will email you the shipping information, as well as tracking details.
The goods will be delivered by the most reasonable way for delivery.
4.Warranty and After-sales services:
1. All of our drilling rigs are provided warranty period and after-sales services, pls contact us for details.
2. We offer lifer-long technical support to our drilling equipments, please contact us freely if you have any question to our drilling equipment you received, we will tell you how to solve the problem by email or phone.
5.Feedback:
1. Therefore, your feedback is extremely important to us, please leave good feedback to us if you get
satisfied with our goods and service
2. We care about our valued customers, and will always try to help you

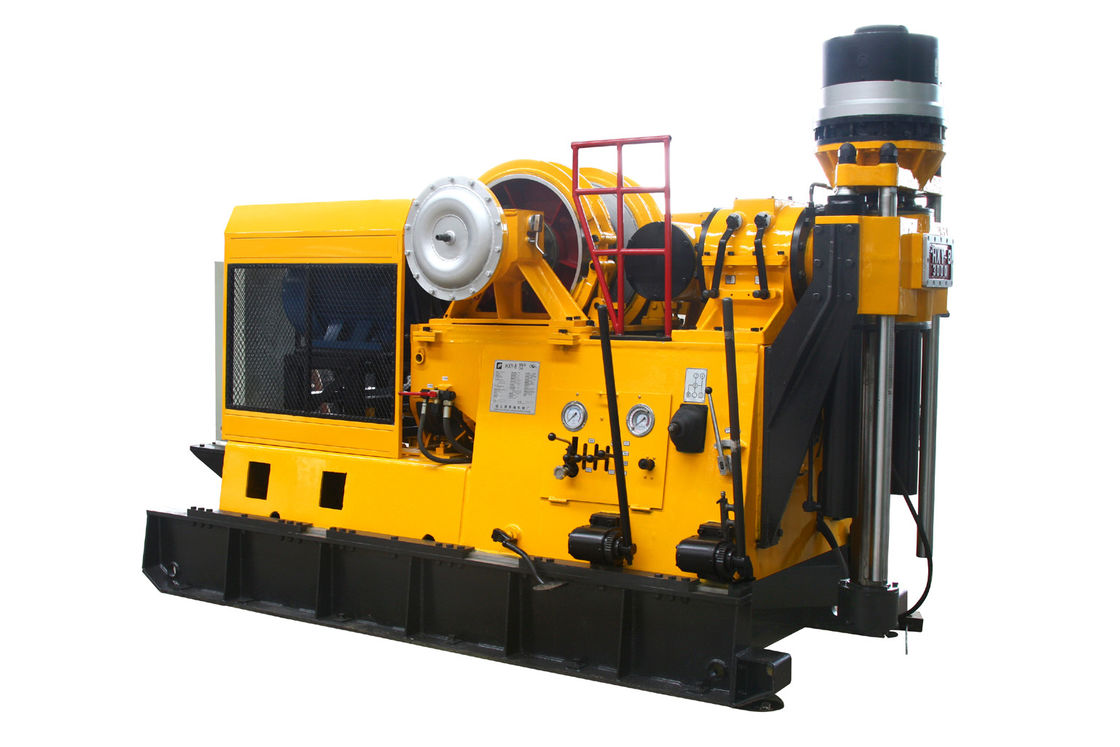

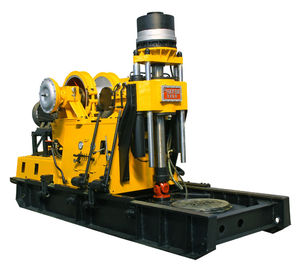

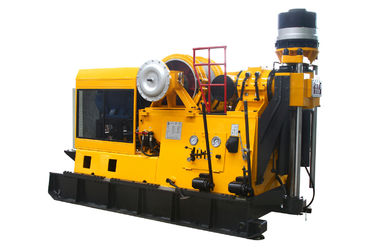

6. Product view
