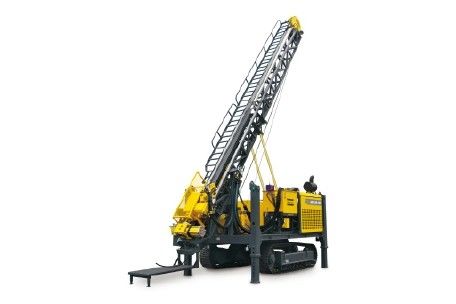

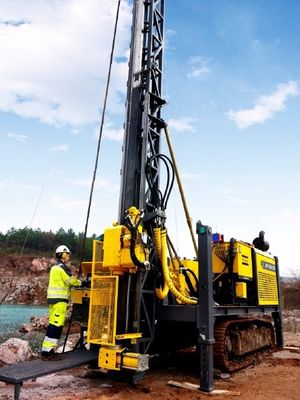

Core Drill Rig C8c Core Drilling Rig With High-Altitude Capability Atlas Copco

Core Drill Rig C8c Core Drilling Rig With High-Altitude Capability Atlas Copco
Core Drill Rig C8c Core Drilling Rig With High-Altitude Capability Atlas Copco Core Drill Rig C8c Core Drilling Rig With High-Altitude Capability Atlas Copco

Large Image :  Core Drill Rig C8c Core Drilling Rig With High-Altitude Capability Atlas Copco

Product Details:
Place of Origin: CHINA
Brand Name: Atlas Copco
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T
Supply Ability: Based on Detailed Order

Core Drill Rig C8c Core Drilling Rig With High-Altitude Capability Atlas Copco

Description
Highlight:

Hydraulic drill rig

,

diamond core drilling



Core Drill Rig C8c Core Drilling Rig With High-Altitude Capability





 C8C: Powerful surface core drilling rig  (second hand.)



C8C is the most powerful rig in the Boyles range and yet easy to operate. This rig has a new feed system that further improves the high productivity that has become a key characteristic of the Boyles rigs. Boyles C8C has a depth capacity of 1 830 m. The newly designed level-wind wireline winch rolls the wire evenly across the full width of the drum.



The work environment around the rig has been carefully considered during development. All major components are located to allow easy access during maintenance. In order to control carbonemissions, the rig features a modern Tier III engine.


The rig maintains its strong power and high performance at high altitude, without the need for an additional high-altitude kit. The whole hydraulic system is optimized to reduce the effects of low air pressure in high altitude regions.










Features & benefits

  •
  • Reliability and trouble-free operation. Each and every component of a Boyles rig is designed to withstand harsh operational conditions with a minimum of service required.
  • The power to get any job done. The rig comes with a powerful, Tier III low emission engine that brings out the full capacity of the rig, giving you the power to get the job done.
  • Efficiency to collect more core per hour. The feed system is designed to optimize the penetration speed, generating as much core result as possible.
  • Personal safety first. The rig is equipped with pressure rolls on the main hoist, automatic stop functions on the drum and mast top, easily accessible emergency stops etc. All for the driller’s safety.
  • High usability lets you focus on the job at hand. All key components are accessible from a user-friendly and intuitive control panel.



Technical description





A powerful rig with high-altitude capacity

The Boyles C8C surface core drilling rig is part of the Boylesrange, a new generation of quality drilling rigs that combine productivity with a favorable life cycle cost.

The crawler mounted Boyles C8C is the most powerful rig in the Boyles range and yet easy to operate.



Safe and ergonomic

• Three E stops on the drill unit are standard.

• Drill operators are protected from the rotation unit by asafety cage.

• Possible to operate by feel while focusing on the drilling operation, thanks to the operator friendly control panel.



Favorable high-altitude capability

• The rig maintains its power at high altitude without the need for a high-altitude kit.

• The whole hydraulic system is optimized to reduce the effects of low air pressure in high altitude regions.



Reliable and powerful

The Boyles C8C is equipped with:

• A powerful main hoist.

• A rod holder with a long-life gas cartridge that handlesrods from BO to PO size and casing up to PW.

• A proven and reliable rotation unit with 4-speed gear box that can generate the high rates of penetration with very high torque when it is required.



• A reliable power unit, Cummins QSB 6.7 Tier III (179 kW),which brings out the full capacity of the rig, resulting in higher penetration rates to the bottom of the hole.



Radio remote controlled

The tramming functions of the rig can be precisely controlled from a safe distance, eliminating the danger of being on or next to the machine while in motion. If radio contact is lost, tramming will stop automatically.



Technical data


Technical Specifications
Depth capacity 2360 m
Product series Boyles
Height 11219 mm
Width 2500 mm
Length 11242 mm
Weight 14000 kg
Rod pull length 6 m
Max torque 5742 Nm
Max speed 1300 rpm
Feeding length 3.5 mm
Drill Rod Size B-P
Main Hoist 133 kN
Hole diameter 48 - 122 mm





Capacity drilling depth

B Wireline 2 360 m    /   N Wireline 1 830m
H Wireline 1 200 m    /   P Wireline 800 2 m



Weight

Boyles C8C          without Trido pump              13500 kg (29 700 lb)
Boyles C8C          with Trido pump              14 000 kg (30 800 lb)
