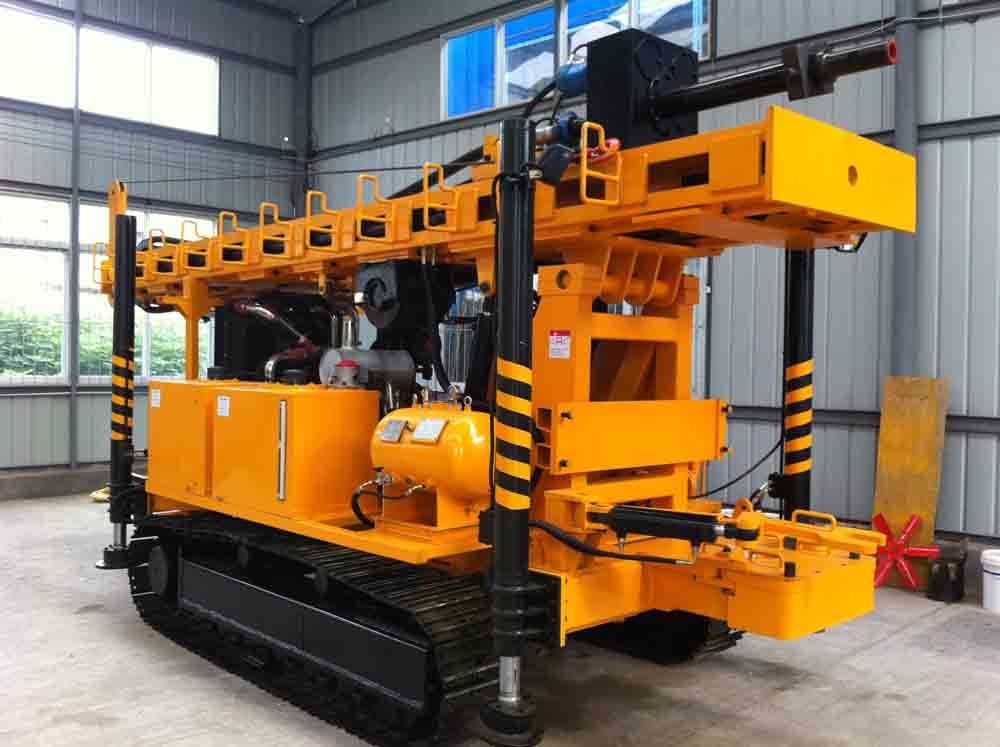

Multi-functional Core Drill Rig OUNCE WELL RC6 Water Well Drilling Rig

Multi-functional Core Drill Rig OUNCE WELL RC6 Water Well Drilling Rig
Multi-functional Core Drill Rig OUNCE WELL RC6 Water Well Drilling Rig Multi-functional Core Drill Rig OUNCE WELL RC6 Water Well Drilling Rig

Large Image :  Multi-functional Core Drill Rig OUNCE WELL RC6 Water Well Drilling Rig

Product Details:
Place of Origin: CHINA
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T
Supply Ability: Based on Detailed Order

Multi-functional Core Drill Rig OUNCE WELL RC6 Water Well Drilling Rig

Description
High Light:

Hydraulic drill rig

,

core drill rigs



Multi-functional Core Drill Rig OUNCE WELL RC6 Water Well Drilling Rig







 RC6 water well drilling rig is a newly developed multi-functional full hydraulic drilling rig, the rig is suitable for plains, hilly land, hot and cold regions ,the machine is tracked with self-propelled chassis, available in wells, core exploration, shallow coal bed methane and other construction.



It could meet to mud drilling tamping pipe hammer drilling, air-lift reverse circulation drilling and other drilling methods according to users’ requirements. The rig is low labor intensity, high drilling efficiency and high security for the workers.







Main specification of RC6





Items Specification
Diesel engine model YC6A
power 132kw/2000rpm
Drilling capability φ73 800m
φ89 600m
φ114 350m



Rotation of power head

Low gear 1 gear speed 0~45rpm 14000Nm
2 gear speed 0~90rpm 7000Nm
High gear 1 gear speed 0~170rpm 3600Nm
2 gear speed 0~340rpm 1800Nm
Push and pull ability of power head Maximum hoist capacity 28ton
Hoisting speed Full load 15m/min
Maximum hoisting speed Fast driving and reversing 30m/min
Hoist crane at the top Maximum hoist capacity 2000kg
Diameter of steel wire rope 12mm
Length of steel wire rope 30m
Ropewinding(optional) Hoisting power(single rope) 1200kg
Diameter of steel wire rope 6.3mm
Length of steel wire rope 1000m
Effective hoisting distance of mast 5.5m
Adjusting angle of mast 0°-90°
Drill angle 45°-90°
Feed distance 5500mm
Slide distance of mast 1000mm
Total weight 11 000kg
size 8000×2350×2500mm
