Product Details:
|
| High Light: | tungsten carbide,Tungsten Carbide inserts |
||
|---|---|---|---|

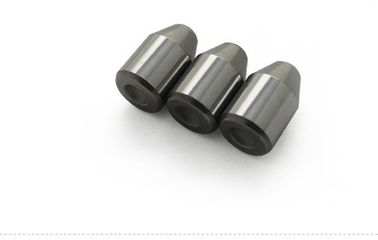

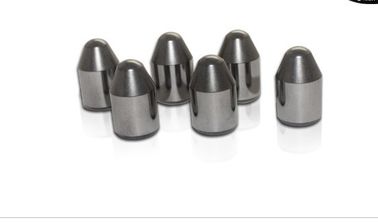

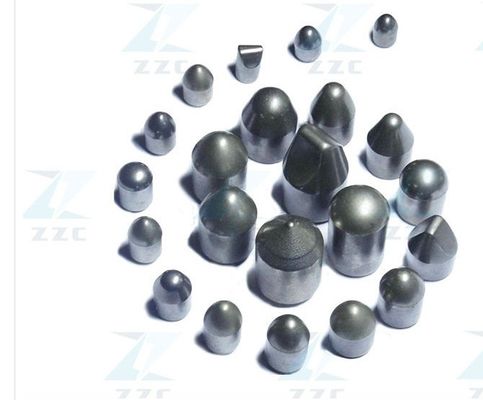

Tungsten carbide inserts
Tungsten carbide inserts for tricone bits
Tungsten carbide inserts for DTH hammer bits
Description:
Tungsten carbide Tools, carbide drilling bits, for Geology & Mining Tool application
Material grade & application recommended
Grade for geology and mining tool and application recommended
Applications:
Geology & Mining Tool
| Crade | Density | TRS | Hardness | USE | ||
| (g/cm2) | (N/mm2) | (HRA) | ||||
| YG8C | 14.7 | 2200 | 88 | Mostly used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations. | ||
| YG11 | 14.3 | 2100 | 88 | Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard,hard,and very hard formations. | ||
| YG11C | 14.35 | 2200 | 87.6 | Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard,hard,and very hard formations. | ||
| YG10C | 14.45 | 2450 | 87.6 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations. | ||
| YG15 | 14.0 | 1500 | 86.5 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations. | ||
Advantages of our products:
1) Made from 100% virgin raw material;
2) Produced with advanced equipments;
3) All products go through process and final inspection;
4) Free technical service online.
Main products:
1). Tungsten carbide blades
2). Tungsten carbide wear parts;
3). Tungsten carbide inserts, cutter tips,Blanks;
4). Geological and mining tools,
5). Tungsten carbide hammer
6). Drilling bits,button bits.
