Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE
Model Number: BWL NWL HWL PWL
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T
Supply Ability: Based on Detailed Order

Synthetic Diamond Reaming Shells PQ With Core Bit For Mining Exploration

Description
Features: Natural Or Synthetic Diamond Product Name: Reaming Shells
Machine Type: Drilling Tools Type: Core Drill Bit,Construction Tool Parts
Application: Geological Exploration, Mining Exploration, Hydrogeological Exploration And Oil, Gas, Exploration Model Number: BQ,NQ,HQ,RQ,PQ,T2,T6,146,TT48 Etc
Highlight:

diamond core bit

,

rock drilling tools

Synthetic Diamond Reaming Shells PQ With Core Bit For Mining Exploration




Product introduction

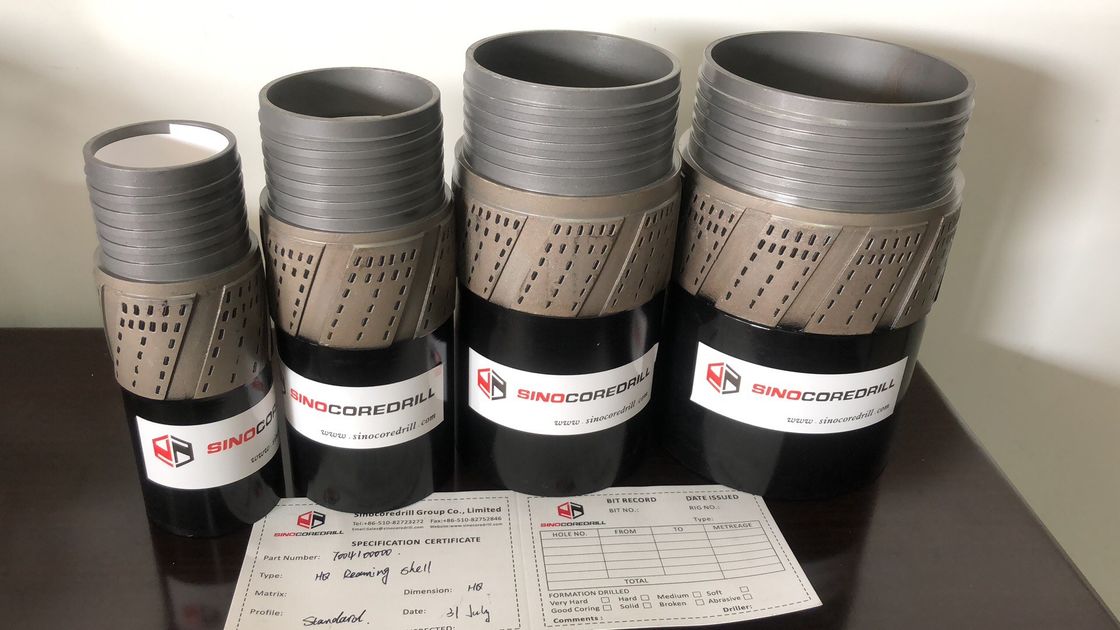

 Reaming shell is set with natural or synthetic diamond, and it is used to couple the drill bit with the core barrel. Its main function is to ream the hole to the correct constant specific diameter which ensures adequate clearance for the core barrel and sufficient clearance for the new bit which replaces an old one. It also acts as a stabilizer for drill bit.





Specifications



PQ Diamond reaming shell

  • Be used together with core bit
  • Protect borehole without hole shrinkage
  • Long service life
  • Adopt first level diamond material
  • First level quality and good price
  • Over 20 years Experience



Reaming shells (with double pads or three pads) are suitable to use in all formation conditions ranging from broken and abrasive to consolidated and non-abrasive. As this kind of reaming shell is physically longer than the standard type, it is necessary to use an appropriate inner tube extension in order to compensate for the difference in overall reaming shell length.

Specialisted in producing varies kinds of diamond core bits in different international standard size for soft, medieum to hard rock formations.

 With ISO certificate & quality control.




Technical Parameters


Core Barrel

Specification



Reaming Shell





Maximum

Minimum

lnch

mm

lnch

mm

AQ

1.895

48.13

1.885

47.88

BQ

2.365

60.07

2.355

59.82

NQ

2.985

75.82

2.975

75.57

HQ

3.79

96.27

3.775

95.89

PQ

4.835

120.81

4.82

122.43

T2-101

3.994

101.44

3.984

101.19

T6-101

3.996

101.51

3.984

101.21




Q Series  AQ, BQ, NQ, HQ, PQ
T Series T36, T46, T56, T66, T76, T86, TEW, TBW, TNW
WF Series HWF, PWF, SWF, UWF, ZWF
 WT Series  RWT, EWT, AWT, BWT, NWT, HWT (Single Tube/Double Tube)
 WG Series:  EWG, AWG, BWG, NWG, HWG (Single Tube/Double Tube)
 WM Series  EWM, AWM, BWM, NWM
 T2/T6 Series  T256, T266, T276, T286, T2101/T676, T686, T6101, T6116, T6131, T6146, T6H
 Others  NMLC, HMLC,3C,4C,6C TNW
