| Product Name: | Horizontal Directional Drilling Rigs | Power Type: | Hydraulic |
|---|---|---|---|
| Motor Power: | 450KW | Spindle Torque: | 70000N·m |
| Max. Rotation Speed: | 160 Rpm | Material: | High-solid Steel |
| High Light: | hdd horizontal directional drilling,horizontal directional drilling machine |
||

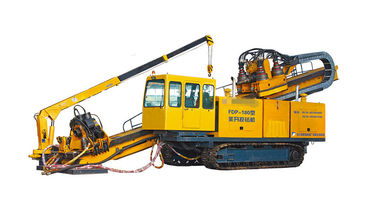

Truck Crawler HDD Rig With 1800KN Pull Capacity For Underground Pipe Laying
FDP-180 horizontal directional drilling rig, integrated with the advantages and characteristics of various HDD rigs in China and abroad, is a high-sufficient drill rig manufactured by us based on more than 10 years designing experiences.
Equipped with the diesel engine at the power of 450KW, the drill rig is powerful enough to deal with various problems. The all new FDP-180 provides 1800KN of feeding&pulling force and Max. 70000N·m. Torque to gain successful performances. The rack and pinion transmission system is designed with advanced technology, which ensures much more reliable and safer movement of drill head. The high-quality crawler makes it possible for drill rig to move quickly. The operator's cabin is with wide field of view and good sound insulation. All sorts of monitoring gauges are mounted in the cabin, which makes it simple to operate the rig. A crane with capacity of three tons is attached with the main machine to ensure convenient working for operator.
The main hydraulic components are all famous brand from European and American suppliers, transfer case and reducer are adopted from well-known European factorys, thus reliable operation of the rig is guaranteed.
FDP-180 HDD Rig is mainly used for the civic construction especially for underground pipe laying, and with 1800KN pull capacity.
|
Main Drill Rig |
|
|
Max. Feed Thrust/ Feed Pull |
1800KN (404640 lbf) |
|
Feed Thrust/ Feed Pull System |
shift :9.5 m/min (31.2 feet/min) |
|
shift :21 m/min (68.9 feet/min) |
|
|
shift 32 m/min(105 feet/min) |
|
|
Rotation Driving |
Gear transmission, stepless speed regulating |
|
Motor |
|
|
Manufacture |
Weichai Power |
|
Rated Value |
470KW (640HP) |
|
Operational State |
Dual Power System Working |
|
Operators Cab |
Equipped with Air-conditioner |
|
Dimension and Gross Weight |
|
|
Dimension(L×W×H) |
14.5×3.15×3m (47.6×10.3×9.8 feet) |
|
Gross Weight |
42 T(92610 lb) |
|
Mast Entrance Oblique Angle |
8°16° |
|
Environmental Standard and Service |
Engine Emissions and Noise Meeting European Standard |
|
Drilling Tool |
|
|
Drilling Rod Be Used |
"5", 6 5/8 |
|
Reaming Shell |
325;530;660;760;900;1100mm (12.8;20.9;26.0;29.9;35.4;43.3 inch) |
|
Shackles |
Clamp Holder Centering by Itself |
|
Clamper /Break-out Tong |
Distance adjustable with accurate, stable and reliable breaking-out |
|
Max. Make-up Torque |
70 KN·m (51590 lbf·ft) |
|
Max. Break-out Torque |
140 KN·m (103180 lbf·ft) |
|
Crane On the Rig |
3 T(6615 lb) Straight-arm Grane |
|
Mast of Rig |
Length of Mast 14 Meters(45.9 feet) |
|
Hydraulic Mud Pump |
Full Hydraulic Driving, Flux Stepless Adjustable. |
|
Flux Rate |
01500 L/min(0-396 US Gallons/min) |
|
Pressure |
010 Mpa(0-1450 psi) |
|
Chassis |
Track Assembly Type |
|
Accessory |
|
|
Pressure, flux rate, revolution and other more than ten dates will be shown in figures. This is easy for analysis and judgment of problems and condition in the performance process. |
|
