Product Details:
|
| Features: | Wear Resistant / High Fatigue Strength | Product Name: | HDD Drilling Tools |
|---|---|---|---|
| Type: | HDD Drill Rod | Material: | Baosteel |
| Usage: | Drill Pipe For Horizontal Directional Drilling Machine | Grade: | R780,G105 And S135 |
| High Light: | horizontal directional drilling tools,no-dig tools |
||

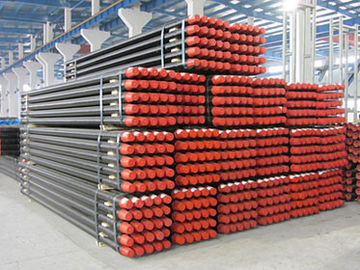

HDD Drilling Tools - HDD Drill Rod / Pipe Forged R780 , G105 and S135 Grade
HDD drill rod/pipe Forged one piece
Such structure is designed to reduce the resistance that a drill faces during the construction process.
Usage: drill pipe for horizontal directional drilling machine.
Material: Baosteel( China best seamless steel tube supplier)
Grade: R780,G105 and S135.
Thread: Vermeer, Ditch Witch, Case ,American Auger and other Chinese HDD manufactures. Such as Drillto, DW/TXS,Goodeng, Hanlyma,XCMG and so on.
Advantage:
A: Ablity
From 2009,we provide OEM service for Vermeer China,now we also have cooperation with Ditch Witch Asia Agent. We also have relationship with many China main HDD manufactures.
B: Quality
1,The only one in China who do heat treatment for the whole body of the drill rod. Our special Design heat treatment line is highly valued by Vermeer in China.
2,Excellent forging tech in China.
3, Adopting double shoulder for improving mechanical property.
Technical Parameters:
| Grade | Yield Strength | Tensile Strength | Extension Rate | Impact Power Akv J | ||||
| Min | Max | Min | Min | 10×10 | ||||
| Psi | Mpa | Psi | Mpa | Psi | Mpa | % | (-20°C) | |
| G105 | 105,000 | 724 | 135,000 | 931 | 115,000 | 793 | 15 | ≥68 |
| S135 | 135,000 | 931 | 165,000 | 1138 | 145,000 | 1000 | 13 | ≥54 |
| Specification of the forged drill Pipe for Case HDD machine |
| Model Of the rig | connection | Dimension of the drilling Pipe | Tempering and Quenching | Min Bending Radius | Max Torque | ||||
| OD of the Tube | Wall Thickness | OD of the joints | Working Length | Weight | |||||
| (mm) | (mm) | (mm) | (m) | ( kg) | Grade | (m) | Nm | ||
| Case 6030 | Case | 60.3 | 7.5 | 66.7 | 3.048 | 35 | S135 | 33 | 6300 |
| Specification of the forged drill Pipe for Chinese Brand HDD machine |
| Size | Connection | Dimension of the drilling Pipe | Tempering and Quenching | Min Bending Radius | Max Torque | ||||
| OD of the Tube | Wall Thickness | OD of the joints /upset | Working Length | Weight | |||||
| (mm) | (mm) | (mm) | (mm) | ( kg) | Grade | (m) | Nm | ||
| 50x2000mm | DH50 | 50 | 6.5 | 57 | 2000 | 20 | S135 | 29 | 3000 |
| 60X3000mm | DH60-1 | 60 | 6.5 | 66.7 | 3000 | 35 | S135 | 33 | 6300 |
| 60X3000mm | DH60-1 | 60 | 6.5 | 70 | 3000 | 35 | S135 | 33 | 6300 |
| 73X3000mm | NC23(DH23) | 73 | 7.5 | 80 | 3000 | 45 | S135 | 45 | 13000 |
| 73x3000mm | NC26(2 3/8IF) | 73 | 10 | 87 | 3000 | 55 | S135 | 51 | 16000 |
| 83X3000mm | D80 Firestick1 | 83 | 9 | 92 | 3000 | 58 | S135 | 65 | 18000 |
| 83x4500mm | D80 Firestick1 | 83 | 9 | 92 | 4500 | 84 | S135 | 65 | 18000 |
| 89X4500mm | NC31(2 7/8IF) | 89 | 10 | 104.8 | 4500 | 100 | S135 | 72 |
24000 |
| Specification of the forged drill Pipe for Vermeer HDD machine |
| Model Of the rig | Connection | Dimension of the drilling Pipe | Tempering and Quenching | Min Bending Radius | Max Torque | ||||
| OD of the Tube | Wall Thickness | OD of the joints /upset | Working Length | Weight | |||||
| (mm) | (mm) | (mm) | (mm) | ( kg) | Grade | (m) | Nm | ||
| D7×11, D9X13 | Firestick 1 | 42 | 6.5 | 48 | 1829 | 12 | S135 | 29 | 2000 |
| D10X14,D10X15 | Firestick 1 | 42 | 6.5 | 48 | 3048 | 20 | S135 | 29 | 2000 |
| D16×20,D18×22 | Firestick 1 | 48 | 6.5 | 54 | 3048 | 23.5 | S135 | 30 | 3000 |
| D24X26 | Firestick 1 | 54 | 7 | 57 | 3048 | 25 | S135 | 31 | 4000 |
| D24×40 | Firestick 1 | 60.3 | 7.5 | 66.7 | 3048 | 35 | S135 | 33 | 6300 |
| D40X40 | Firestick 1 | 60.3 | 7.5 | 66.7 | 4572 | 50 | S135 | 33 | 6300 |
| D33×44, D36×50 | Firestick 1 or 2 | 60.3 | 7.5 | 70 | 3048 | 36 | S135 | 33 | 6772 |
| D33×44, D36×50 | Firestick 1 or 2 | 60.3 | 7.5 | 70 | 4572 | 51 | S135 | 33 | 6772 |
| D36×50 | Firestick 1 | 60.3 | 7.5 | 70 | 3048 | 36 | S135 | 33 | 6772 |
| D36×50 | Firestick 1 | 60.3 | 7.5 | 70 | 4572 | 51 | S135 | 33 | 6772 |
| D36×50 | Firestick 1 | 66.7 | 8 | 78 | 3048 | 40 | S135 | 40 | 9000 |
| D36×50 | Firestick 1 | 66.7 | 8 | 78 | 4572 | 55 | S135 | 40 | 9000 |
| D50×100/Uni60x70 | Firestick 1 | 73 | 10 | 83 | 3048 | 55 | S135 | 51 | 16000 |
| D50×100 | Firestick 1 | 73 | 10 | 83 | 4572 | 78 | S135 | 51 | 16000 |
| D50X100/D80×100 | Firestick 1 | 89 | 10 | 92 | 4572 | 96 | S135 | 72 | 18000 |
| D100×120 | Firestick 2 | 89 | 10 | 104 | 6096 | 130 | S135 | 72 | 24000 |
| D100×120 | Firestick 1 | 89 | 11.5 | 111.5 | 6096 | 150 | S135 | 80 | 27000 |
| Specification of the forged drill Pipe for Ditch Witch HDD machine |
| Model Of the rig | Connection | Dimension of the drilling Pipe | Tempering and Quenching | Min Bending Radius | Max Torque | ||||
| OD of the Tube |
Wall Thickness (mm) |
OD of the joints /upset | Working Length | Weight | |||||
| (mm) | (mm) | (mm) | (m) | ( kg) | Grade | (m) | Nm | ||
| JT820/920 | DW | 42 | 6.5 | 50.8 | 2 | 13 | S135 | 26 | 2000 |
| JT920L | DW | 42 | 6.5 | 50.8 | 3 | 21 | S135 | 26 | 2000 |
| JT1720 /1720M1 | DW | 52 | 6.5 | 63 | 3 | 25 | S135 | 30 | 3200 |
| JT2020M1 | DW | 60 | 7.5 | 66.7 | 3 | 35 | S135 | 33 | 6300 |
| JT2720 | DW | 60 | 7.5 | 70 | 3 | 36 | S135 | 33 | 6772 |
| JT2720M1/3020M1 | DW | 68 | 8 | 76 | 3 | 40 | S135 | 33 | 7000 |
| JT4020 | DW | 73 | 10 | 82.5 | 4.5 | 51 | S135 | 51 | 16000 |
| JT4020M1 | DW | 83 | 9 | 89 | 4.5 | 84 | S135 | 65 | 18000 |
| JT7020 /8020 | DW | 89 | 10 | 101.6 | 4.5 | 100 | S135 | 72 | 24000 |
|
Remark: we manufacture forged one piece drill rod compatible for all Ditch Witch HDD machine |
