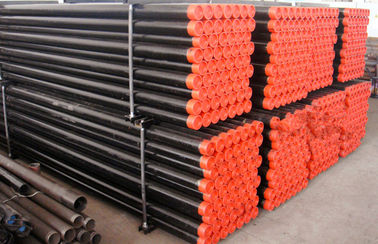

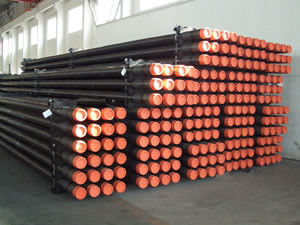

Wireline WL threads Core Drilling Rod BWL NWL HWL PWL For Mining Exploration

Wireline WL threads Core Drilling Rod BWL NWL HWL PWL For Mining Exploration

Specifications

1.  high quality alloy tube
2.  thru-wall heat treated tube body
3.  consistent concentricity, straightness
4.  tapered threads

Raw materials:

We choose the best steel tubes in the market to manufacture our drill rods and pipes. Spot check will be conducted after the steel tubes delivered to company. We will make sure the compositions and specifications match the inspection report form the suppliers.

Based on the depth of drill bore, Q series wireline core drill rods are classified into A and B grades. A grade drill rod is entire-length or ends thermal processed and B grade drill rod is entire-length processed.

Material:30CrMnSiA or 45MnMoB(A grade), XJY850 or BG850( B grade)

Heat treatment control:

Heat treatment will greatly improve the material strength and increase the thread wear life of the rods and casings. We conduct either tru-wall or both ends heat treatment to the tube body. After heat treatment, strength, hardness, straightness and concentricity of the treated tubes will be tested in our lab.

Thread opening process:

Accuracy of threads will determine the use effects and life time of drill rod and casings.
CNC latches and form cutter are used in thread opening processing to minimize error made by anthropic factors.

Additional thread treatment:

Surface of the threads will be cleaned to remove burr adhered after threads are opened.
Afterwards, the tread surface will be phosphated to improve surface conditions.

Material Inspection certificate

Wireline core drill rod  technical parameters:

And we can supply the following products:

 1)Drill rod: BQ, NQ, HQ, PQ

     casing tube: BW, NW, HW, PW, HWT, PWT

2)Bit: impregnated diamond bits, tri-tube core barrel, PDC diamond bit

3)Reaming shell: BQ NQ HQ PQ series

4)Core barrel: BQ, NQ, HQ, PQ head assembly and parts and overshot assembly

5)Drill tool: lifting tool, wrench, adapter sub, hoisting plug, water swivel, overshot, outer tube & inner tube wrench,  foot clamp, recovery tap, etc.
