Product Details:
|
| Type: | Drill Rod | Size: | BWL HWL NWL PWL |
|---|---|---|---|
| Length: | 3m 1.5m | HS: | 7304512 |
| Material: | 30CrMnsia XJY850 | ||
| Highlight: | oil hardening drill rod,metric drill rod |
||
Whole Pipe Hardening And Tempering Wireline Drill Rod Coring Rods For Mining Exploration
Specifications
Q thread rods are the undisputed, worldwide choice for wireline coring drill rods.
2. thru-wall heat treated tube body
3. consistent concentricity, straightness
4. tapered threads
Features:
TUBING
• High quality alloy steel tubing
• Consistent concentricity, straightness and heat treatment
• All tubing available in DCDMA sizes
THREAD
• Tapered, course threads (3 threads per inch) provides easy make and break
• Load efficiency of 30% provides sufficient strength for average applications
THRU-WALL HEAT TREATMENT
• Provides 140% material strength
• Heat treated box threads significantly increases thread wear life
CASE HARDENING
• Significant research, development and field testing has resulted in a hardening process that is unmatched in the marketplace
• Pin thread crest is hardened to nominal 55 HRc to eliminate damaging ‘adhesion’ wear
• Eliminates the transfer of wear material back and forth which is what happens between threads of equal hardness, leading to large scale galling and joint seizing
Technical Parameters
Wireline drill rod AQ BQ NQ HQ PQ
| size | OD (mm) | ID(mm) |
| AQ | 44.7 | 37.3 |
| BQ | 55.7 | 46.1 |
| NQ | 70 | 60.2 |
| HQ | 89 | 78 |
| PQ(PHD) | 114.5 | 101.5 |
Drill rod DCDMA size AW-HW
| size | OD (mm) | ID(mm) |
| AW/AWJ/AWY | 43.7 | 30.7 |
| BW/BWJ/BWY | 54 | 38 |
| NW/NWY | 66.8 | 51 |
| HW | 89 | 71 |
|
Decription |
OD(mm) |
ID(mm) |
Weight(Kg/3m) |
|
Rod, BQ 3.0 m Enhanced |
55.60 |
46.10 |
18.00 |
|
Rod, NQ 3.0 m Enhanced |
69.90 |
60.30 |
24.00 |
|
Rod, HQ 3.0 m Enhanced |
88.90 |
77.80 |
35.00 |

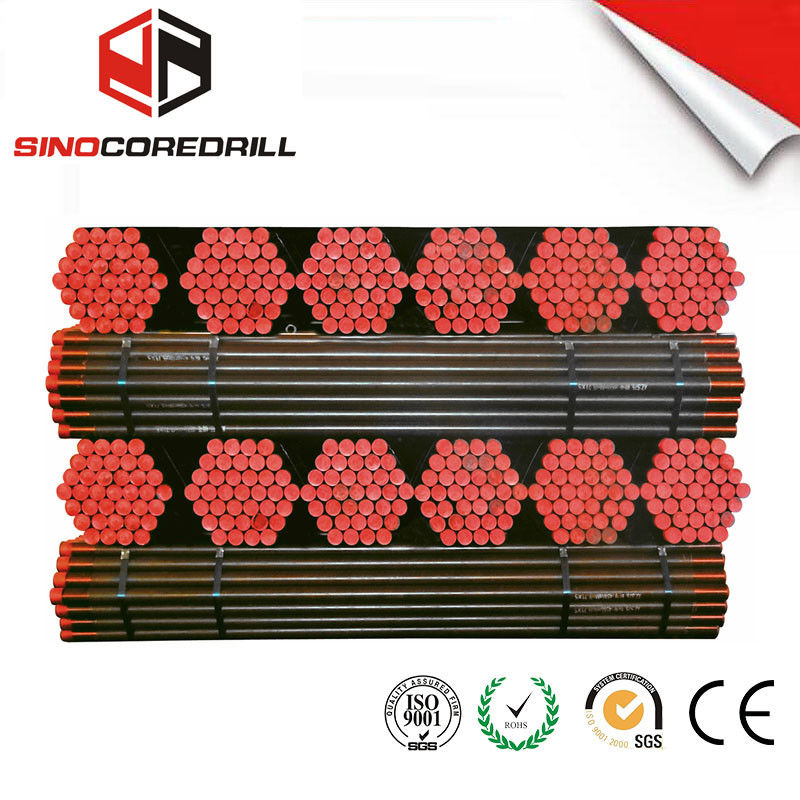

Packing
Concerning the packing, it is packaged by iron belts.
BQ Bundled Specifications (Steel Belt):
3.0m/10ft BQ Drill Rod (37 Pieces)
Dimensions (L×W×H): 3.0×0.4×0.4
Volume: 0.5 m3
Gross Weight: 670 kg
BQ Bundled Specifications (Iron Frame):
3.0m/10ft BQ Drill Rod (30 Pieces)
Dimensions (L×W×H): 3.0×0.35×0.3
Volume: 0.32 m3
Gross Weight: 550 kg
NQ Bundled Specifications (Steel Belt):
3.0m/10ft NQ Drill Rod (37 Pieces)
Dimensions (L×W×H): 3.0×0.5×0.5
Volume: 0.75 m3
Gross Weight: 900 kg
NQ Bundled Specifications (Iron Frame):
3.0m/10ft NQ Drill Rod (25 Pieces)
Dimensions (L×W×H): 3.0×0.38×0.39
Volume: 0.43 m3
Gross Weight: 610 kg
HQ Bundled Specifications (Steel Belt):
3.0m/10ft HQ Drill Rod (37 Pieces)
Dimensions (L×W×H): 3.0×0.625×0.625
Volume: 1.2 m3
Gross Weight: 1300 kg
HQ Bundled Specifications (Iron Frame):
3.0m/10ft HQ Drill Rod (25 Pieces)
Dimensions (L×W×H): 3.0×0.46×0.47
Volume: 0.65m3
Gross Weight: 890 kg
