Compact Structure Core Drill Rig Mining Exploration Borehole Full Hydraulic Surface

Compact Structure Core Drill Rig Mining Exploration Borehole Full Hydraulic Surface
Compact Structure Core Drill Rig Mining Exploration Borehole Full Hydraulic Surface
Compact Structure Core Drill Rig Mining Exploration Borehole Full Hydraulic Surface Compact Structure Core Drill Rig Mining Exploration Borehole Full Hydraulic Surface Compact Structure Core Drill Rig Mining Exploration Borehole Full Hydraulic Surface Compact Structure Core Drill Rig Mining Exploration Borehole Full Hydraulic Surface

Large Image :  Compact Structure Core Drill Rig Mining Exploration Borehole Full Hydraulic Surface

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: ISO9001 ,CE
Model Number: CR15
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 1 MONTH

Compact Structure Core Drill Rig Mining Exploration Borehole Full Hydraulic Surface

Description
Type: Full Hydraulic Surface Core Drill Rig Model: CR15
Engine: Cummins QSB6.7 (EU Stage IIIA) 178kw Drilling Capacity: BQ 2050m NQ 1650m HQ 1350m PQ 950m
Transport Dimensions: 5980×2240×2480mm WEIGHT: 10500Kg
Highlight:

Full Hydraulic Surface Core Drill Rig

,

Compact Structure Core Drill Rig

,

Mining Exploration Borehole Core Drill Rig

CR15.pdf


NQ 1650m HQ 1350m Mining Exploration Borehole Full Hydraulic Surface Coring Drill Machines





Main Performance Parameters of CR-15



Self contained operator panel with manually operated hydraulic control valves.

12 ton capacity mainline hoist

25 ton pullback with 6 m rod pull, direct-coupled feed cylinder with 3.7 m stroke

0-90 degree mast angle capability

Hydraulic Chuck with 243 kN holding capacity

Hydraulic powered rod clamp with BQ rod to HWT casing jaw sizes

PQ foot clamp, spring close / hydraulic open for failsafe operation







Diesel Engine Model/ Displacement WP6G240E330 (EU Stage IIIA)/ 6.7L
Power/ Rated RPM 176 kW (240HP)/ 2200rpm
Drilling Capacity BQ 2050 m HQ 1350 m
NQ 1650 m PQ 950 m
Drill Head Rotation Motor Two-speed Hydraulic Motor
RPM Three Shifts Step-less Change: 0-1250 RPM
Head Opener 600 MM
Hydraulic Chuck(PQ)

Hydraulically opened

Axial Holding Capacity of 243000 N

Max. Torque 6200 N·m
Hold Diameter 121 mm
Max. Lifting capacity of Spindle 235 kN
Max. Feeding Power 80 kN
Capacity of Main Hoist Hoisting Speed (single wire) 0-65 m/min(bare drum)
Hoisting force (single wire) 120 kN
Steel Wire Diameter 20-22 mm
Steel Wire Length 45 m
Capacity of Wireline Hoist Hoisting Force (single wire) 15 kN(3372 lbf) (bare drum)
Steel Wire Diameter 6-8 mm
Steel Wire Length 2200 m
Mast Mast Height 9.5 m
Drilling Angle

45º off horizontal to 90ºvertical down



Feeding Stroke 3700 mm
Slippage Stroke 1000 mm
Feed Pull 25 ton
Feed Thrust 9 ton
Pull Rod  3m or 6m(9.84feet or 19.68feet)
Mud Pump Output volume 250 L/min
Discharge pressure 8.0 Mpa
Foot Clamp Clamping Scope

55.5-118 mm

through hole Ф165mm

Others Weight 10.50 ton

(L × W ×H )

Transport Dimensions

5880×2240×2480mm
Transport Way Steel Crawler

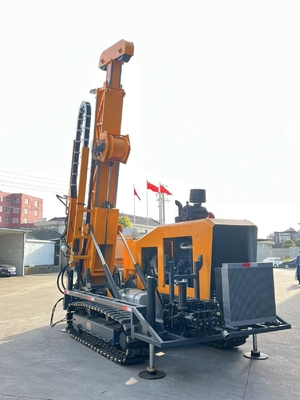

Compact Structure Core Drill Rig Mining Exploration Borehole Full Hydraulic Surface 0

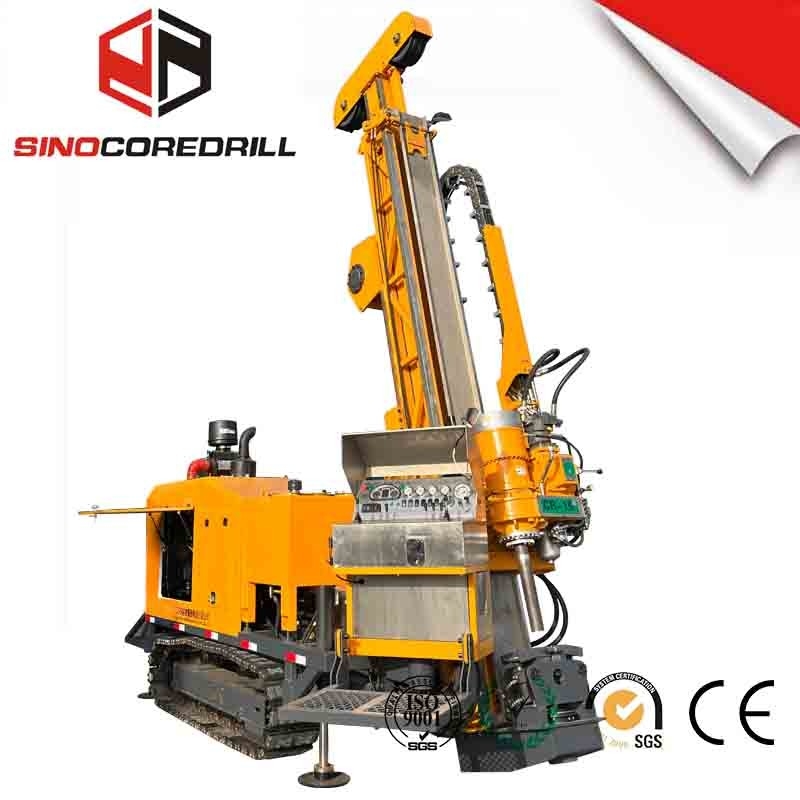

Compact Structure Core Drill Rig Mining Exploration Borehole Full Hydraulic Surface 1

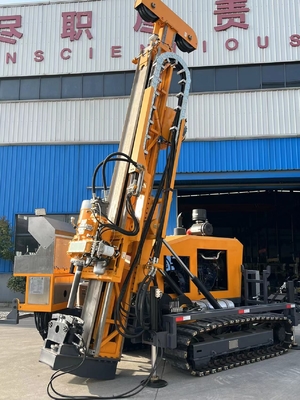

Compact Structure Core Drill Rig Mining Exploration Borehole Full Hydraulic Surface 2
