Product Details:
|
| Type: | Wireline Core Drilling Rod | Length: | 3m 1.5m |
|---|---|---|---|
| Size: | BWL HWL HWL PWL | Material: | 30CrMnSia XJY850 |
| HS: | 7304512 | Application: | Mining Exploration |
| Weight NQ: | 24KG | Weight HQ: | 34KG |
| Highlight: | Heat Treated Wireline Drill Rod,high Grade Wireline Drill Rod,Seamless Steel Wireline Drill Rod |
||

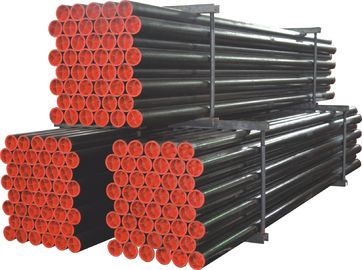

HEAT TREATED WIRELINE DRILL RODS SEAMLESS STEEL TUBE HIGH-GRADE STEEL PRECISION WIRE-LINE CORE DRILLING ROD
Sinocoredrill Drilling Products flush joint casing and drilling rods are recognized worldwide for their quality. Our rods and casing are threaded by
a qualified team with many years of experience in drilling product manufacturing. Each and every rod and casing undergoes strict quality
control throughout the entire manufacturing process.
Our drill rod can work under a huge inner and outer pressure, and bear the twisted and vibrating environment. It can reduce the work intensity of our drillers. We can reduce costs to enhance efficiency.
Our company can provide a large demand of drill rod with the high quality and the nice after-sales service
Size form AQ BQ NQ HQ to PQ, parallel threaded drill rods, DCDMA size AW-HW, and Metric sizes 42mm to 90mm, Tapered threaded drill rods, DCDMA sizes AWY-NWY, AWJ, BWJ and S75 drill rods
Technical Information
Drill Rods
| Size | OD(mm) | ID(mm) | Weight | Threads Pitch | Pin Length |
| B-WL | 55.6 | 46 | 18KGS /3m(10ft) | 8.5mm | 44.45mm |
| N-WL | 69.9 | 60.3 | 24KGS /3m(10ft) | 8.5mm | 44.45mm |
| H-WL | 88.9 | 77.8 | 34KGS/3m(10ft) | 8.5mm | 44.45mm |
| P-WL | 114.3 | 101.6 | 53KGS/3m (10ft) | 10.2mm | 63 mm |
| Double tube surface | ||||
| Size(surface exploration drill) | Metric system(mm) | Imperial system(in) | ||
| Hole diameter | Core diameter | Hole diameter | Core diameter | |
| BWL | 60 | 36.4 | 2.36 | 1.43 |
| NWL | 75.7 | 47.6 | 2.98 | 1.88 |
| HWL | 96.1 | 63.5 | 3.78 | 2.5 |
| PWL | 122.7 | 85 | 4.83 | 3.34 |
| Triple tube surface | ||||
| NWL3 | 75.7 | 45 | 2.98 | 1.78 |
| HWL3 | 96.1 | 61.1 | 3.78 | 2.41 |
| PWL3 | 122.7 | 83 | 4.83 | 3.27 |
| WL series Rod parameter-geological steel pipe-entire length thermal treatment, NC lathe with former cutters | |||||
| Spec. | Unit | BWL | NWL | HWL | PWL |
| OD/ID | mm | 55.6/46 | 71/60 | 89/77.8 | 114.3/101.6 |
| Thickness | mm | 4.8 | 5.5 | 5.6 | 6.35 |
| Length | m | 1.5 or 3 | 1.5 or 3 | 1.5 or 3 | 1.5 or 3 |
| Weight | kg/m | 6.01 | 8.8 | 11.51 | 17.3 |
| thread length | mm | 44.45 | 44.45 | 44.45 | 63.5 |
| thread pitch | thread/inch | 3 | 3 | 3 | 2.5 |
| box thread tooth height | mm | 0.76 | 0.76 | 0.76 | 1.17 |
| pin thread tooth height | mm | 0.88 | 0.88 | 0.88 | 1.27 |
| thread tooth angle | . | 29 | 29 | 29 | 29 |
| tensile resistance(A series) | kn | 400 | 530 | 510 | 565 |
| tensile resistance(B series) | kn | 450 | 615 | 625 | 660 |
| bore depth | m | 1200 | 1000 | 900 | 800 |
