Product Details:
|
| Features: | High Precision, High Hardness, Corrosion Resistant | Product Name: | Drill Pipe Casing |
|---|---|---|---|
| Material: | Alloy Steel | Usage: | Well Drilling, Drill Deep Hole |
| Technique: | Cold Rolled | Depth: | 2000m |
| High Light: | Casing Drill Rod,High Precision Wireline Drill Rod,Alloy Steel Drill Pipe |
||

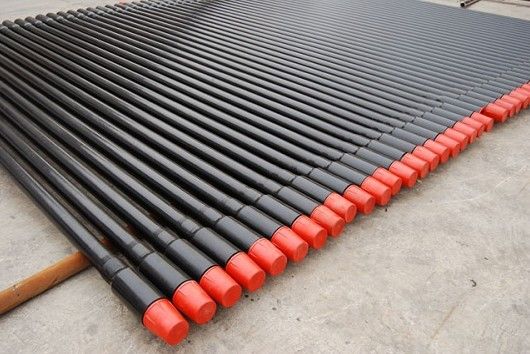

Whole Hardening And Tempering Wireline Drill Rod Heat Treatment 3m 1.5m Wireline Drill Pipe
Description :
Our drill rods are all manufactured by CNC machines. They're made of high quality alloy steel.All our drill rods are heat-treated. Our rods will be also suited to drill deep holes. From drillers' feedback, our rods have drilled up to 2000 meters depth.
Specifiction:
Size Available:
Wireline Series: B, N, H, P
"WJ" Design: AWJ, BWJ, NWJ, KWJ, HWJ
"W" Design: RW, EW, AW, BW, NW, HW
Metric Series: 33, 42, 50
We also can produce various sizes of casing tubes.
All Chinese Sizes
Customer's special requirement is also available.
|
Type |
Bit O.D/I.D |
Reaming Shell O.D/I.D |
Outer Tube O.D/I.D |
Inner Tube O.D/I.D |
Rod O.D/I.D |
|
|
SC56 |
Ø56/ Ø35 |
Ø56.5 |
Ø56/ Ø45 |
Ø41/ Ø37 |
Ø53/ Ø44 |
|
|
S59 |
Ø59.5/ Ø36 |
Ø60 |
Ø58/ Ø49 |
Ø43/ Ø68 |
Ø55.5/ Ø46 |
|
|
S75 |
Ø75/ Ø 49 |
Ø75.5 |
Ø73/ Ø63 |
Ø56/ Ø51 |
Ø71/ Ø61 |
|
|
S95 |
Ø95/ Ø64 |
Ø95.5 |
Ø89/ Ø79 |
Ø73/ Ø67 |
Ø89/ Ø79 |
|
|
BQ |
Ø59.5/ Ø 36.5 |
Ø60 |
Ø57.2/ Ø46 |
Ø42.9/ Ø38.1 |
Ø55.6/ Ø46 |
|
|
NQ |
Ø74.6/ Ø47.6 |
Ø75.8 |
Ø73/ Ø60.3 |
Ø55.6/ Ø50 |
Ø70.5/ Ø60.5 |
|
|
HQ |
Ø95.6/ Ø63.5 |
Ø96 |
Ø92.1/ Ø77.8 |
Ø73/ Ø66.7 |
Ø89/ Ø77.8 |
