Product Details:
|
| High Light: | Hydraulic drill rig,core drill rigs |
||
|---|---|---|---|

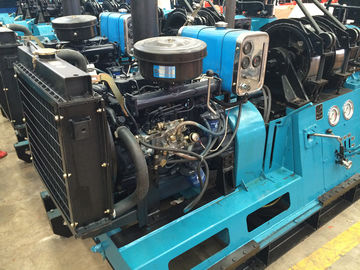

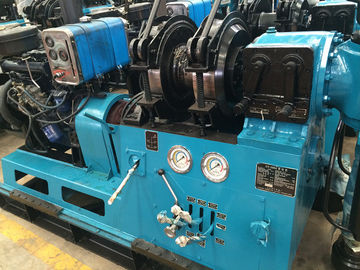

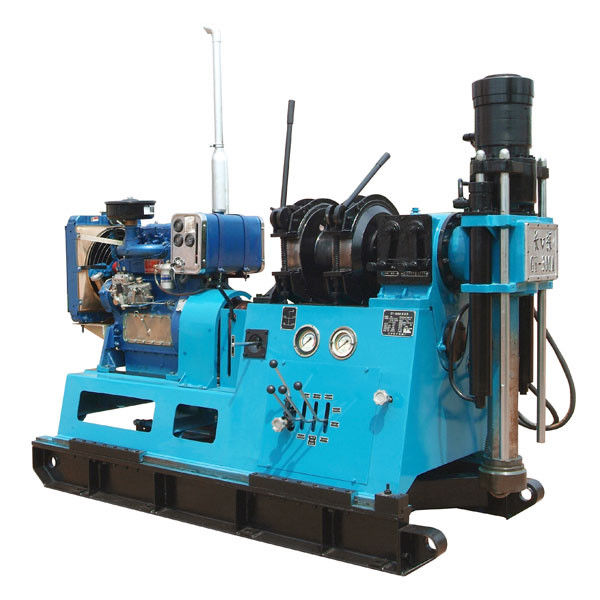

High Performance Core Drill Rig Small Diamond For Shallow Hole
Description:
XZ -300A is a core drilling rig for middle and shallow hole. It applies not only to alloy and diamond core drilling with different calibres but also can be used for geological prospecting works, drilling of fluid mineral in superficial layer and shot holes and ventilation holes drilling, drilling on hydrology, water wells and big calibres. It has been widely used on areas such as road and railway construction, water resources and hydropower and architecture.
Basic Data:
| Drilling Dia | 93mm 150mm 200mm 300mm | ||
| Drilling Depth | 350m 280m 220m 120m | ||
| Swive Head | |||
|
Spindle Speed (r/min) |
Forward | 58 101 160 221 234 406 640 | |
| Reverse | 46 183 | ||
| Maximum Torque | 3000N*m | ||
| Spindle Stroke | 600mm | ||
| Maximum Cylinder lifting force | 60KN | ||
| Maximum Cylinder driving force | 45KN | ||
| Hoist | |||
| BobbinDiameter | 200mm | ||
| Rope Diameter | 14mm | ||
| Rope Capacity(5 floor) | 45m | ||
| Lifting Capacity(single pipe) | 30KN | ||
| Bobbin linespeed (the second layer) | 0.45 0.785 1.24 1.71m/s | ||
| Mobile Oil Cylinder Stroke | 460mm | ||
| Distance of Step Aside The Hole | 260mm | ||
| Oil Pump | |||
| Name | Wheel oil pump | ||
| Type | CB-E25 | ||
| Displacement | 25mL/min | ||
| Normal Rated Speed | 1500 r/min | ||
| Normal Pressure | 16MPa | ||
| Maximum Pressure | 20MPa | ||
| Power | Diesel Engine | Motor | |
| Type | 395K2 | Y180L-4 | |
| Rated Power | 20KW | 22KW | |
| Rated Speed | 1500r/min | 1470r/min | |
| Dimensions | 2510*950*1820mm | ||
| Weight(power not incluced) | 1300kg | ||
