|Type:||Diamond Core Bit||Szie:||B N H P|
core hole drill bits,
diamond core drill bit
High Speed Concrete Core Drill Bits , Diamond Core Hole Drill Bits

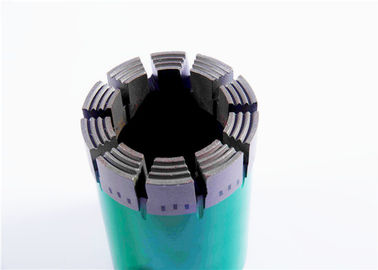

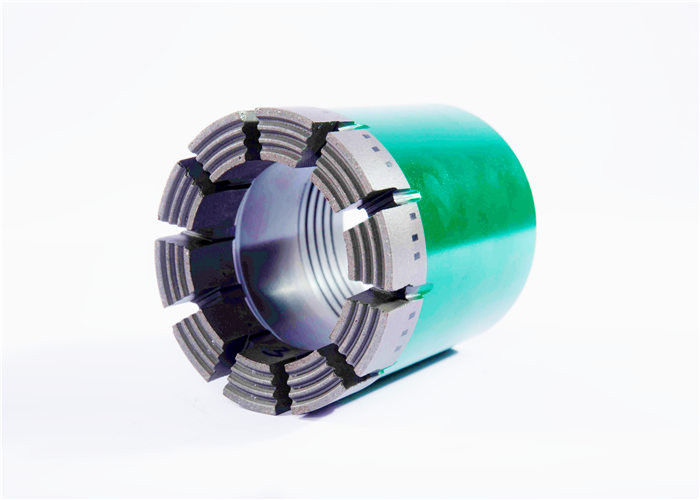

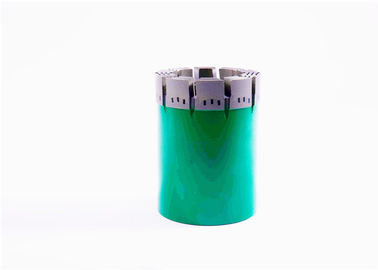

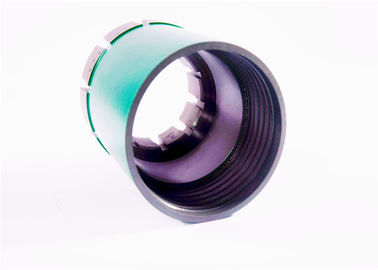

Impregnated Diamond Core Bits are manufactured with very small, high quality sythetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.
To select the right bit for the job, assess the speed and power of your drill for the size and depths of the holes to be drilled and assess ground conditions such as rock type/formation and down-hole conditions.
SINOCOREDRILL bits are available in all standard drilling sizes . Also, non-standard sized bits can be produced according to requirements from clients.
SINOCOREDRILL offers crown impreg depths of 9mm, 12mm, and 16mm .The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.
Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.
SINOCOREDRILL impregnated bits matrices can be selected by our engineer according to ground conditions at client's work site.
standard Q threads as well as thread types required by clients are available.
1. Fast cutting and drilling speed
2. Long life, stable performance
3. Low power consumption
4. Professional OEM, superior grade quality, more than 57years manufacturing experience
5..CE: ISO: 9001: 2000
We are leading manufacturer of Impregnated/ surface-set diamond core bit, diamond casing bit, casing shoe bit, reaming shell etc.
Also Specialized in producing of varies diamond drilling tools, such as impregnated/ surface-set diamond core bit, diamond casing bit, diamond casing shoe bit, casing shoe bit, reaming shell, diamond reaming shell, TC core bit, TC casing shoe bit, TC shoe bit, Thin Wall Bit, core lifter, core lifter case, Core Barrels, etc
"Q" series:BQ3 NQ3, , HQ3, PQ3,
Sinocoredrill Group Co., Ltd is a Chinese specialist of Geological Exploration tools Manufactory and supplier which is ISO 9001-2000 certified.
Also Sinocoredrill is a professional and leading manufacturer of geological drilling tools, horizontal directional drilling tools in China. Our Main products are Core Drill Rigs, Core Bits, Reaming Shells, Drilling Rods, Cemented Carbide Inserts, and Various Core Drill Tools.
Our Technician and manager groups are all with more than ten years’ experience on Developing, researching and producing exploration products. Owing to our products' excellent performance and very competitive pricing, we successfully minimized our every customer's drilling cost per meter.
