High-Quality Plastic Strong And Longer Life Drill Core Trays Core Box

Brand Name:	SINOCOREDRILL
Model Number:	BWL NWL HWL PWL
MOQ:	N/A
Packaging Details:	Sea Delivery Package
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Certification: ISO9001

Material:

New Or Recycled

Type:

Core Tray ,Core Box

Size:

BQ NQ HQ PQ

Length:

Standard:

DCDMA

Supply Ability:

1000PCS PER DAY

Highlight:

wireline coring system

drilling rig parts

Product Description

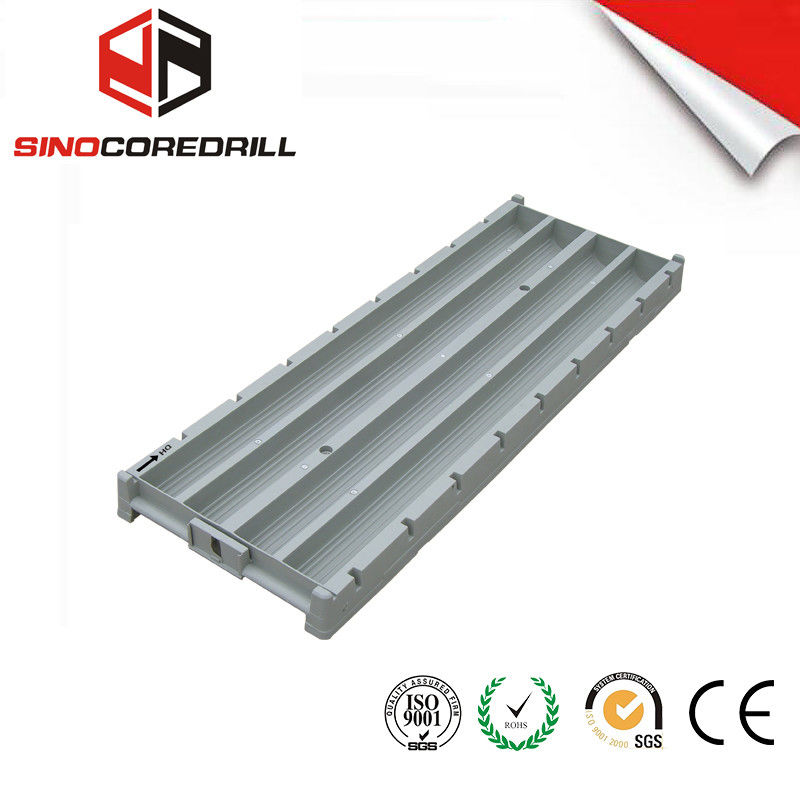

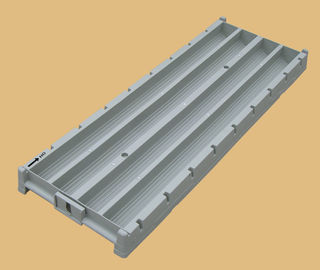

High-Quality Plastic Strong And Longer Life Core Trays Core Box

1:The structure of the products has been specially designed thus transportation cost is greatly reduced.

2:low temperature resisting,not easy to be destroyed

3:High temperature resisting with high intensity.

4:Fast stockpile could be achieved easily without slippery.

5:Various models and complete ranges of products.

6:Professionally produced by honorable enterprise of 3A classes.

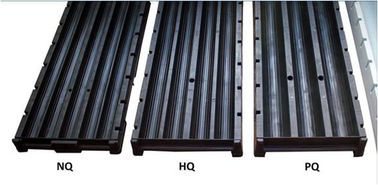

Model:BQ

Size:1070×385×50
Inseam Length:1m
The width of each slot :48mm
Length of Cores to hold:6m
Lattices Nos:6

Weight: 2.2kgs (approx.)

Model:NQ
Size:1070×385×55
Inseam Length:1m
The width of each slot :55mm
Length of Cores to hold:5m
Lattices Nos:5

Weight: 2.2kgs (approx.)

Model: HQ
Size: 1070×385×70
Inseam Length: 1m
The width of each slot : 69mm
Length of Cores to hold: 4m
Lattices Nos: 4

Weight: 2.4kgs (approx.)

Model: PQ
Size: 1070×385×93
Inseam Length: 1m
The width of each slot : 92mm
Length of Cores to hold: 3m
Lattices Nos: 3

Weight: 2.8kgs (approx.)

High-Quality Plastic Strong And Longer Life Drill Core Trays Core Box 0

We are a professional manufacturer of high quality exploration drilling rig and wireline core barrel , diamond core bits ,drill rod in Jiangsu China since 2008.

-Surface core drilling machine

-Water well Drilling,

-Muti-funchtion drilling rig for gas and oil.

-Underground core drilling rig

-HDD rig for city underground construction, telcom, water pipe, gas and oil pipe,

Wireline core drilling products:

Impregnated Bit(T2-76/86/101,etc; BQ,HQ,NQ,PQ,etc)

Surface Bit(T2-76/86/101,etc; BQ,HQ,NQ,PQ,etc)

Reaming Shell(T2-76/86/101,etc; BQ,HQ,NQ,PQ,etc)

Core Barrels & spare parts:

Drill Rod, core lifters, core lifter cases, stop rings, landing rings, landing shoulders, stabilizers, locking couplings, adaptor couplings,

inner tube and outer tubes wrenches, head assembly, Core Barrels…

High-Quality Plastic Strong And Longer Life Drill Core Trays Core Box 2
