| Type: | Full Hydraulic Surface Core Drilling Rig | Model: | CR26 |
|---|---|---|---|
| Engine: | WEICHAI WP7.300 7.4 L | Drilling Capacity: | NQ 2250M HQ 1850M |
| Transport Dimensions: | 6350×2240×2480mm | ||
| High Light: | Full Hydraulic Surface Core Drilling Rig,CR12 Mining Core Drill Rig,Exploration Geological Core Drill Rig |
||

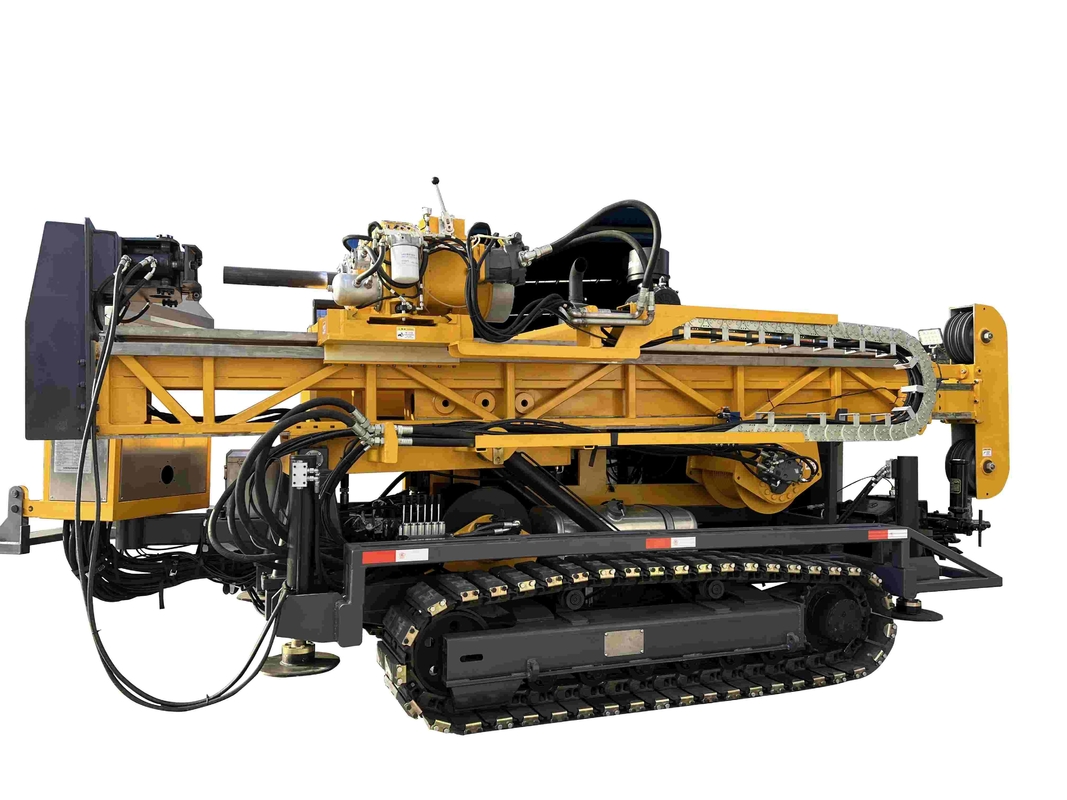

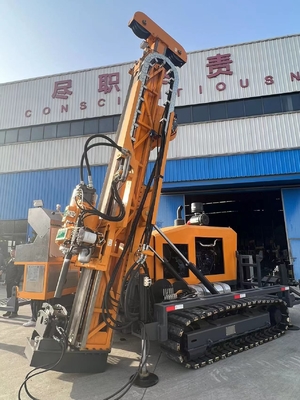

CR26 NQ 2250M HQ 1850M Mining Core Drill Rig Exploration Geological Mine Diamond
CR22 Hydraulic Core Drilling Rig is reasonable in design, excellent in performance, easy for operation and convenient for maintenance.
The core drill rig of full hydraulic and rotator adopted the technology of wire-line coring has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world. It could be applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries.
CR22 can be applied to both slant and vertical drilling. Being a rig equipped with diamond and the carbide alloy bit drilling, it can be used in the fields of geology, metallurgy, coal mining, nuke industry and hydrology measuring.
Main Performance Parameters of CR-26
| Diesel Engine | Model | WEICHAI WP7.300 |
| Displacement | 7.4 L | |
| Power | 220 kW (300 HP) | |
| Rated RPM | 2100rpm | |
| Drilling Capacity | BQ | 2850 m |
| NQ | 2250 m | |
| HQ | 1850 m | |
| PQ | 1350 m | |
| Drill Head | Rotation Motor |
Two-speed Hydraulic Motor Rexroth of Germany |
| DRILLING SPEED RPM |
Three Shifts Stepless Change: 0-1250 RPM |
|
| Ratios |
1st 8.2:1 2nd 4.2:1 3nd 1:1 |
|
| Head Opener | Sidewises liding way with hydraulic drive | |
| Hydraulic Chuck(PQ) |
Hydraulically opened, Disc Spring Clamping, Normally C Closed Type Axial Holding Capacity of 294000 N |
|
| Max. Torque | 6550 N·m | |
| Hold Diameter | 121 mm | |
| Max. Lifting capacity of Spindle | 270 kN | |
|
Max. Feeding Power
|
10 kN | |
|
Primary Pump
|
Hydraulic pump: Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks. With load sensing system. |
Producer: Danfoss of Denmark 1st Pump: 280LPM at 35 MPa 2nd Pump: 260LPM at 31.5MPa 3rd Pump: 130 LPM at 31.5MPa |
| Hydraulic Tank | Capacity | 300 L |
| Capacity of Main Hoist | Hoisting Speed (single wire) | 0-80 m/min(bare drum) |
| Hoisting force (single wire) | 130 kN | |
| Steel Wire Diameter | 22-24 mm | |
| Steel Wire Length | 55 m | |
| Capacity of Wireline Hoist | Hoisting Force (single wire) | 15 kN(3372 lbf) (bare drum) |
| Steel Wire Diameter | 6 mm(0.24 inch) | |
| Steel Wire Length | 2500 m | |
| Mast | Mast Height | 9.5 m |
| Mast Adjusting Angle | 0°—90° | |
| Drilling Angle |
45º off horizontal to 90ºvertical down
|
|
| Feeding Stroke | 3700 mm | |
| Slippage Stroke | 1000 mm | |
| Feed Pull | 27 ton | |
| Feed Thrust | 10 ton | |
| ROD PULL | 3m or 6m(9.84feet or 19.68feet) | |
| Mud Pump | Type | Reciprocating Pump Triplex Plunger |
| Model | BW320 | |
| Output volume | 320 L/min | |
| Discharge pressure | 8.0 Mpa | |
| Foot Clamp | Clamping Scope |
55.5-118 mm through hole Ф165mm |
| Others | Weight | 12.50 ton |
| Transport Dimensions | 6350×2240×2480mm | |
| Transport Way | Steel Crawler |
