Product Details:
|
Material: | Synthetic Diamond | Available Size: | AX BX NX HX |
---|---|---|---|
Crown Height: | 9mm 10mm 14mm | Waterways: | 6 /8 |
Matrix Hardness: | F1 ~F14 | Standard: | Boar Tlongyear / Atlas Copco |
Crown Profile: | Standard / Serrated W | Waterway Configurations: | Standard |
Size: | 59.5mm / 36.5 Mm | Weight: | 0.8kgs |
Color: | GOLD /BLACK | ||
Highlight: | Serrated W Diamond Core Bit,9mm crown Diamond Core Bit,9mm crown core drill set |

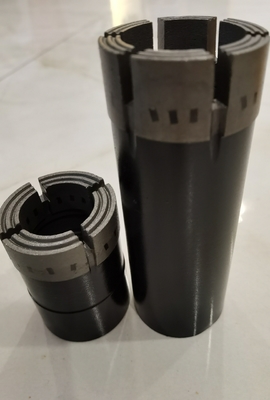

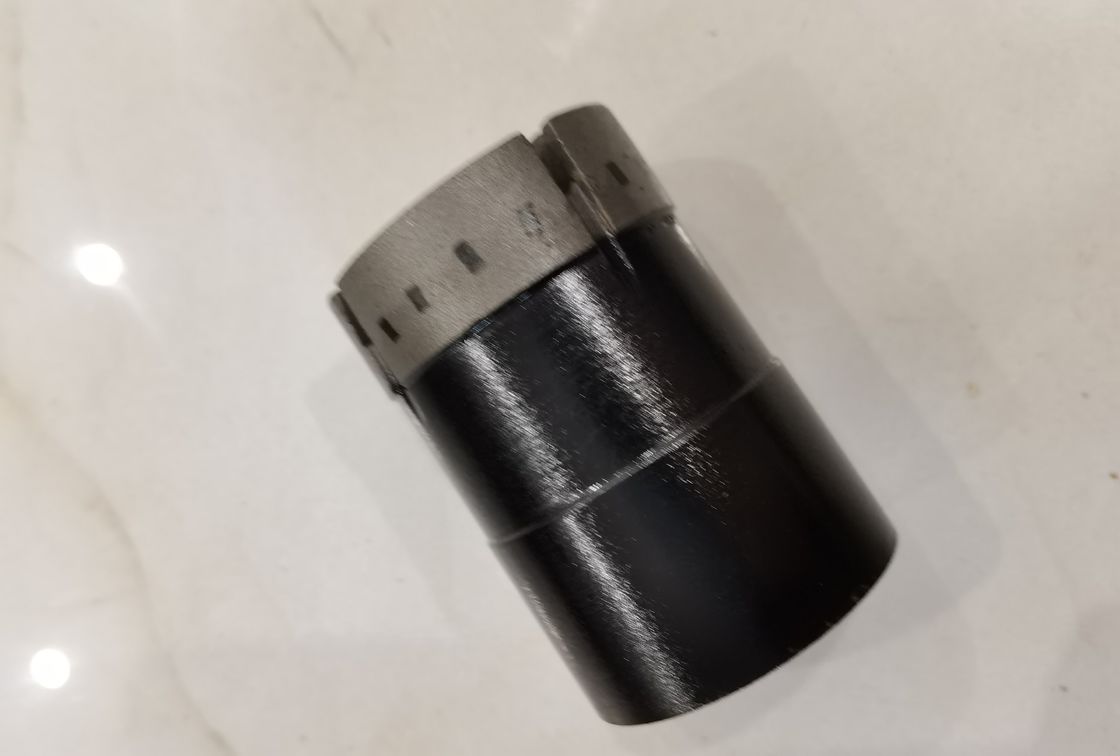

AX BX Impregnated Casing Diamond Core Drill Bits DCDMA Mining Exploration Drilling
SINOCOREDRILL possesses professional ability of WL/ Q series drill bits and reaming shells. Our drilling bits have first-class quality , excellent performance. Bits and reaming shells are designed on basis of ground condition. In respect of drilling in speed and useful life,our products are the most competitive products in China.
Shapes of lips: flat-bottom,circular,serration,pointed teeth,angle teeth,ladder,and ladder with end spray .
Standard : To cooperate with Q series drilling tools,bits are designed on basis of different stratum condition. Ourcompany also design and produce non-standard drilling bits according to customer's special requirements.
Recommendation : When hardness of stratum is high,low grade drilling bits are recommended to ensure matching of stratum.
Specifications
Size | Bit O.D. Hole Diameter | Bit I.D. Core Diameter | Reaming Shell O.D. | |||
INCHES | MM | INCHES | MM | INCHES | MM | |
AQ | 1.870/1.880 | 47.50/47.75 | 1.057/1.067 | 26.85/27.10 | 1.885/1.895 | 47.88/48.13 |
LTK48 | 1.870/1.880 | 47.50/47.75 | 1.384/1.394 | 35.15/35.41 | 1.885/1.895 | 47.88/48.13 |
BQ | 2.340/2.350 | 59.44/59.69 | 1.428/1.438 | 36.27/36.53 | 2.355/2.365 | 59.82/60.07 |
BQ3 | 2.340/2.350 | 59.44//59.69 | 1.315/1.325 | 33.40/33.65 | 2.355/2.365 | 59.82/60.07 |
NQ | 2.960/2.970 | 75.18/75.44 | 1.870/1.880 | 47.50/47.75 | 2.975/2.985 | 75.57/75.82 |
NQ2 | 2.960/2.970 | 75.18/75.44 | 1.990/2.000 | 50.65/50.80 | 2.975/2.985 | 75.57/75.82 |
NQ3/NQTT | 2.960/2.970 | 75.18/75.44 | 1.770/1.780 | 44.96/45.21 | 2.975/2.985 | 75.57/75.82 |
NMLC | 2.960/2.970 | 75.00/75.44 | 2.042/2.052 | 51.87/52.12 | 2.975/2.985 | 75.50/75.82 |
HQ | 3.755/3.770 | 95.38/96.00 | 2.495/2.505 | 63.38/63.63 | 3.775/3.790 | 95.89/96.27 |
HQ3/HQTT | 3.755/3.770 | 95.38/95.57 | 2.401/2.411 | 60.99/61.24 | 3.775/3.790 | 95.89/96.27 |
PQ | 4.795/4.815 | 121.80/122.30 | 3.340/3.350 | 84.84/85.09 | 4.820/4.835 | 122.43/122.81 |
PQ3 | 4.795/4.815 | 121.80/122.30 | 3.265/3.275 | 82.93/83.19 | 4.820/4.835 | 122.43/122.81 |
T2-76 | 2.987/2.997 | 75.87/76.12 | 2.424/2.434 | 61.56/61.82 | 2.999/3.009 | 76.17/76.42 |
T2-86 | 3.381/3.391 | 85.87/86.12 | 2.818/2.828 | 71.56/71.82 | 3.393/3.403 | 86.17/86.42 |
T2-101 | 3.970/3.982 | 100.84/101.14 | 3.290/3.300 | 83.56/84.00 | 3.984/3.994 | 101.19/101.44 |
T6-101 | 3.970/3.982 | 100.84/101.14 | 3.105/3.115 | 78.88/79.13 | 3.984/3.996 | 101.21/101.51 |
T6-116 | 4.560/4.575 | 115.80/116.18 | 3.657/3.667 | 92.88/93.13 | 4.575/4.590 | 116.21/116.59 |
T6-131 | 5.150/5.165 | 130.80/131.18 | 4.247/4.257 | 107.88/108.13 | 5.165/5.180 | 131.21/131.59 |
T6-146 | 5.740/5.755 | 145.80/146.18 | 4.837/4.847 | 122.88/123.13 | 5.757/5.772 | 146.23/146.61 |
HMLC | 3.858 | 98.00 | 2.500 | 63.50 | 3.878 | 98.50 |
Advantages
Warranty and Service
We always concerned about its clients and provides them with warranty and service support.
The factory ensures equipment warranty for the major assemblies and units efficient for 12 months. The clients are supplied with all needed spare parts, tooling and auxiliary facilities.
The authorized dealers possess service centers to execute product warranty liabilities, after-sales service and equipment repair. The clients’ staff is also provided with theoretical and practical company instructions and consultations on all matters concerning execution of work and equipment operation.
