Product Details:
|
| Type: | Wireline Core Drilling Rod | Length: | 3m 1.5m |
|---|---|---|---|
| Size: | BWL HWL HWL PWL | Material: | 30CrMnSia XJY850 |
| HS: | 7304512 | Application: | Mining Exploration |
| High Light: | drill extension rod,oil hardening drill rod |
||

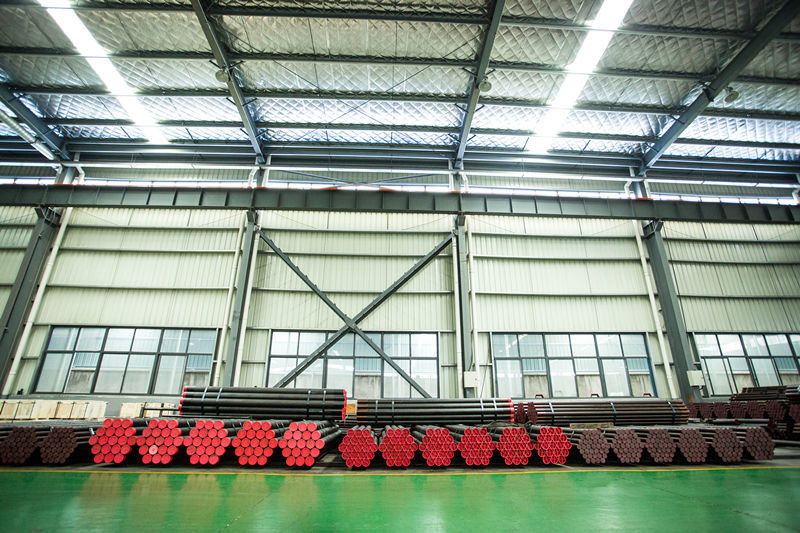

Heat - treatment Thread Process Wireline Core Drilling Rod 10ft 5ft BWL NWL HWL PWL
Diamond drill bits
Reaming shells and casing/rod shoes
Wireline drill rods
Core barrels & overshot assemblies
Hoist plug and water swivels
Recovery tapes and Casing cutters
Drill string subs and adaptors
Wireline drill rod and casing
1. Available in all standard drilling sizes (A, B, N, H and P)
2. Heat treated and anti-rust coating process
3. High straightness and concentricity
4. “WL” series and “TW” (Thin Wall) series, 1.5m and 3m length.
5. Top-quality Chinese origin or Canadian sourced
All rod offering advanced quality and adopting top-level industrial technology standard in raw material
and production process. Drill rods and casing rods are quality-crafted in DCDMA standard sizes using
superior alloy steel, with each end of the drill rods heat-treated for greater wear resistance.
Technical standard
All drill rods are inspected for straightness and concentricity. All drill rods are coated with a rust inhibitor
and each thread is greased and ready for instant drilling use. Threads are protected during shipping with bundle caps and/or individual rod thread covers.
Drill rod size available as followings:
"WL series: BWL NWL HWL PWL
“TW” series: ATW, BTW, NTW, HTW
Casing: AW, BW, NW, HW, HWT, PW
Wireline drill rod technical specifications:
|
O.D. (mm) |
I.D. (mm) |
Weight/3m (kg) |
Weight/1.5m (kg) |
|
|
AWL |
43.1 |
36.1 |
11.00 |
5.50 |
|
BWL |
55.58 |
45.97 |
19.05 |
9.53 |
|
NWL |
69.85 |
60.45 |
23.77 |
11.89 |
|
HWL |
88.9 |
77.72 |
34.88 |
17.44 |
|
PWL |
114.3 |
101.6 |
53.07 |
26.54 |
|
ATW |
44.5 |
36.8 |
11.50 |
5.75 |
|
BTW |
56.64 |
48.51 |
15.65 |
7.83 |
|
NTW |
73.15 |
64.26 |
22.91 |
11.46 |
|
HTW |
90.93 |
81.53 |
30.75 |
15.38 |
