Name: Hydraulic Rrill Rig Core Drill Rig Manportable Drill rig EP550 Portable Drill Rig
Brand: Jiangsu Sinocoredrill Exploration Equipment Co., Ltd
SKU: EP550
Price: 769.00 USD
Availability: InStock

Home Products Core Drill Rig

Hydraulic Rrill Rig Core Drill Rig Manportable Drill rig EP550 Portable Drill Rig

Product Details:

Place of Origin:	China
Certification:	CE certificate ISO 9001：2008
Model Number:	EP550

Payment & Shipping Terms:

Minimum Order Quantity:	N/M
Price:	Based on the detailed quotation
Packaging Details:	Seaway packag
Delivery Time:	Based on the detailed quotation
Supply Ability:	Based on the detailed quotation

Contact Now

Detailed Product Description

Highlight:

Hydraulic drill rig

core drill rigs

Core Drill Rig Manportable Drill rig EP550 Portable Drill Rig, Mobile Drill Rig, Hydraulic Rrill Rig

General Introduction

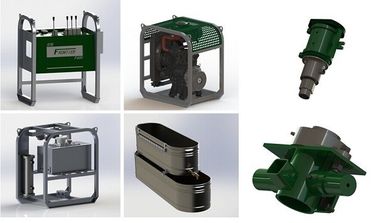

Frontier EP550 portable drill rig, its outstanding design and material technology lead the technical trend. F600 small drill rig use man portable, highly mobile design and its module structure ensure drill to be easily moved.The unique design and reliable performance fully provide flexible and high efficiency advantage.

Main Features

To ensure high standard of strength and toughness in drilling field, and to extremely reduce the weight of rig, F600 portable drill rig main structure adopt high-strength aviation aluminum alloy material.

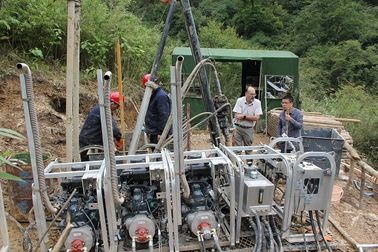

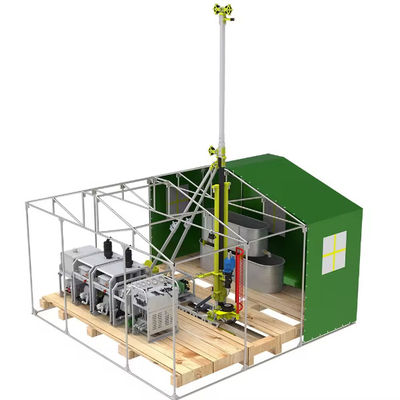

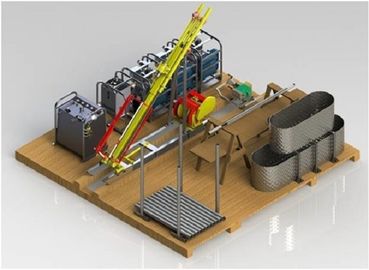

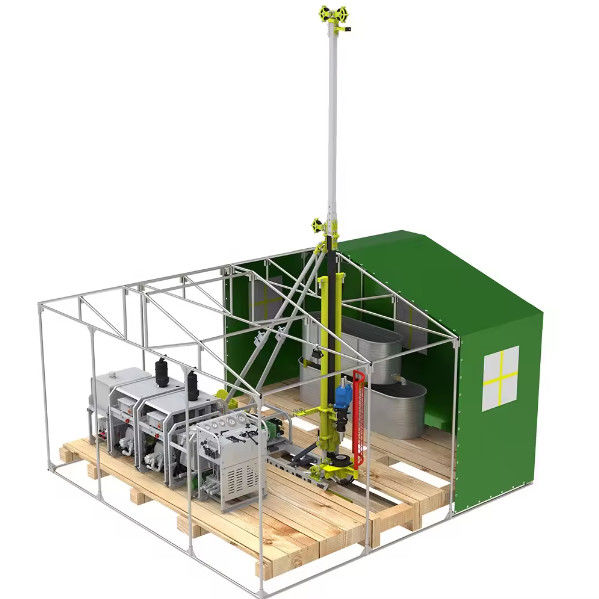

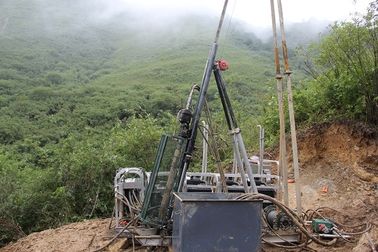

Where access is limited, the unit can be transported by local laborers and/or mules on footpaths. Since the heaviest single component in each unit weighs 160kg,drill moves can be manually carried out, no roads need to be constructed.F600 man portable drill rig can be set up in a cleared, level space of 4m by 4m or less, or on scaffolding if needed.

Product Parameter

Hydraulic Rrill Rig Core Drill Rig Manportable Drill rig EP550 Portable Drill Rig 0

“Q” and “TW” series reference
Model	Rod OD (mm)	Rod ID (mm)	Weight/3m (kg)	Weight/1.5m (kg)	Bit OD (mm)	Bit ID (mm)
BQ	55.58	45.97	19.05	9.53	59.94	36.37
NQ	69.85	60.45	23.77	11.89	75.69	47.63
HQ	88.9	77.72	34.88	17.44	96.06	63.5
PQ	114.3	101.6	53.07	26.54	122.61	84.96
BTW	56.64	48.51	15.65	7.83	59.94	41.78
NTW	73.15	64.26	22.91	11.46	75.69	56.01
HTW	90.93	81.53	30.75	15.38	96.06	70.92
