AQ BQ NQ Soil Sampling Reaming Shell For Hard Rock
  • name

AQ BQ NQ Soil Sampling Reaming Shell For Hard Rock

Brand Name: SINOCOREDRILL
Model Number: BWL NWL HWL PWL
MOQ: N/A
Packaging Details: Sea Delivery Package
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Features:
Natural Or Synthetic Diamond
Product Name:
Reaming Shells
Machine Type:
Drilling Tools
Type:
Core Drill Bit,Construction Tool Parts
Application:
Geological Exploration, Mining Exploration, Hydrogeological Exploration And Oil, Gas, Exploration
Model Number:
BQ,NQ,HQ,RQ,PQ,T2,T6,146,TT48 Etc
Supply Ability:
Based on Detailed Order
Highlight:

AQ Soil Reaming Shell

,

BQ Soil Reaming Shell

,

AQ adjustable shell reamer

Product Description

Synthetic Mining Prospecting And Soil Sampling Reaming Shell



Product introduction



Reaming shell is set with natural or synthetic diamond, and it is used to couple the drill bit with the core barrel. Its main function is to ream the hole to the correct constant specific diameter which ensures adequate clearance for the core barrel and sufficient clearance for the new bit which replaces an old one. It also acts as a stabilizer for drill bit.





Specifications



PQ Diamond reaming shell

  • Be used together with core bit
  • Protect borehole without hole shrinkage
  • Long service life
  • Adopt first level diamond material
  • First level quality and good price
  • Over 20 years Experience



Reaming shells (with double pads or three pads) are suitable to use in all formation conditions ranging from broken and abrasive to consolidated and non-abrasive. As this kind of reaming shell is physically longer than the standard type, it is necessary to use an appropriate inner tube extension in order to compensate for the difference in overall reaming shell length.

Specialisted in producing varies kinds of diamond core bits in different international standard size for soft, medieum to hard rock formations.

 With ISO certificate & quality control.




Technical Parameters


Core Barrel

Specification



Reaming Shell





Maximum

Minimum

lnch

mm

lnch

mm

AQ

1.895

48.13

1.885

47.88

BQ

2.365

60.07

2.355

59.82

NQ

2.985

75.82

2.975

75.57

HQ

3.79

96.27

3.775

95.89

PQ

4.835

120.81

4.82

122.43

T2-101

3.994

101.44

3.984

101.19

T6-101

3.996

101.51

3.984

101.21




Q Series  AQ, BQ, NQ, HQ, PQ
T Series T36, T46, T56, T66, T76, T86, TEW, TBW, TNW
WF Series HWF, PWF, SWF, UWF, ZWF
 WT Series  RWT, EWT, AWT, BWT, NWT, HWT (Single Tube/Double Tube)
 WG Series:  EWG, AWG, BWG, NWG, HWG (Single Tube/Double Tube)
 WM Series  EWM, AWM, BWM, NWM
 T2/T6 Series  T256, T266, T276, T286, T2101/T676, T686, T6101, T6116, T6131, T6146, T6H
 Others  NMLC, HMLC,3C,4C,6C TNW

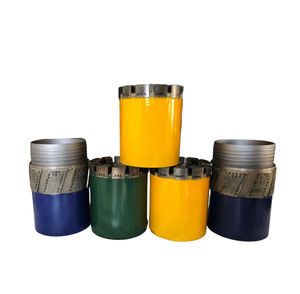

AQ BQ NQ Soil Sampling Reaming Shell For Hard Rock 0AQ BQ NQ Soil Sampling Reaming Shell For Hard Rock 1
