Product Details:
|
| Type: | XZKD95-3A | Drilling Depth: | 400-700m |
|---|---|---|---|
| Usage: | Mine Exploration, Railway Engineering, Tunneling Water Conservancy | Main Body: | 2620*600*750mm |
| Power Unit: | 1770*1000*1420mm | Control Panel: | 700*400*1100mm |
| Weight: | 2355Kgs | Power: | 75Kw (Electric) / Diesel Available |
| High Light: | Nq geological drilling rig,600m geological drilling rig,faster speed geological drill rig |
||
Nq 600m Full Hydraulic Geological Underground Drilling Rig With Faster Drilling Speed
XZKD95-3A Drill Rig Description

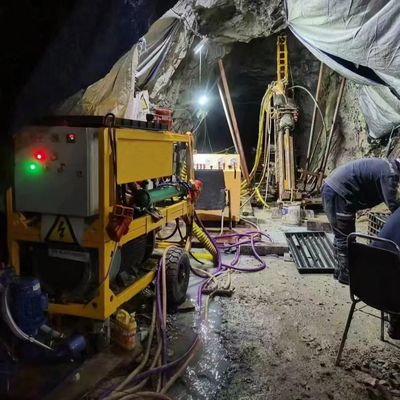

XZKD95-3 Tunnel core drilling rig is suitable for drilling holes for the purpose of mine exploration; also they could be used in railway engineering, tunneling and water conservancy project. You will benifited a lot by its excellent and reliable performance.
Full hydraulic underground core drilling rig is suitabie for drilling holes for the purpose of mine exploring ,surface coring,railway engineering,tunneling,civil construction engineering and water conservancy projectYou will surely benefit a lot from its excellent and reliable performances.
Features:
1. Oil pump drive the motor to rotate, hydraulic cylinder working without turret.
2. The core drilling machine system of rotation, feed, pumping and clamping relies on fluid drive; making your drilling work smooth than any competitor.
3. Fast drilling speed can drill holes from any angle in work tunnel by column, beat applocablity.
4. With V-guide, the rig provides the highest concentrivity about principal axis.
5. Easy to maintenance, repair, disassembly, installation and movement.

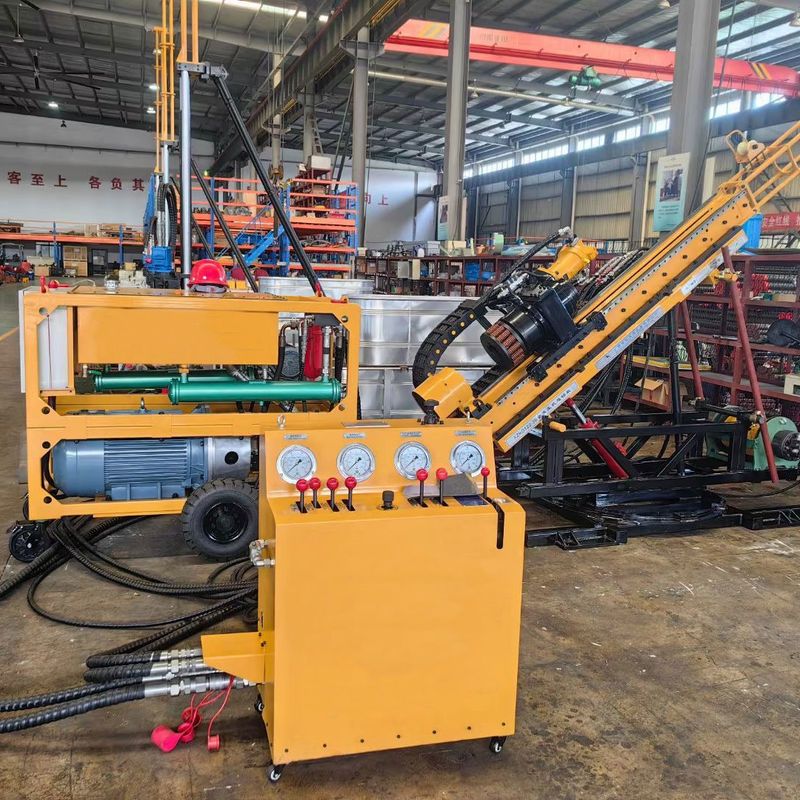

XZKD95-3 Tunnel core drilling rig is composed of power unit, machine body, control panel, rotation unit, rod holder and mud pump.
Our underground core drilling rig ranges: XZKD95-1 XZKD95-2 XZKD95-3
XZKD95-3A Drilling Rig Specification :
| Spindle Rotational Speed | 280-1200r/min | Spindle torque | 1050NM |
| Axial Pulling Force | >65KN | Axial Pulling Force | >85KN |
| Hydraulic System Working Pressure | 20MPa | Maximum Pressure | 25MPa |
| Main Pump Maximum Pressure | 31.5Mpa | Auxiliary Pump Maximum Pressure | 25MPa |
| Main Pump Max Output Volume | 100ML/r | Auxiliary Pump Max Output Volume | 16ML/r |
| Power Head Stroke | 1600MM | Surface Drilling Angle | 0°-90° |
| Underground Drilling Angle | 0°-360° | Azimuth Angle | 0°-360° |
| Motor Power | 75KW | Motor Rotational Speed | 1480RMP |
| Machine body /Size | 2620*600*750MM | Weight | 1335KG |
| Power Unit | 1770*1000*1420MM | Weight | 1080KG |
| Control Pannel | 700*400*1100MM | Weight | 80KG |
