Product Details:
|
| Type: | Full Hydraulic Drilling Rig | Rig Power: | Kubota Diesel Engine V1505T 3x31.5kw/3000rpm |
|---|---|---|---|
| Drilling Depth: | 300-800m | Weight: | 3165kg |
| Maximum Torque: | 700Nm | Maximum Speed: | 1800rpm |
| Applicable Industries: | Construction Works , Energy & Mining, Food & Beverage Factory, Machinery Repair Shops, Manufacturing Plant | Place Of Origin: | China |
| High Light: | Portable Full Hydraulic core drill rig,Light Weight core drill rig,Easy Assemble core drilling equipment |
||

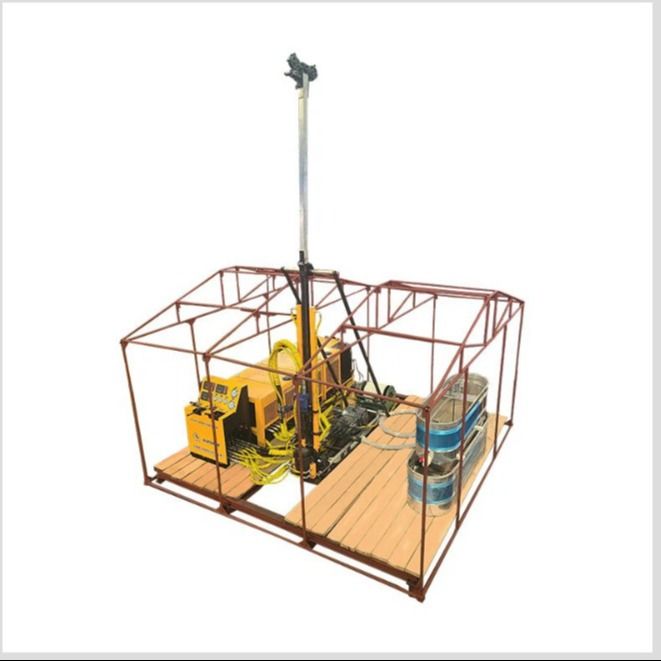

HP-8 Portable Full Hydraulic Drilling Rig With Light Weight And Easy To Assemble
Product Introduction:
Full hydraulic drilling rig mainly used to drilling wells,irrigation wells,ground source heating pump wells and boreholes for other purposes,especially for mountain and rock formation well projects.The rig can be drill in different layers.
Main Feature
Technical Parameters
| Name | Parameter | |
| Drilling Depth | BTW(59.56/42.1mm) | 800m |
| NTW(75.31/56.1mm) | 600m | |
| HTW(95.57/71.1mm) | 300m | |
| Drill Rod Length | 1.5m | |
| Coring Length | 3m | |
|
Rig Power
|
Kubota diesel engine V1505T 3x31.5kw/3000rpm | |
| Power Head - Top Drive | Maximum Torque | 700Nm |
| Maximum Speed | 1800rpm | |
| Feed Stroke | 1.83m | |
| Lifting Force/Feeding force | 60KN/30KN | |
| Hydraulic Winch | Average Speed | 160m/min |
| Lifting Force | 800kg | |
| Wire Rope Diameter | 8mm | |
| Wire Rope capacity | 850m | |
| Feed Beams And Masts | The Total Height Of The Rig At 90° | 5m |
| Drilling Angle | 30°～90° | |
| Conformation And Weight | Machine Area | 4mX4m |
| Tent Area | 4.3mX4.3m | |
| Gross Weight/Heaviest Module | 3.2Tons/260kg | |
| Critical Component Supplier | Diesel Engines | Kubota--Japan |
| Gear Pump | Danfoss - Denmark | |
| Power Head Motor | Bomke - Germany | |
| Winch Motor | Danfoss - Denmark | |
| Mud Pump | Elephant - China | |
| Hydraulic Control Valve | Parker - USA | |
| Hydraulic Plug Valve | Sun - America | |
Dimensions and Weight
| Name |
Dimensions (shipping dimensions) Length x width x height (mm) |
Quantity |
Weight (kg) |

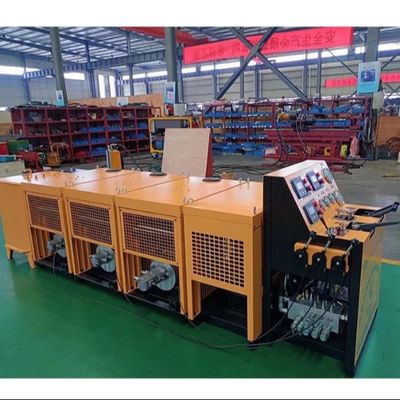

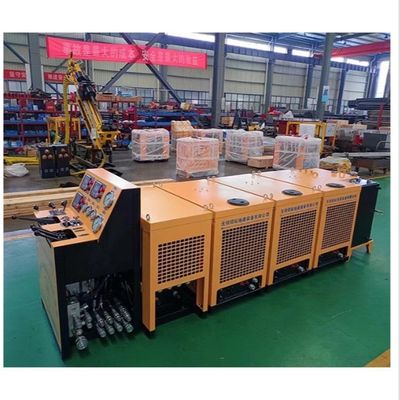

| Control Unit | 790x560x1100 | 1SET | 190 |
|
Diesel Unit (including oil coolant) |
950x605x882 | 3SETS | 260x3=780 |
|
Fuel Tank (excluding diesel) |
890x520x860 | 1SET | 180 |
|
Hydraulic Tank (without hydraulic oil) |
945x505x882 | 1SET | 165 |
| Mud Pump | 690x640x350 | 1SET | 175 |
|
Hydraulic Winch (including 8mm wire rope 850m) |
770x525x395 | 1SET | 215 |
|
Frame (including mast tubing, detachable) |
2760x500x400 | 1SET |
300 (The heaviest part does not exceed 300) |
| Holder | 390x240x400 | 1SET | 90 |
| Bottom Frame | 4000x100x100 | 8pcs H-beams | 68x8=544 |
| Tent Parts | 4300x700x300 | 1Set |
200 (The heaviest part does not exceed 20) |
| Board | 4000x200x40 | 17PCS | 16x17=272 |
| Strut Parts | Φ55*900 | 1SET |
54 (The heaviest part does not exceed 7) |
| Total Weight | 3165 | ||
