Product Details:
|
| Place Of Origin: | CHINA | Applicable Industries: | Construction Works , Energy & Mining |
|---|---|---|---|
| Type: | DRILL BIT | Standard: | DCDMA |
| Processing Type: | Forging | Material: | Diamond |
| High Light: | Bq impregnated diamond core bits,Competent Formations impregnated diamond core bits,Competent Formations diamond impregnated drill bit |
||

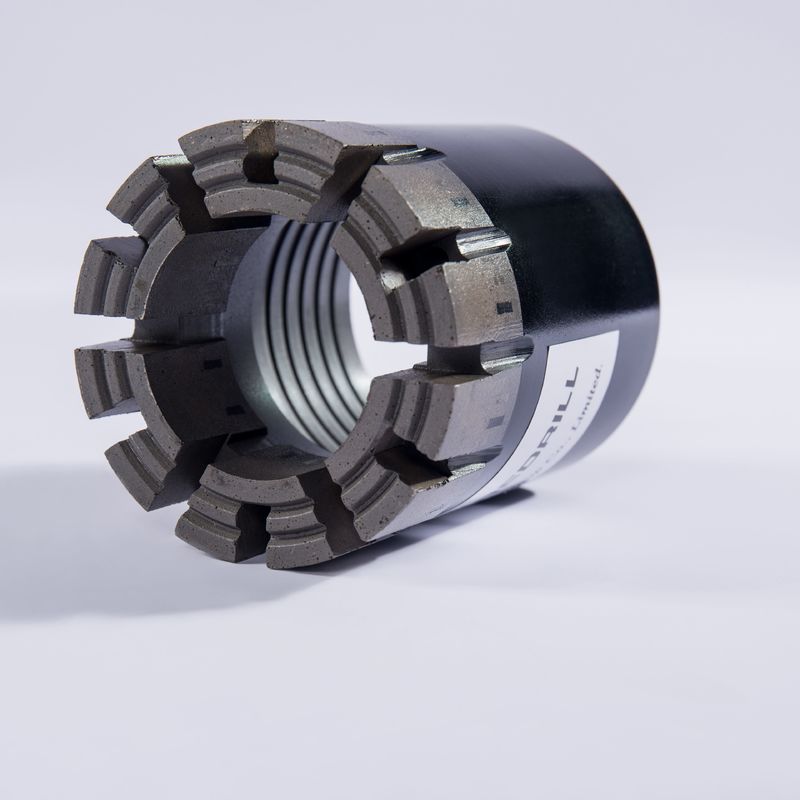

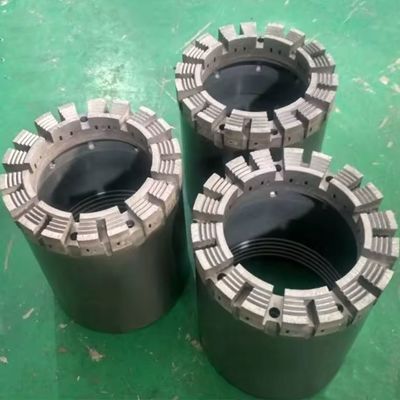

Turbo Bq Nq Hq Pq Impregnated Diamond Core Bits For Competent Formations
Product Description
Manufactured with very small, high quality synthetic diamonds mixed evenly through a metal matrix. The matrix hardness is chosen to suit the rock formation, so that it wears evenly throughout the life of the bit, exposing new sharp diamonds.
The main crown technical parameters of impregnated diamond core bits include diamond grade,size,concentrarion and quality, matrix hardness and crowm shapes. The users can make rational selections according to the formations to be drilled. To avoid excessive bit wear, tungsten carbide inserts are used on both sides on the waterway, and gage stones are a bit larger. Our impregnated diamond core bits are the most commonly useful bits in the mineral exploration industry, as they have the widest range of application. The carefully selected grades of high quality synthetic diamond are distributed in the depth of impregnated bit's matrix series.
Features:
1. Significantly outperforms the successful Series range in drilling speed and bit life.
2. Protects the diamond from oxidation and surface degradation.
3. Inhibits the premature "pull-out" of the diamond.
4. Available in multiple standard configurations and selected on the basis of relative rock hardness and ground conditions.
Available siza:
|
AVAILABLE SIZE
|
||||
|
Q Series
|
AQ, BQ, NQ. NQ2, NQ3, NQTT, HQ, HQ3, HQTT, PQ, PQ3, PQTT, AQTK, BQTK
|
|||
|
T2 Series
|
T2 46, T2 56, T2 66, T2 76, T2 86,T2 101
|
|||
|
T6 Series
|
T6 76, T6 86, T6 101,T6 116,T6 131,T6 146,
|
|||
|
T6S Series
|
T6S 76, T6S 86, T6S 101, T6S 116,T6S 131,T6S 146
|
|||
|
T Series
|
T36, T46, T56, T66, T76, T86
|
|||
|
Z Series
|
Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146
|
|||
|
B Series
|
B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
|
|||
|
WF Series
|
HWF, PWF, SWF, UWF, ZWF
|
|||
|
WT Series
|
RWT, EWT, AWT, BWT, NWT, HWT (Single Tube, Double Tube)
|
|||
|
WG Series
|
EWG, AWG, BWG, NWG, HWG ( Single Tule , Double Tube )
|
|||
|
WM Series
|
EWM, AWM, BWM, NWM, HWM
|
|||
|
Others
|
NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, HTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146,TT46, TT56, TB56, TS16, CHD101
|
|||
|
Chinese Standard
|
56mm , 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm,275mm
|
|||
|
Customised
|
Others
|
|||
Type of Bit Matrix:
The matrix of our impregnated bits is designed to expose new diamonds to the bits' cutting face as wear occurs. Fast penetration rate is maintained as a result of this action, also with long life using time is important, meanwhile it will keep the cost of diamond drilling to a minimum.
The optimum diamond size, concentration and matrix type are dependent on the hardness and abrasiveness of the formation to be drilled.
