Product Details:
|
| Place Of Origin: | China | Type: | Drill Rod |
|---|---|---|---|
| Processing Type: | Forging | Brand: | SINOCOREDRILL |
| Length:: | 1.5m 3m | ||
| High Light: | 1.5m seamless drill rod,geothermal drilling seamless drill rod,3m hot rolled drill rod |
||

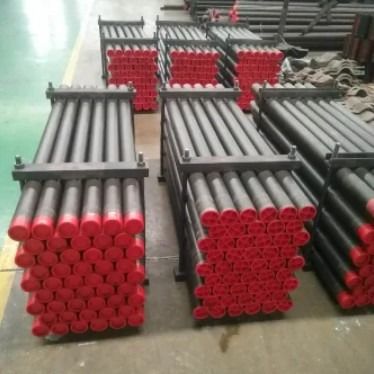

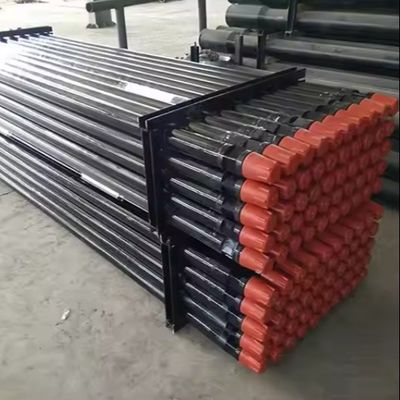

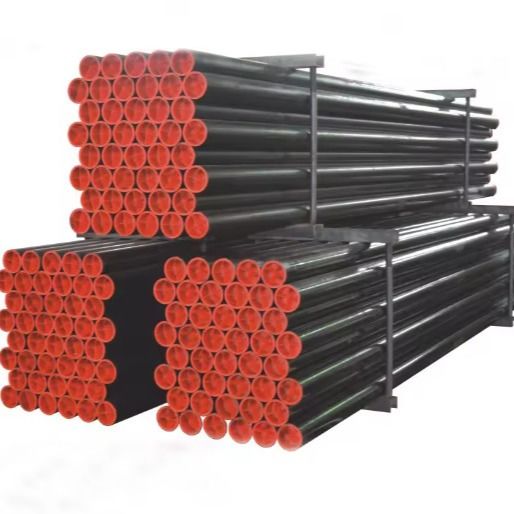

Hot Rolled Seamless 1.5m 3m Drill Rod For Geothermal Drilling And Coal Mining
Product Description
Drill pipes that are used in applications such as DTH/ DTHR/ DR basically comprise of a steel pipe with a pin at one end and a box on the other. The job of the drill pipe is to transmit rotational torque and thrust from the drill rig rotary head to down hole drilling tools.
According to different application, different diameters of drill tubes are needed, basically, smaller DTH hammers need smaller DTH drill tubes, vice versa. Usually we are offering 50mm, 60mm, 76mm, 89mm, 95mm, 102mm, 114mm 127mm, 140mm, 159mm etc.
Usually the threads are standard API connections, like 2 3/8" API REG thread, 3 1/2" API REG thread or API IF thread, etc.
According to customers request, from1000mmto6000mmlength of pipe are available.
Drill Rod Size Available:
"Q" Series: B, N, H, and P.
"WJ" Design: AWJ, BWJ, NWJ, KWJ, HWJ
"W" Design: RW, EW, AW, BW, NW, HW
Metric Series: 42, 50, 60, 70, 90
| Size | Outer Diameter (mm) | Inner Diameter(mm) |
| AQ | 44.7 | 37.3 |
| BQ | 55.7 | 46.1 |
| NQ | 70.0 | 60.2 |
| HQ | 89.0 | 78.0 |
| PQ(PHD) | 114.5 | 101.5 |
| AW/AWJ/AWY | 43.7 | 30.7 |
| BW/BWJ/BWY | 54.0 | 38.0 |
| NW/NWY | 66.8 | 51.0 |
| HW | 89.0 | 71.0 |
| 42mm | 42.0 | 30.0 |
| 50mm | 50.0 | 37.0 |
| 60mm | 60.0 | 48.0 |
| 70mm | 73.0 | 54.6 |
| 90mm | 89.0 | 69.0 |
| S75 | 71.0 | 61.0 |
1.New drill pipe should be pasted oil before connection
2.Make up and break at least 3 times before drilling
3.Hard bending and plastic coating can be processed according to clients’ special requirements.
