BQ NQ HQ PQ Double Tube Wireline Core Barrel Assembly For Surface Wireline Mining Drilling
  • name
  • name
  • name

BQ NQ HQ PQ Double Tube Wireline Core Barrel Assembly For Surface Wireline Mining Drilling

Brand Name: SINOCOREDRILL
Model Number: BQ NQ HQ PQ
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Processing Type:
Casting
Brand Name:
Sinocoredrill
Diameter:
BQ, NQ, HQ，PQ,
Length:
1.5m/3m
Certification:
ISO CE
Country Of Origin:
China
Highlight:

Double Tube hq core barrel assembly

,

BQ wireline core barrel assembly

,

NQ wireline core barrel assembly

Product Description

BQ NQ HQ PQ Double Tube Wireline Core Barrel Assembly For Surface Wireline Mining Drilling



Prodcut Description:



The structure and work principle of Q series wire line drilling tools Qseries wire line drilling tools included core barrel assembly and overshot assembly:Outer tube assembly contains locking coupling,adapter coupling ,landing ring,reaming shell,outer tube,outer tube and bit. inner tube assembly including spearhead point,detent mechanism,adjusting mechanism, Pensile institutions, tube assembly remove institutions, In position news agency and Core jams news agency etc.





Technical Data:

Size
Units
Serial No.
Net weight(kg)
Remark
BQ
set
11-4
41.5
Length=3m
NQ
set
11-1
63
Length=3m
HQ
set
11-2
97
Length=3m
PQ
set
11-3
136
Length=3m
BQ
set
11-4-2
30
Length=1.5m
NQ
set
11-1-2
55
Length=1.5m
HQ
set
11-2-2
80
Length=1.5m
PQ
set
11-3-2
98
Length=1.5m
NQ3
set
11-1-3
70
Length=3m(include split tube)
HQ3
set
11-2-3
108
Length=3m(include split tube)
NQ3
set
11-1-4
62
Length=1.5m(include split tube)
HQ3
set
11-2-4
92
Length=1.5m(include split tube)
PQ3
set
11-3-4
145
Length=1.5m(include split tube)
BTW
set
11-2-5
39
Length=1.5m
NTW
set
11-3-5
60
Length=1.5m



Product Advantage:

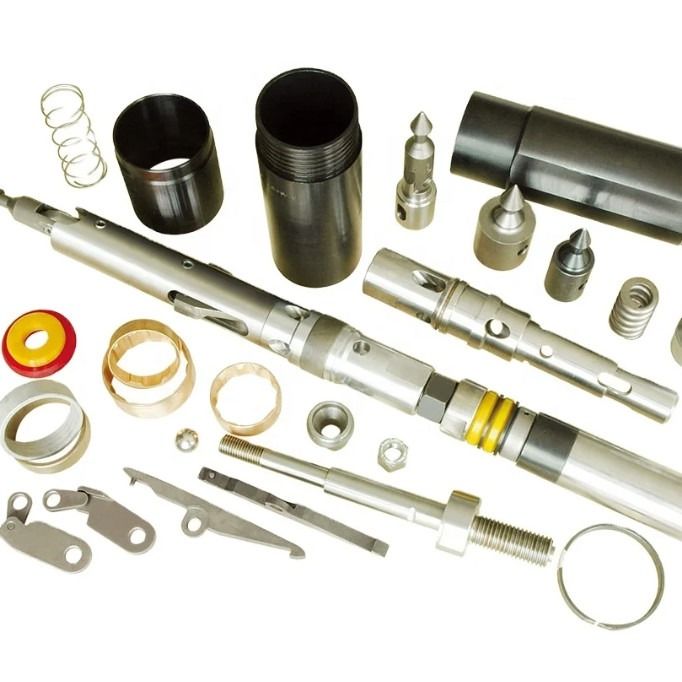

1.Production Scale: Complete series of single, double and triple tube core barrels and overshot.

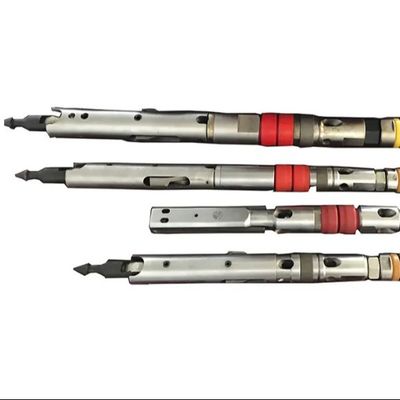

2.Top Selling Model: Wireline double tube inner-tube group is composed of Head Assembly, Inner Tube, Core Lifter Case, Core Lifter and Stop Ring. You can order Head Assemble, Inner Tube assembly or components separately.
3.Length: 1.5m/ 5 ft or 3.0m/ 10ft.
4. MOQ:1 PCS

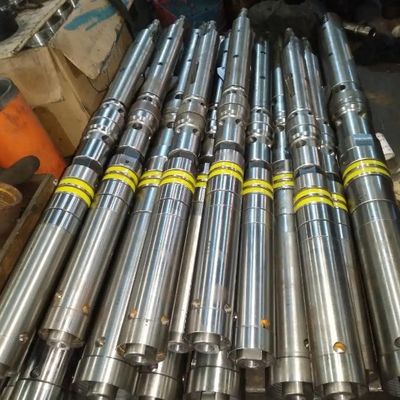

BQ NQ HQ PQ Double Tube Wireline Core Barrel Assembly For Surface Wireline Mining Drilling 0
BQ NQ HQ PQ Double Tube Wireline Core Barrel Assembly For Surface Wireline Mining Drilling 1
