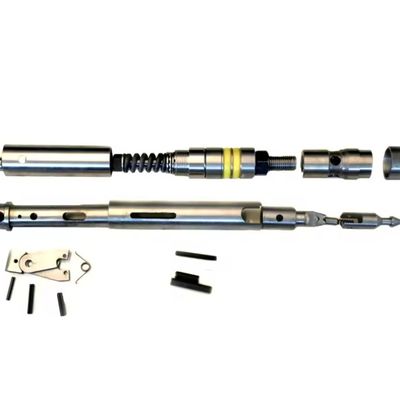

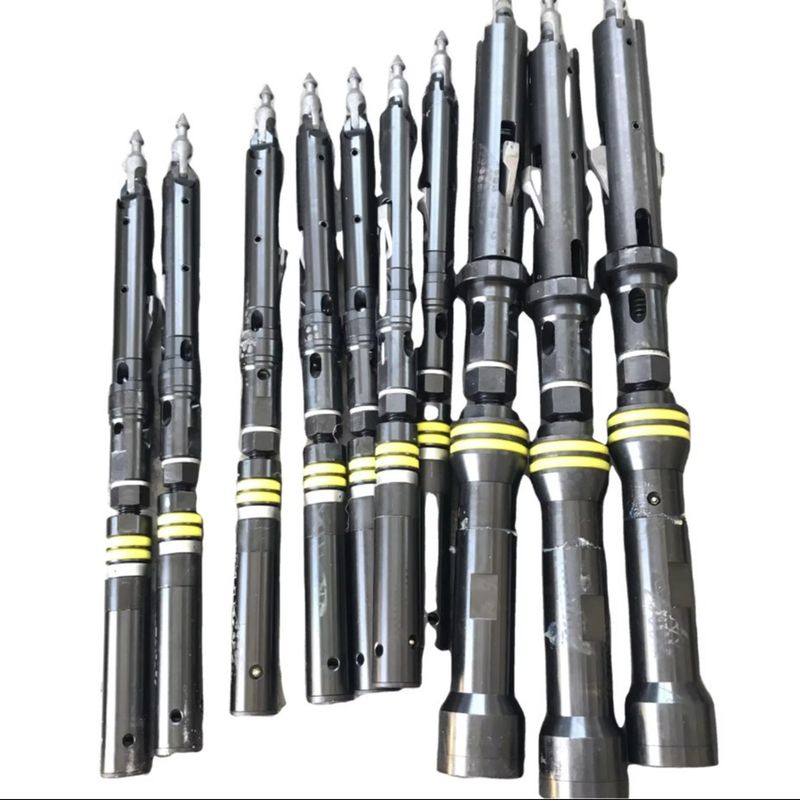

Nq Wireline Double Tube Core Barrel Assembly For Deep Hole Hard Rock Coring

Nq Wireline Double Tube Core Barrel Assembly For Deep Hole Hard Rock Coring
Nq Wireline Double Tube Core Barrel Assembly For Deep Hole Hard Rock Coring Nq Wireline Double Tube Core Barrel Assembly For Deep Hole Hard Rock Coring

Large Image :  Nq Wireline Double Tube Core Barrel Assembly For Deep Hole Hard Rock Coring

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: ISO9001
Model Number: BQ NQ HQ PQ

Nq Wireline Double Tube Core Barrel Assembly For Deep Hole Hard Rock Coring

Description
Type: Core Barrel Machine Type: Drilling Tool
Material: Carbon Steel Processing Type: Forging
Applicable Industries: Machinery Repair Shops, Construction Works , Energy & Mining Brand Name: Sinocoredrill
Country Of Origin: China Series: AQ/BQ/NQ/HQ/PQ
Highlight:

nq wireline core barrel

,

hard rock coring wireline core barrel

,

double tube wireline core barrel assembly

NQ Wireline Double Tube Core Barrel Assembly For Deep Hole Hard Rock Coring


Size Available:

B76 core barrel, B86 core barrle, B101 core barrel, B131 core barrel, B146 core barrel
BQ core barrel NQ core barrel, HQ core barrel PQ core barrrel, NQ3 core barrel, HQ3 core barrel, PQ3 core barrel
TT-46 core barrel TT56 core barrel
T2-56 core barrel, T2-66 core barrel, T2-76 core barrel, T2-86 core barrel, T2-101 core barrel
T6-76 core barrel T6-86 core barrel T6-101 core barrel T6-116 core barrel T6-131 core barrel T6-131 core barrel
NMLC core barrel, HMLC core barrel
HWF core barrel, PWF core barrel
NWG core barrel, HWG core barrel
LTK48 core barrel
M101 core barrel
412 F core barrel

Chinese Standard: Wireline 56, wireline 59, wireline 75, wireline 91...



Wireline drilling is the special method of removing the core. When the driller wants to remove core from a conventional core drill, the entire core barrel has to be removed from the hole. This is time-consuming, as each rod has to be removed one at a time. With wireline drilling, a barrel of core can be removed from the bottom of the hole without removing the rod string. When the driller wants to remove the core, an overshot is lowered on the end of a wireline. The overshot attaches to the back of the core barrel inner tube and the wireline is pulled back and the inner tube disengages itself from the barrel.


Welcome to contact us for more information.



Specification:



Q Series Wireline Double Tube Core Barrels
Size Hole(mm) Core(mm) Head Thread
BQ 59.3 36.2 BQ rod box
NQ 75.2 47.6 NQ rod box
HQ 95.6 63.5 HQ rod box
PQ 122 85 PQ rod box
Q Series Wireline Triple Tube Core Barrels
Size Hole(mm) Core(mm) Head Thread
NQ3 75.2 45 NQ rod box
HQ3 95.6 61 HQ rod box
PQ3 122 83 PQ rod box



Diamond bits Crown Shape and Applications


Flat : Applicable to drilling different levels of hardness or abrasive formation,generally for single and dual tube drill bits


Semi-round : Good distribution of the diamond ar bit face, adapt to a small broken or loose formation,applicable to drilling medium-hard and hard formation

Ladder : Applicable to drilling medium -hard, broken or interbedded formations,hole deviation can be prevented

Applicable to drilling medium -hard,have good stability during the drilling



Bottom jetting : Bottom jetting applicable to drilling sedimentary or metamorphic formations which containing more power,high coring recovery rate and avoid excessive washout of core.



Nq Wireline Double Tube Core Barrel Assembly For Deep Hole Hard Rock Coring 0
