Product Details:
|
| Model: | BQ NQ HQ PQ | Origin: | China |
|---|---|---|---|
| Type: | Reaming Shell | Brand: | Sinocoredrill |
| Material: | Diamond | Use: | Drilling And Exploration |
| High Light: | Excellent Wear Resistance Reaming Shell,Wireline Drilling Reaming Shell,Wireline Drilling Diamond Synthetic Reaming Shell |
||

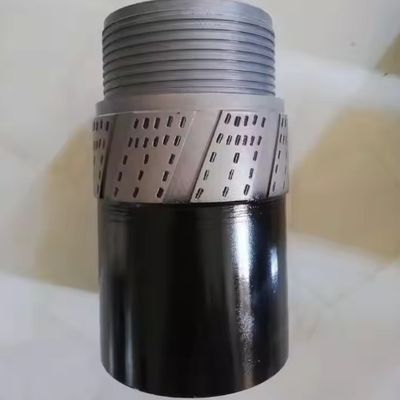

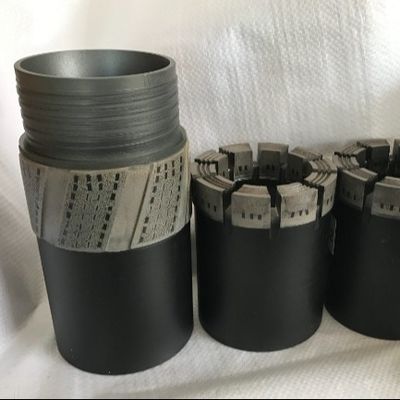

Diamond Synthetic Reaming Shell For Wireline Drilling With Excellent Wear Resistance
Product Description
The Sinocoredrill reaming shell is the benchmark for knowledgeable drillers where quality and reliability are valued above initial cost. Drilling is made easy and more manageable with this reaming shell. The importance of the reaming shell in maintaining hole direction and gauge cannot be underestimated. At every bit change, the new bit is expected to reach the bottom of the hole without interference. As the shell typically lasts the life of several bits, the selection of the best available reaming shell is an investment in productivity and overall cost of the project.
Features of Reaming Shells
1) Acts as a stabilizer for drill bit.
2) Be set with natural or synthetic diamond.
Our reaming shells enjoy the best quality and most special design in the industry. With several different types, we try our best to satisfy any of your requirements
| Specification Parameters | ||||||
| SIZE | Bit O.D. Hole Diameter | Bit O.D. Core Diameter | Reaming Shell O.D. | |||
| INCHES | MM | INCHES | MM | INCHES | MM | |
| HQ | 3.755/3.770 | 95.38/96.00 | 2.495/2.505 | 63.38/63.63 | 3.775/3.790 | 95.89/96.27 |
| HQ3/HQTT | 3.755/3.770 | 95.38/95.57 | 2.041/2.411 | 60.99/61.24 | 3.775/3.790 | 95.89/96.27 |
| PQ | 4.795/4.815 | 121.80/122.30 | 3.340/3.350 | 84.84/85.09 | 4.820/4.835 | 122.43/122.81 |
| PQ3 | 4.795/4.815 | 121.80/122.30 | 3.265/3.275 | 82.93/83.19 | 4.820/4.835 | 122.43/122.81 |
| HMLC | 3.858 | 98 | 2.5 | 63.5 | 3.878 | 98.5 |
Size Available:
Wireline Series: A, B, N, H, P (Front end & Back end Type)
T Series: T36, T46, T56, T66, T76, T86
WF Series: HWF, PWF, SWF, UWF, ZWF
WT Series: RWT, EWT, AWT, BWT, NWT, HWT (Single Tube/Double Tube)
WG Series: EWG, AWG, BWG, NWG, HWG (Single Tube/Double Tube)
WM Series: EWM, AWM, BWM, NWM
T2/T6 Series: T256, T266, T276, T286, T2101/T676, T686, T6101, T6116,
T6131, T6146, T6H
Others: NMLC, HMLC, LTK48, LTK60, TBW, TNW, ATW, BTW, NTW, AQTK
NXD3, NXC, T6H, SK6L146, TT46, TB56, TS116, CHD101
