Name: 1.5m / 3m Wireline Core Barrel System With Rapid Penetration Rate For Mineral Exploration
Brand: Jiangsu Sinocoredrill Exploration Equipment Co., Ltd
SKU: BQ NQ HQ PQ
Price: 657.00 USD
Availability: InStock

Home Products Wireline Core Barrel

1.5m / 3m Wireline Core Barrel System With Rapid Penetration Rate For Mineral Exploration

Product Details:

Place of Origin:	CHINA
Brand Name:	SINOCOREDRILL
Certification:	ISO9001
Model Number:	BQ NQ HQ PQ

Contact Now

Detailed Product Description

Model:	Core Barrel	Brand:	Sinocoredrill
Material:	Stainless Steel	Standard:	Boart Longyear
Applicable Industries:	Construction Works , Energy & Mining	Origin:	China
Highlight:	1.5m Wireline Core Barrel , Rapid Penetration Rate Wireline Core Barrel , Mineral Exploration Wireline Core Barrel

1.5m/3m Wireline Core Barrel System With Rapid Penetration Rate For Mineral Exploration

Product description:

Core barrel and overshot systems are for collecting core sample during the drilling ingeotechnical and mineral exploration applications.

Sinocoredrill‘s core barrels, overshots and spare parts are available in B, N, H and P size for bothdouble and triple tube, of two standard lengths of 1.5 m/5.0 ft and 3.0 m/10.0 ft, includinghead assembly, inner tube, outer tube, core lifter case, core lifter, stop ring, locking couplingadapter coupling, inner tube stabiliser and landing ring and so on. These products performexcillently well to obtain highest core recovery in wireline drilling.

Features of Core Barrels

1) High penetration rate and high drilling efficiency.
2) High core recovery rate.
3) Long bit life and lower labor intensity.
4) Adopt abrasion resistant material.

Q Series Wireline Double Tube Core Barrels
Size	Hole(mm)	Core(mm)	Head Thread
BQ	59.3	36.2	BQ rod box
NQ	75.2	47.6	NQ rod box
HQ	95.6	63.5	HQ rod box
PQ	122	85	PQ rod box
Q Series Wireline Triple Tube Core Barrels
Size	Hole(mm)	Core(mm)	Head Thread
NQ3	75.2	45	NQ rod box
HQ3	95.6	61	HQ rod box
PQ3	122	83	PQ rod box

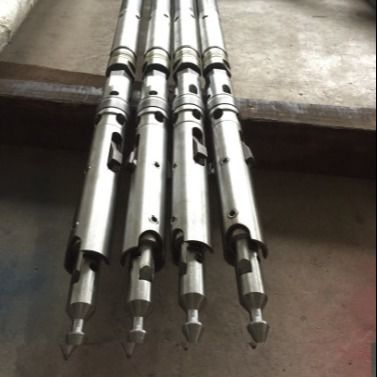

1.5m / 3m Wireline Core Barrel System With Rapid Penetration Rate For Mineral Exploration 0

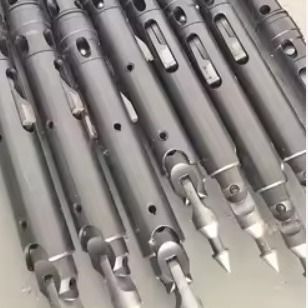

1.5m / 3m Wireline Core Barrel System With Rapid Penetration Rate For Mineral Exploration 1
