BQ NQ HQ PQ Standard Imp Diamond Core Bits With DCDMA Thread For Variety Formations

BQ NQ HQ PQ Standard Imp Diamond Core Bits With DCDMA Thread For Variety  Formations
BQ NQ HQ PQ Standard Imp Diamond Core Bits With DCDMA Thread For Variety  Formations BQ NQ HQ PQ Standard Imp Diamond Core Bits With DCDMA Thread For Variety  Formations BQ NQ HQ PQ Standard Imp Diamond Core Bits With DCDMA Thread For Variety  Formations

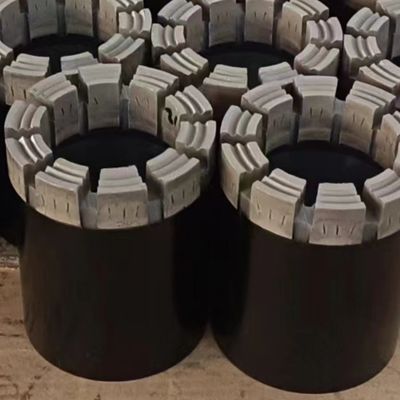

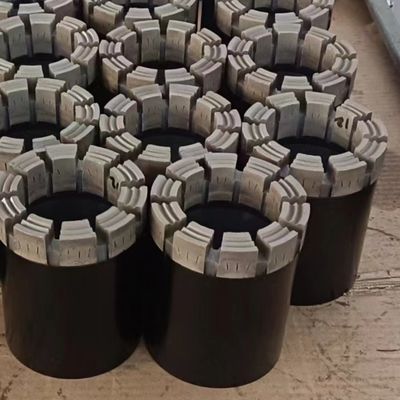

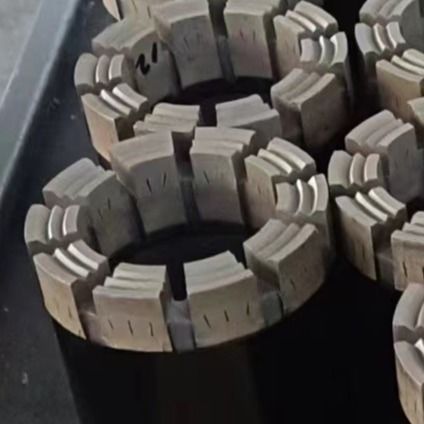

Large Image :  BQ NQ HQ PQ Standard Imp Diamond Core Bits With DCDMA Thread For Variety Formations

Product Details:
Certification: ISO9001
Model Number: BQ NQ HQ PQ

BQ NQ HQ PQ Standard Imp Diamond Core Bits With DCDMA Thread For Variety Formations

Description
Place Of Origin: Wuxi,China Brand Name: Sinocoredrill
Applicable Industries: Energy & Mining Type: Core Drill Bit
Processing Type: Forging MOQ: 1

NQ HQ PQ Standard Imp Diamond Core Bits With DCDMA Thread For Variety Formations



Product description:



Impregnated Diamond Core Bits are produced by very small, carefully selected grades of high quality synthetic diamonds mixed evenly through a metal matrix. Impregnated Diamond Core Bits are attached to the foremost part of the Core barrels to be used in direct drilling of the ground, and play the most important role among the equipments that are used in drilling. Impregnated Diamond Core Bits are normally used in case Core is needed, they are more economical to use than other bits.



Technical parameters:



Common sizes
Core Barrel

Specification
Outside Set Diameter
lnside Set Diameter
Maximum
Minimum
Maximum
Minimum
lnches
mm
lnches
mm
lnches
mm
lnches
mm
AQ
1.88
47.75
1.87
47.5
1.607
27.1
1.057
26.85
BQ
2.35
59.69
2.34
59.44
1.438
1.428
36.52
36.27
NQ
2.97
75.44
2.96
75.19
1.88
47.75
1.87
47.5
HQ
3.77
95.76
3.755
95.38
2.505
63.63
2.495
63.38
PQ
4.815
122.3
4.795
121.8
3.35
85.09
3.34
84.84
T2-101
3.981
101.12
3.971
100.8
3.3
83.82
3.29
83.57
T6-101
3.981
101.12
3.971
100.8
3.115
79.12
3.105
78.87



Features:



NQ HQ PQ q series diamond core bit well drilling for mining hard rock
1.Our impregnated diamond core bits are the most commonly useful in the mineral exploration industry. The carefully selected grades of high quality synthetic diamond are distributed in the depth of impregnated bit's matrix series.

2.The main crown technical parameters of impregnated diamond core bits include diamond grade,size,concentrarion and quality,matrix hardness and crowm shapes. The optimum diamond size, concentration and matrix type are dependent on the hardness and abrasiveness of the formation to be drilled.


3.Our crown height is 15mm,the hardness standards include K3, K5, K7, K9, K11, K13, K18, K20, which can be found in the following detail pages for details

BQ NQ HQ PQ Standard Imp Diamond Core Bits With DCDMA Thread For Variety  Formations 0
