Small Skid Mounted Split Anchor Drilling Rig DTH Hammer Drill Machine

China Small Skid Mounted Split Anchor Drilling Rig DTH Hammer Drill Machine supplier

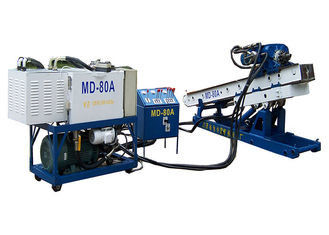

Large Image :  Small Skid Mounted Split Anchor Drilling Rig DTH Hammer Drill Machine

Product Details:

Place of Origin: CHINA
Certification: CE, ISO9001
Model Number: 80A

Payment & Shipping Terms:

Minimum Order Quantity: N/A
Packaging Details: Sea worthy packing
Contact Now
Detailed Product Description
Type: Anchor Drilling Rig Hole Depth: 60-100m
Rod Dia: 110-210mm Power: Motor 30+1.5+0.25
Size: 3400×650×1500mm Weight: 2600KG

Small Skid Mounted Split Anchor Drilling Rig DTH Hammer Drill Machine





Description :





1. MD-80 drilling rig is a kind of full hydraulic power head drilling rig.

2. It is applied to drill heavy duty anchor holes at side slope of water power station, railway or highway projects, to drill drainage holes and It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc. In addition, it is also used to drill high-pressure jet grouting holes.

3.This drilling can be carried out with low manchine weights and in difficult and dangerous on site conditions.

4. The rig is suitable for various drilling methods such as carbide bit drilling, auger drilling, DTH hammer drilling, follow-up casing drilling, etc.







Applications :





1. Anchor holes at side slope of water power station, railway or highway projects, to drill drainage holes and It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc

2. It is also used to drill high-pressure jet grouting holes.





Specification :







Hole depth 60-100m
Rod dia 110-210mm
Hole angle(°) -1-90°
Output rotary speed of power head 16,30,38,55,75,105

Stroke of power head 1800mm
Output torque of power head 4200N.m
Lifting force of power head 65KN
Feeding force of power head 33 kN
Power Electric motor: 30+1.5+0.25
Weight 2600KG
Dimensions (L×W×H) 3400×650×1500mm





Small Skid Mounted Split Anchor Drilling Rig DTH Hammer Drill Machine
