Wireline Diamond rock drilling tools BQ NQ HQ PQ Surface-Set And Imp

Wireline Diamond rock drilling tools BQ NQ HQ PQ Surface-Set And Imp

  • Wireline Diamond rock drilling tools BQ NQ HQ PQ Surface-Set And Imp
  • Wireline Diamond rock drilling tools BQ NQ HQ PQ Surface-Set And Imp
  • Wireline Diamond rock drilling tools BQ NQ HQ PQ Surface-Set And Imp
  • Wireline Diamond rock drilling tools BQ NQ HQ PQ Surface-Set And Imp
Wireline Diamond rock drilling tools BQ NQ HQ PQ Surface-Set And Imp
Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE
Model Number: BWL NWL HWL PWL
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: 30Days
Payment Terms: T/T
Supply Ability: Based on Detailed Order
Contact Now
Detailed Product Description
Features: Natural Or Synthetic Diamond Product Name: Reaming Shells
Machine Type: Drilling Tools Type: Core Drill Bit,Construction Tool Parts
Application: Geological Exploration, Mining Exploration, Hydrogeological Exploration And Oil, Gas, Exploration Model Number: BQ,NQ,HQ,RQ,PQ,T2,T6,146,TT48 Etc
Highlight:

diamond core bit

,

rock drilling tools

Wireline Diamond rock drilling tools BQ NQ HQ PQ Surface-Set And Imp





n Diamond drill bits

n Reaming shells and casing/rod shoes

n Wireline drill rods,

n Core barrels & overshot assemblies

n Hoist plug and water swivels

n Recovery tapes and Casing cutters

n Drill string subs and adaptors

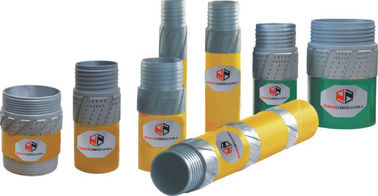

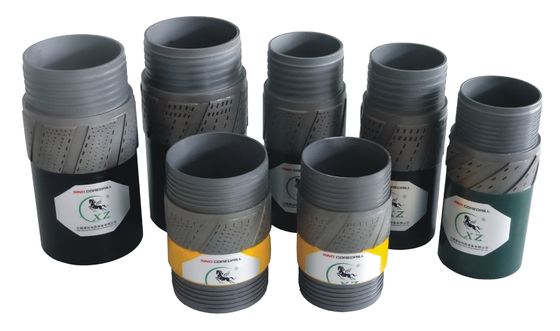

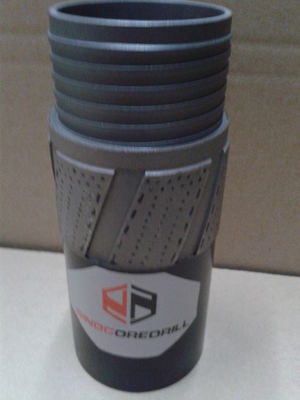

Wireline reaming shell



1. Available in all standard drilling sizes ( B, N, H and P).

2. Combination of natural and synthetic diamonds embedded in sections

3. Ring completely covered with diamonds



Reliable material and advanced technology

REAMER are made with high-quality, synthetic and natural diamonds, embedded in a highly resistant matrix. They have additional protection made from friction-resistant tungsten carbide to maximize lifespan, and their maximum active surface helps to limit deviation.





Optimized choices

Surface set reaming shells in all common DCDMA sizes are a stock item. Impregnated reaming shells and reaming shells in full hole profile are also available, but may require longer lead time.





Size Available:
"Q" Series: AQ, BQ, NQ, HQ, PQ (Front end & Back end Type)
T Series: T36, T46, T56, T66, T76, T86
WF Series: HWF, PWF, SWF, UWF, ZWF
WT Series: RWT, EWT, AWT, BWT, NWT, HWT (Single Tube/Double Tube)
WG Series: EWG, AWG, BWG, NWG, HWG (Single Tube/Double Tube)
WM Series: EWM, AWM, BWM, NWM
T2/T6 Series: T256, T266, T276, T286, T2101/T676, T686, T6101, T6116, T6131, T6146, T6H
Others: NMLC, HMLC, LTK48, LTK60, TBW, TNW, ATW, BTW, NTW, AQTK
NXD3, NXC, T6H, SK6L146, TT46, TB56, TS116, CHD101





Size

Bit

Reaming shell

Casing shoe



O.D.(mm)

I.D.(mm)

O.D.(mm)

O.D.(mm)

I.D.(mm)

AQ/AW

48.00

27.00

48.13

59.69

48.26

BQ/BW

60.00

36.50

60.07

75.44

60.20

NQ/NW

75.70

47.50

75.82

91.95

75.95

HQ/HW

96.00

63.50

96.27

117.60

99.82

PQ/PW

122.60

85.00

122.81

143.76

122.94

ATW

48.00

30.10

48.13



BTW

60.00

42.00

60.07



NTW

75.70

56.00

75.82
