Remote Control with Automatic Wire Rope Organization 2000m Surface Exploration Drilling Rig

Brand Name: SINOCOREDRILL
Model Number: CR15
MOQ: N/A
Price: Based on detailed order
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Wuxi，China
Certification:
ISO9001
Document:
SPECIFICATION OF Surface Co...15.pdf
Model:
CR15
Brand:
SINOCOREDRILL
Max Drilling Capacity:
2050M
Drilling Method:
Surface
Certificate:
CE;ISO9001
Place Of Origin:
WUXI,CHINA
Highlight:

CR15 2050M core drill rig

,

surface core drill rig with remote

,

core drill rig with warranty

Product Description
Remote Control with Automatic Wire Rope Organization 2000m Surface Exploration Drilling Rig
Product Attributes
Attribute Value
Model CR15
Brand SINOCOREDRILL
Max drilling capacity 2050M
Drilling method Surface
Certificate CE; ISO9001
Place of origin WUXI, CHINA
Product Description
The CR15 Full Hydraulic Surface Core Drilling Rig is a top-tier equipment designed for efficient and precise drilling operations. Equipped with state-of-the-art hydraulic systems, it delivers superior power and control for various drilling applications.
Key Features
  • Robust construction for durability in tough drilling conditions
  • Compact design for easy transportation and setup in remote locations
  • Full hydraulic system for smooth operation and precise control
  • Telescopic mast adjustable for drilling depths up to 1500 meters
  • Hydraulic leveling system for stability on uneven terrain
  • Comprehensive safety features including emergency stop buttons and safety interlocks
  • Operator cabin for safe and comfortable working environment
  • Easy maintenance with accessible components
Technical Specifications
Diesel Engine: WP6G240E330 (EU Stage IIIA)/6.7L, 176 kW (240HP) at 2200rpm
Drilling Capacity
Type Capacity
BQ 2050 m
HQ 1350 m
NQ 1650 m
PQ 950 m
Drill Head Specifications
Component Specification
Rotation Motor Two-speed Hydraulic Motor
RPM Three Shifts Step-less Change: 0-1250 RPM
Head Opener 600 MM
Hydraulic Chuck (PQ) Hydraulically opened Axial Holding Capacity of 243000 N
Max. Torque 6200 N*m
Hold Diameter 121 mm
Max. Lifting capacity of Spindle 235 kN
Max. Feeding Power 80 kN
Additional Specifications
Weight: 10.50 ton
Transport Dimensions (L × W × H): 5880×2240×2480mm
Transport Way: Steel Crawler
Product Images

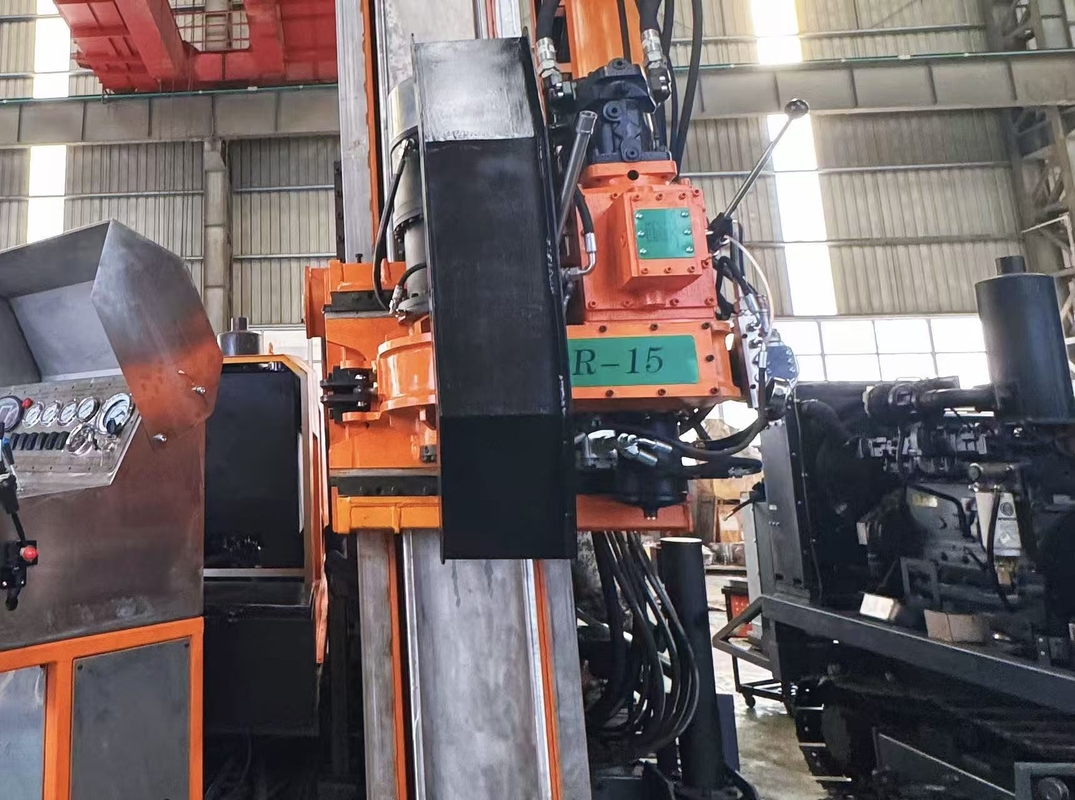

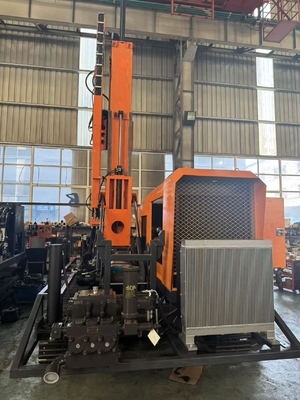

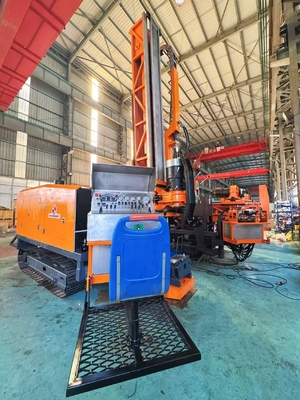

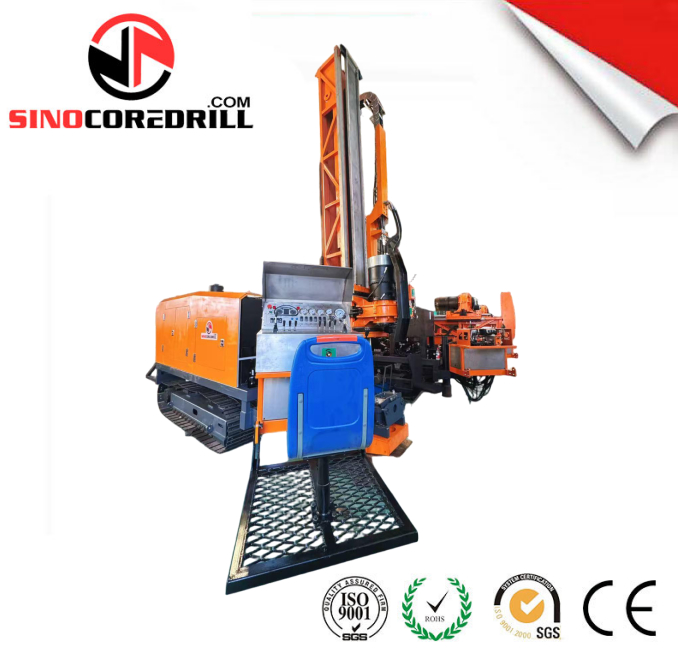

CR15 Full Hydraulic Surface Core Drilling Rig - Front View CR15 Full Hydraulic Surface Core Drilling Rig - Side View CR15 Full Hydraulic Surface Core Drilling Rig - Operational View
