Wireline Drill Rod Manufacturer China for Global Mining Industry

Brand Name:	SINOCOREDRILL
Model Number:	BW NW HW PW HWT
MOQ:	N/A
Packaging Details:	Sea Delivery Package
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Type:

Casing Tube

Length:

3m 1.5m

Standard:

DCDMA

Size:

BW NW HW HWT PW

Name:

Wireline Drill Rod

Brad:

SINOCOREDRILL

Supply Ability:

Based on Detailed Order

Highlight:

Wireline drill rod manufacturer China

Global mining drill rod

Wireline drill rod with warranty

Product Description

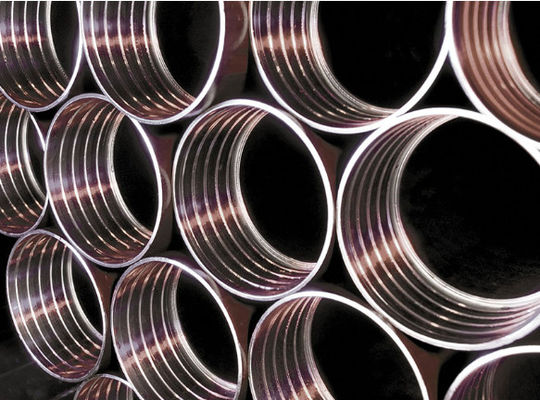

Wireline Drill Rod Manufacturer China for Global Mining Industry

1.Our NW HW PW casing tubes are of the highest quality ,are manufactured to exacting specifications using advancing maching technoogy.

2. They are manufactured from seamless steel tube by cold drawn.The material is XJY850/30CrMnSiA which meets the global standard.

3. Drill rods are made from quality heat treated materials which ensure superior strength, wear resistance and toughness in the most demanding applications

4. Rods and casing are manufactured under stringent industry standards, and are field tested under a variety of conditions.

5. All rods are designed to be compatible with other rods manufactured to the standard DCDMA

W Casing Numbers
Std	OD (mm)	ID (mm)	Wall Thickness (mm)	Thread Pitch (mm)	Pin Thread Length (mm)	Weight (kg/m)
AW	57.20	48.40	4.40	6.35	57.20	5.73
BW	73.00	61.00	6.00	6.35	63.50	10.51
NW	88.90	76.20	6.35	6.35	69.90	12.92
NWA	91.00	80.00	5.50	6.00	72.00	11.59
HW	114.30	101.60	6.35	6.35	76.20	16.90
PW	139.70	127.00	6.35	8.47	82.60	20.87

WT Casing Numbers
Std	OD (mm)	ID (mm)	Wall Thickness (mm)	Thread Pitch (mm)	Pin Thread Length (mm)	Weight (kg/m)
HWT	114.30	101.60	6.35	10.16	62.74	16.90
PWT	139.70	127.00	6.35	10.16	62.74	20.87

Product Overview

Wireline Drill Rod is a critical component in core drilling systems, widely used in mineral exploration, geological drilling, and mining operations. Designed for high efficiency and durability, our drill rods ensure reliable performance in deep hole drilling environments.

Manufactured from premium alloy steel and processed with advanced heat treatment technology, our Wireline Drill Rod delivers excellent wear resistance, high tensile strength, and long service life, making it ideal for demanding drilling projects.

Key Features & Benefits

High Strength Alloy Steel
Ensures superior durability and resistance to deformation
Precision Thread Connection
Improves sealing performance and reduces energy loss
Excellent Wear Resistance
Suitable for harsh geological conditions
Stable Performance in Deep Drilling
Designed for high-depth core drilling applications
Compatible with Standard Sizes
Available in BQ, NQ, HQ and customized options

Why Choose Us

15+ Years Manufacturing Experience in Drilling Tools
Strict Quality Control & 100% Inspection
Competitive Factory Price for Global Buyers
Export to Europe, South America, Middle East
Fast Delivery & Customization Support
