Wireline Drill Rod for Deep Core Drilling in South America Market

Wireline Drill Rod for Deep Core Drilling in South America Market

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE
Model Number: BWL NWL HWL PWL
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

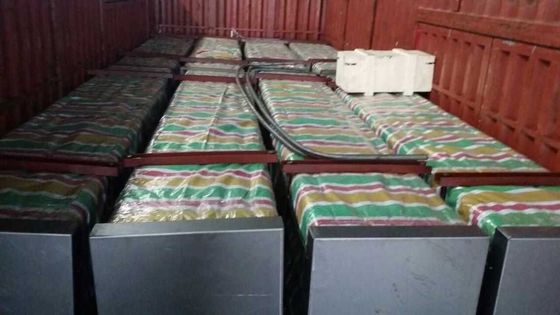

Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T
Supply Ability: Based on Detailed Order
Contact Now
Detailed Product Description
Type: Wireline Core Drilling Rod Length: 3m 1.5m
Size: BWL HWL HWL PWL Material: 30CrMnSia XJY850
HS: 7304512 Application: Mining Exploration
Weight NQ: 24KG Weight HQ: 34KG
Highlight:

Wireline drill rod for deep drilling

,

South America wireline drill rod

,

Core drilling wireline rod



Wireline Drill Rod for Deep Core Drilling in South America Market



Product Description

Our Heavy Duty Wireline Drill Rod is specifically engineered for mining exploration projects in demanding environments such as South America and Africa. Built for high load capacity and extreme durability, this drill rod ensures stable performance even in complex geological formations.

With advanced threading technology and reinforced structure design, our drill rods reduce downtime and increase drilling efficiency, helping contractors maximize productivity.


Key Advantages

  • Reinforced Structure for Heavy Load Drilling

  • High Torque Resistance

  • Long Service Life in Harsh Conditions

  • Reduced Thread Wear & Breakage

  • Optimized for Deep Hole Drilling

Sinocoredrill Drilling Products flush joint casing and drilling rods are recognized worldwide for their quality. Our rods and casing are threaded by
a qualified team with many years of experience in drilling product manufacturing. Each and every rod and casing undergoes strict quality
control throughout the entire manufacturing process.



Size form AQ BQ NQ HQ to PQ, parallel threaded drill rods, DCDMA size AW-HW, and Metric sizes 42mm to 90mm, Tapered threaded drill rods, DCDMA sizes AWY-NWY, AWJ, BWJ and S75 drill rods


Technical Information


Drill Rods


Size OD(mm) ID(mm) Weight Threads Pitch Pin Length
B-WL 55.6 46 18KGS /3m(10ft) 8.5mm 44.45mm
N-WL 69.9 60.3 24KGS /3m(10ft) 8.5mm 44.45mm
H-WL 88.9 77.8 34KGS/3m(10ft) 8.5mm 44.45mm
P-WL 114.3 101.6 53KGS/3m (10ft) 10.2mm 63 mm





Double tube surface
Size(surface exploration drill) Metric system(mm) Imperial system(in)
Hole diameter Core diameter Hole diameter Core diameter
BWL 60 36.4 2.36 1.43
NWL 75.7 47.6 2.98 1.88
HWL 96.1 63.5 3.78 2.5
PWL 122.7 85 4.83 3.34
Triple tube surface
NWL3 75.7 45 2.98 1.78
HWL3 96.1 61.1 3.78 2.41
PWL3 122.7 83 4.83 3.27



WL series Rod parameter-geological steel pipe-entire length thermal treatment, NC lathe with former cutters
Spec. Unit BWL NWL HWL PWL
OD/ID mm 55.6/46 71/60 89/77.8 114.3/101.6
Thickness mm 4.8 5.5 5.6 6.35
Length m 1.5 or 3 1.5 or 3 1.5 or 3 1.5 or 3
Weight kg/m 6.01 8.8 11.51 17.3
thread length mm 44.45 44.45 44.45 63.5
thread pitch thread/inch 3 3 3 2.5
box thread tooth height mm 0.76 0.76 0.76 1.17
pin thread tooth height mm 0.88 0.88 0.88 1.27
thread tooth angle . 29 29 29 29
tensile resistance(A series) kn 400 530 510 565
tensile resistance(B series) kn 450 615 625 660
bore depth m 1200 1000 900 800








Wireline Drill Rod for Deep Core Drilling in South America Market 0

Wireline Drill Rod for Deep Core Drilling in South America Market 1

Wireline Drill Rod for Deep Core Drilling in South America Market 2
