Self-Cleaning Waterway Diamond Core Bit with Optimized Flush Port Design for Clay and Shale Formations BQ NQ HQ

Detail Information

Product Description

Detail Information

Highlight:

self-cleaning diamond core bit

waterway diamond core bit for clay

diamond core bit with flush port

Product Description

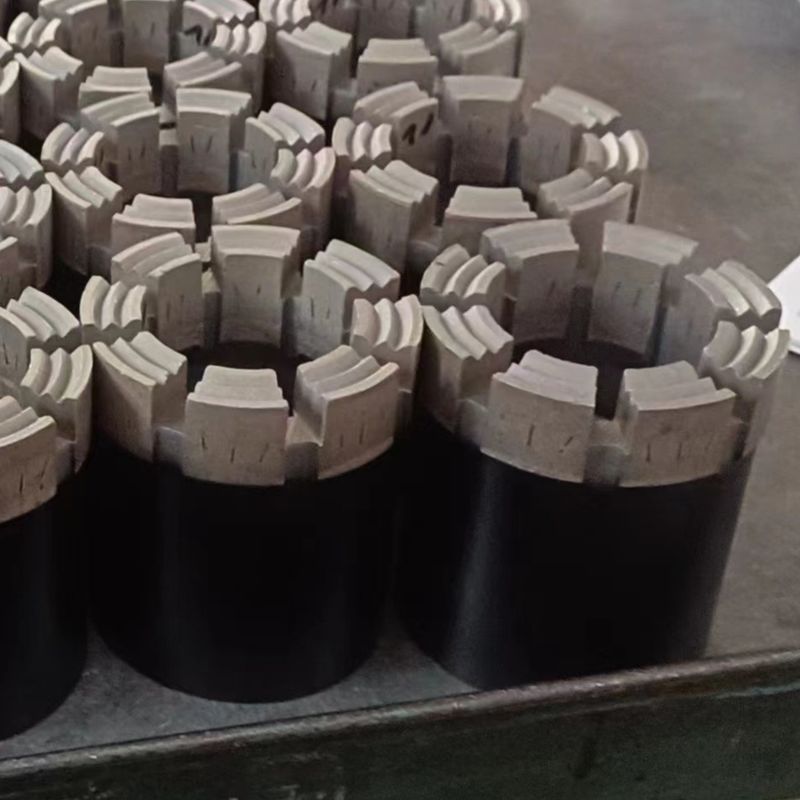

Self-Cleaning Waterway Diamond Core Bit

Eliminate downtime caused by bit clogging with our innovative Self-Cleaning Waterway Diamond Core Bit. Featuring a patented flush port design with enlarged and angled water channels, this bit maintains optimal cutting efficiency in clay-rich formations, shale, and interbedded soft-hard strata where conventional bits struggle.

Key Features

Patented self-cleaning waterway design with 8+ large-capacity angled flush ports
Optimized flush port angles ensure rapid debris evacuation from the bit face
40%+ improved penetration rate in clay, shale and mixed formations
Face discharge turbo crown profile enhances cutting and debris removal
Available in BQ (59.5mm), NQ (75.3mm), and HQ (95.6mm) standard sizes
Prevents bit balling and core blockage in sticky, swelling ground conditions

Applications

Clay-rich and argillaceous formation drilling
Interbedded soft-hard strata exploration
Shale gas and oil formation sampling
Weathered rock and saprolite drilling
Geotechnical investigation in problematic ground conditions
Civil engineering site investigation

Technical Specifications

Parameter	Specification
Waterway Design	Self-Cleaning with 8+ Angled Flush Ports
Crown Profile	Face Discharge Turbo
Available Sizes	BQ NQ HQ
Matrix Hardness	BST 3/5 to BST 7/9
Thread Connection	API Wireline Standard
Diamond Type	Synthetic Industrial Diamond
