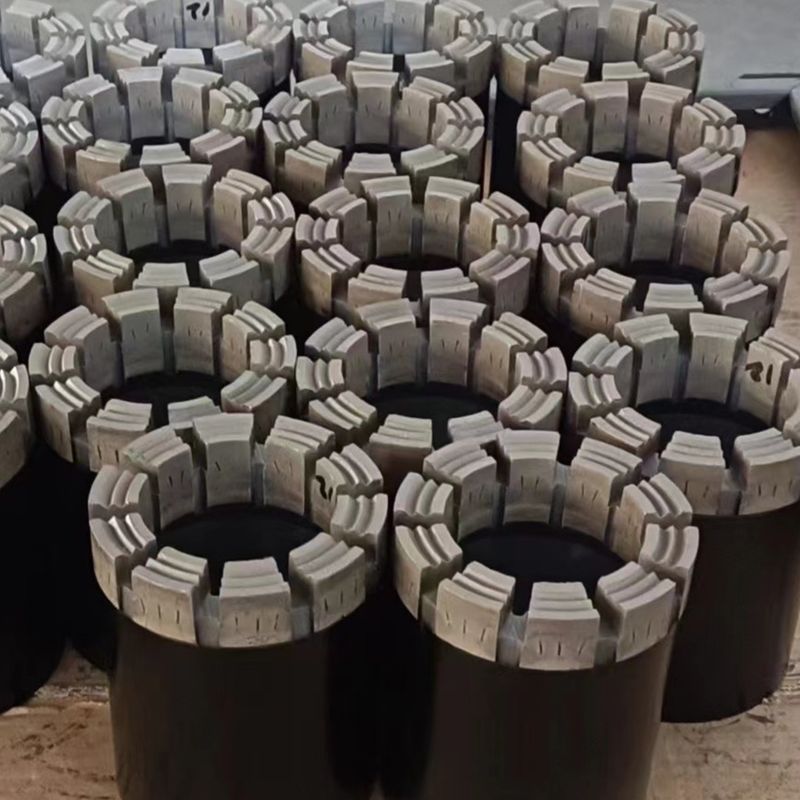

Thin Wall Turbo Diamond Core Bit NTW BTW HTW for Fast Penetration with Larger Core Recovery in Hard Rock

Thin Wall Turbo Diamond Core Bit

Maximize drilling efficiency and core sample quality with our Thin Wall Turbo Diamond Core Bit. The reduced kerf thickness significantly lowers drilling resistance while the turbo crown profile accelerates penetration, resulting in 25-35% faster drilling speeds and larger diameter core samples compared to standard wall bits.

Key Features

• Thin wall kerf design reduces drilling resistance for 25-35% faster penetration rates
• Turbo crown profile enhances cutting efficiency in hard and very hard rock formations
• Larger core diameter recovery compared to standard wall thickness bits of same outer diameter
• Available in NTW (75.3mm OD), BTW (59.8mm OD), and HTW (95.6mm OD) standard sizes
• Wireline compatible design for efficient core retrieval in deep hole applications
• High diamond concentration for extended bit life in abrasive formations

Applications

• Mineral exploration requiring maximum core sample diameter
• Hard rock and very hard rock core sampling programs
• Deep hole diamond drilling in crystalline basement rocks
• Geotechnical site investigation with premium core quality requirements
• Resource evaluation drilling with high recovery rate targets

Technical Specifications
